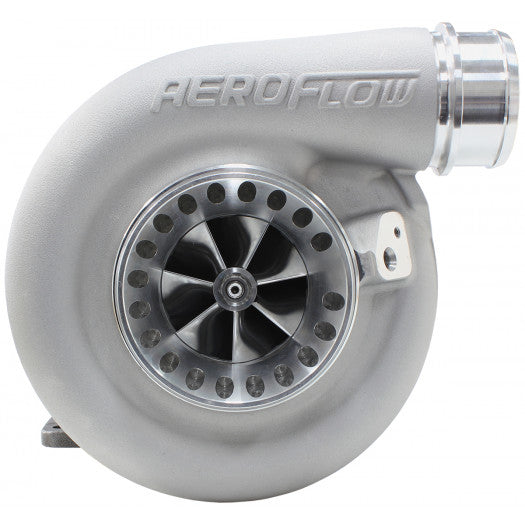

BOOSTED 7575 1.10 T4 TWIN ENTRY V-BAND OUTLET BB S475 NATURAL

BOOSTED 7575 1.10 T4 TWIN ENTRY V-BAND OUTLET BB S475 NATURAL

Regular price
$2,693.08
Sale price
$2,693.08
Regular price
$3,168.33
Sold out
Unit price
per
Tax included.

Recommended horsepower rating: 500-1050HP
Recommended engine displacement: 2.5L to 7L
Dual Ceramic Ball Bearing
This is an oil cooled turbo charger
Billet aluminium 7 + 7 compressor wheel.
Ported shroud compressor housing cover.
Speed sensor port included in compressor cover.
(Sold separately AF8050-1010)
External wastegate sold seperately.
1/4NPT turbo oil feed fitting.
Recommended turbo drain adapter AF463-02 or AF463-06.
All V-band sold seperately
Turbine inlet flange gasket sold separately AF9557-0003

Compressor:

Inducer - 75mm
Exducer - 100.32mm
Extended Tip - 105.9mm
A/R -
Inlet - 5"
Outlet - V Band

Turbine:

Inducer - 83.65mm
Exducer - 75mm
A/R - 1.10
Inlet Flange - T4
Outlet Flange - V Band
Wastegate - External
