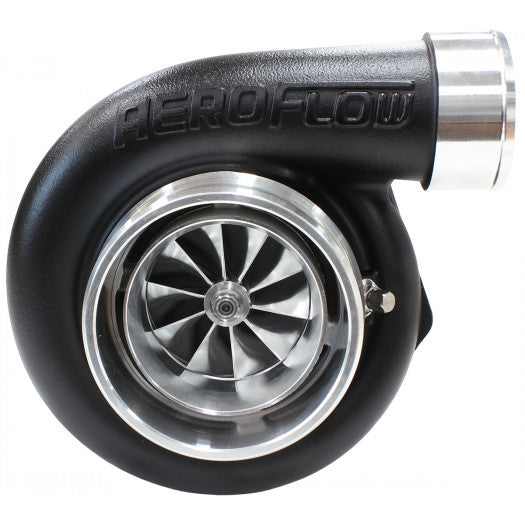

BOOSTED 7588 1.25 BB T4 TWIN ENTRY V-BAND OUTLET BW S475 BLACK

BOOSTED 7588 1.25 BB T4 TWIN ENTRY V-BAND OUTLET BW S475 BLACK

Regular price
$2,760.38
Sale price
$2,760.38
Regular price
$3,247.51
Sold out
Unit price
per
Tax included.

Recommended horsepower rating: 1150-1500HP
Recommended engine displacement: 3L to 7L

• Dual Ceramic Ball Bearing
• This is an oil cooled turbocharger
• Billet aluminium 7 + 7 compressor wheel
• Ported shroud compressor housing cover
• Speed sensor port included in compressor cover (sold separately, AF8050-1010)
• External wastegate sold separately
• 1/4NPT turbo oil feed fitting
• Recommended turbo drain adapter AF463-02 or AF463-06
• V-bands sold separately
• Turbine inlet flange gasket sold separately AF9557-0007
• Optional 1.31 V-band rear housing sold separately AF8050-1002

Compressor
Inducer: 75mm
Exducer: 100.32mm
Extended Tip: 105.9mm
A/R:

Turbine
Inducer: 95.71mm
Exducer: 88mm
A/R: 1.32

Compressor Inlet: 5" Slip fit
Compressor Outlet: V-Band (AF8080-1006)
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1005)
Wastegate: External wastegate
