Recommended horsepower rating: 1000-2500HP
Recommended engine displacement: 3L to 12L
Triple ceramic ball bearing
Billet CNC core
Billet aluminium point milled compressor wheel
Ported shroud compressor housing cover
Speed sensor port included in compressor cover (sold separately, AF8050-1010)
Recommended turbo drain adapter AF463-02 or AF463-06
M18x1.5mm coolant fittings sold separately
External wastegate sold separately
All V-bands sold separately
Turbine inlet gasket sold separately AF9557-0007

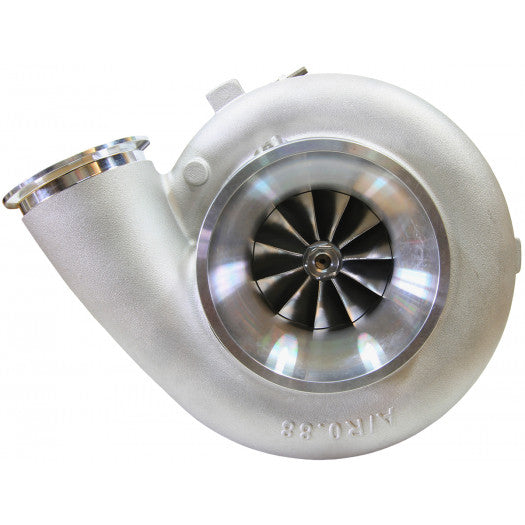

Compressor
Inducer: 94mm
Exducer: 133.8mm
Extended Tip: 138.4mm
A/R: 0.88
Turbine
Inducer: 112mm
Exducer: 103mm
A/R: 1.24
Compressor Inlet: 6" Slip fit
Compressor Outlet: V-Band (AF8080-1007)
Turbine Inlet Flange: T6 Twin Entry
Turbine Outlet Flange: V-Band (AF8080-1008)
Wastegate: External wastegate
