Street performance cams to suit engines with turbo and ECU upgrades. Suits up to 30lb boost and 7500 RPM with our recommended valve spring. Will also drop in on stock spring.
Engine Make: Engine Model: Part Number:

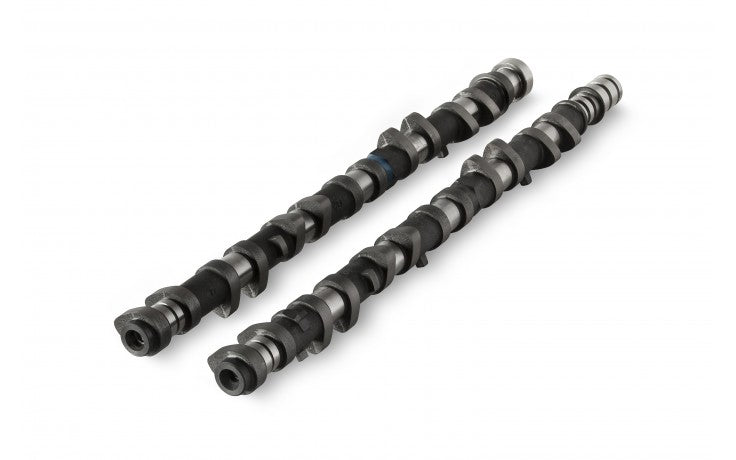

TOYOTA Supra / 2JZ TURBO T202-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
Exhaust: 0.25mm Set COLD at the CAM
Cam Lift: Intake: 9.60mm Exhaust: 9.60mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 9.35mm Exhaust: 9.35mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 222 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 3 BTDC EVO: 47 BBDC
IVC: 39 ABDC EVC: 5 BTDC
Suggested Centre Lines: Intake: 108 Exhaust: 116
VALVE Lift @ TDC Intake: 1.31mm Exhaust: 0.26mm
