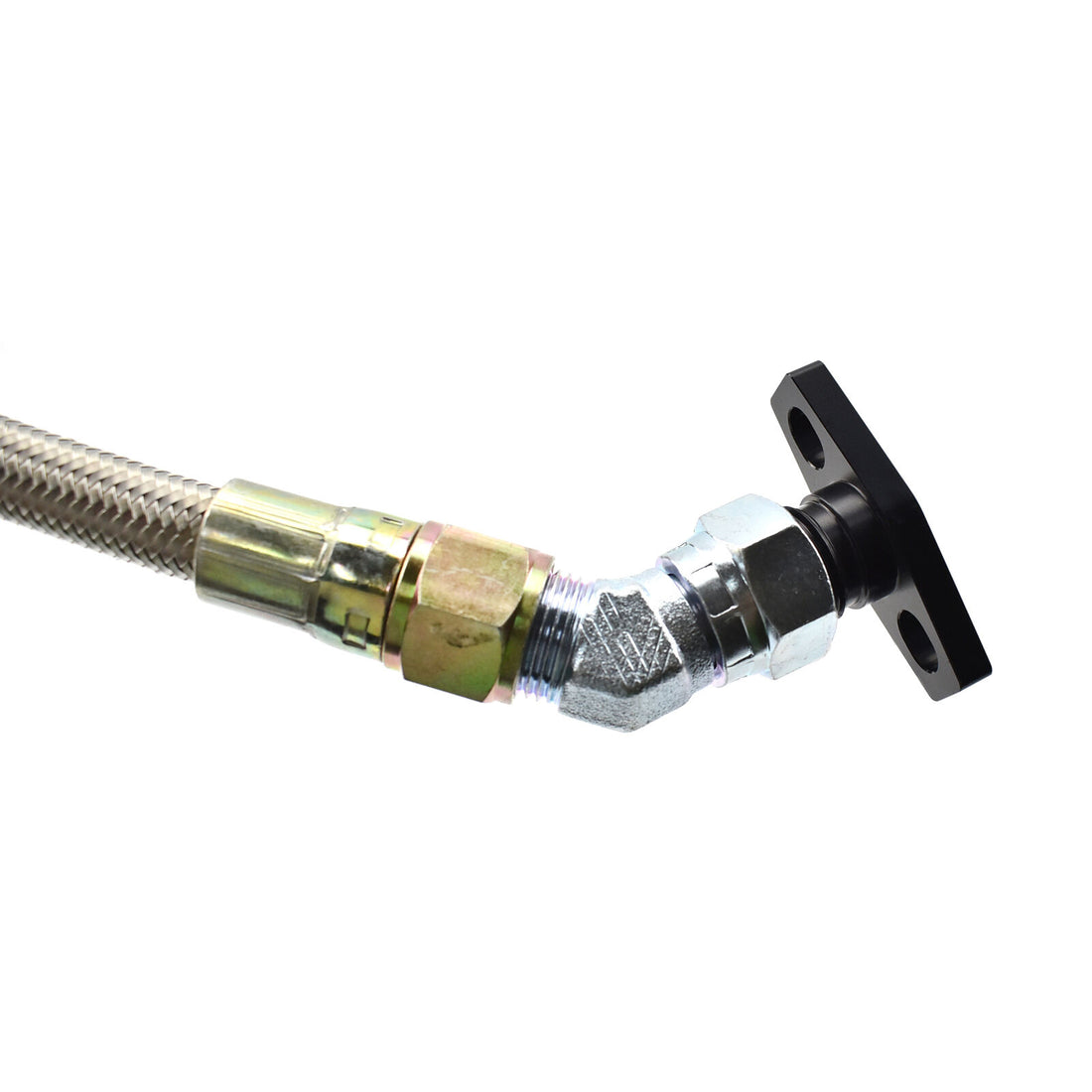

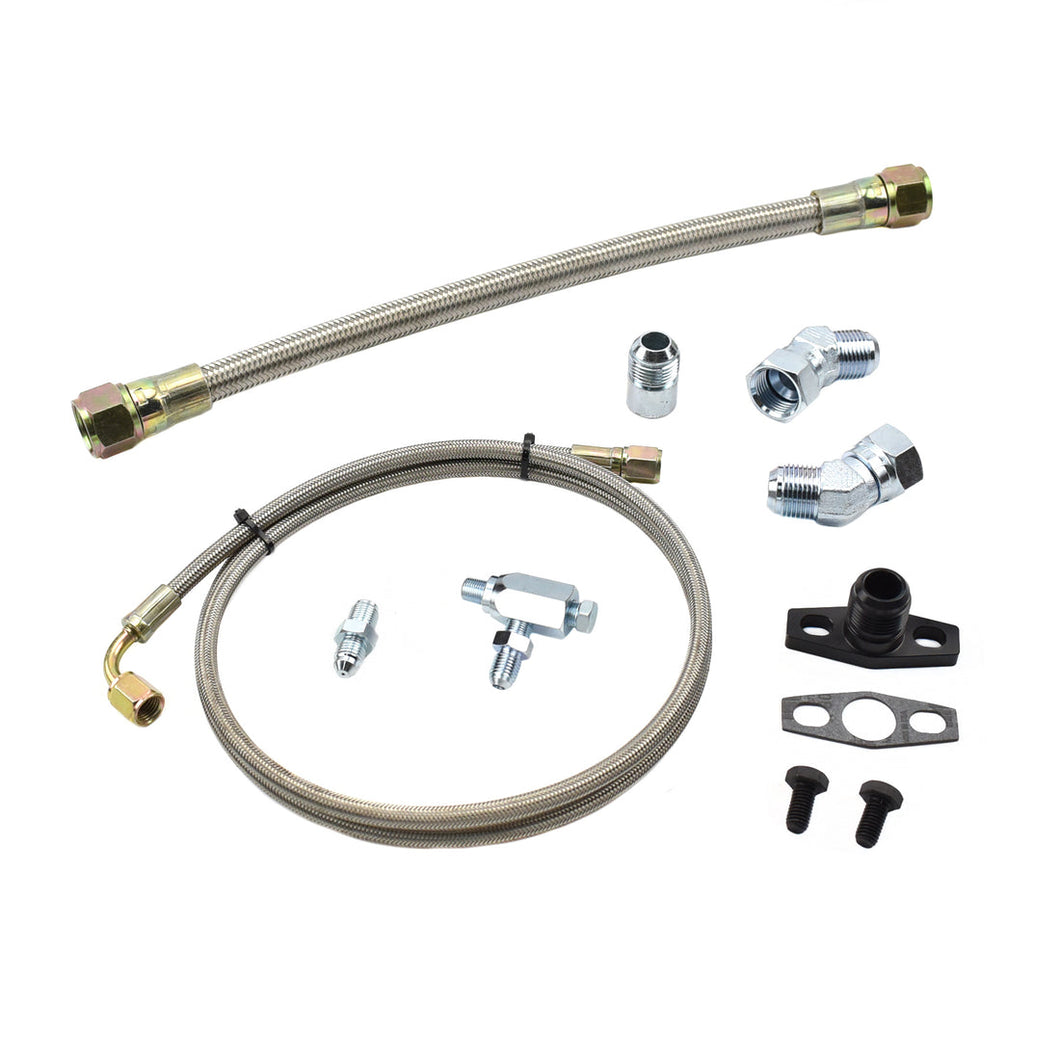

Universal braided turbo oil feed and drain line kit. Oil drain line With -10AN 45 degree swivel fitting so you can aim the 10AN in whatever direction you need. Very convenient.
PRODUCT APPLICATION
Garrett G-Series such as G25-550 G25-660 G30-660 G30-770 G30-900 G35-900 G35-1050 ball bearing turbo.
PRODUCT MATERIAL- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Flange: 6061-T6 aircraft aluminum
- Fitting: Mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

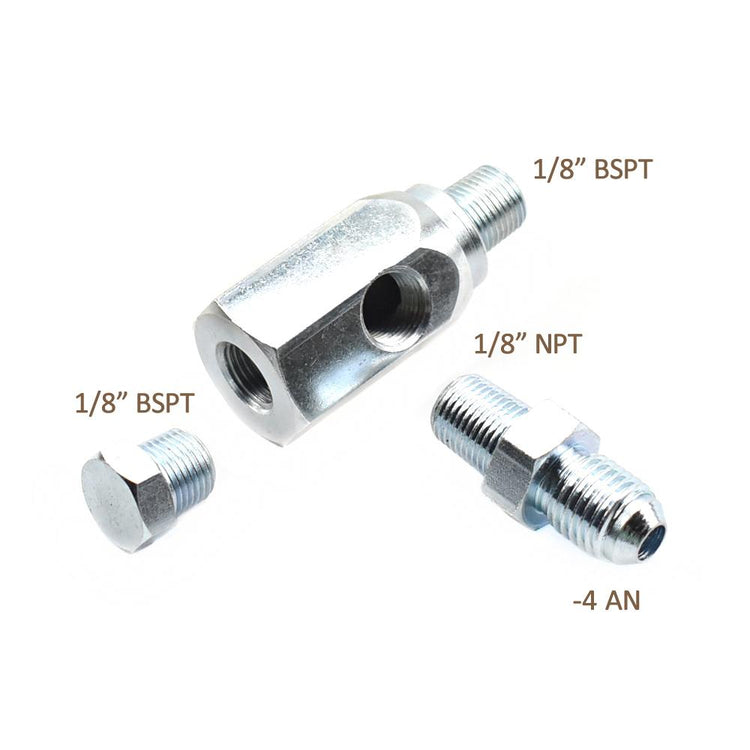

- T-fitting to suit engines with 1/8” BSPT oil pressure switch

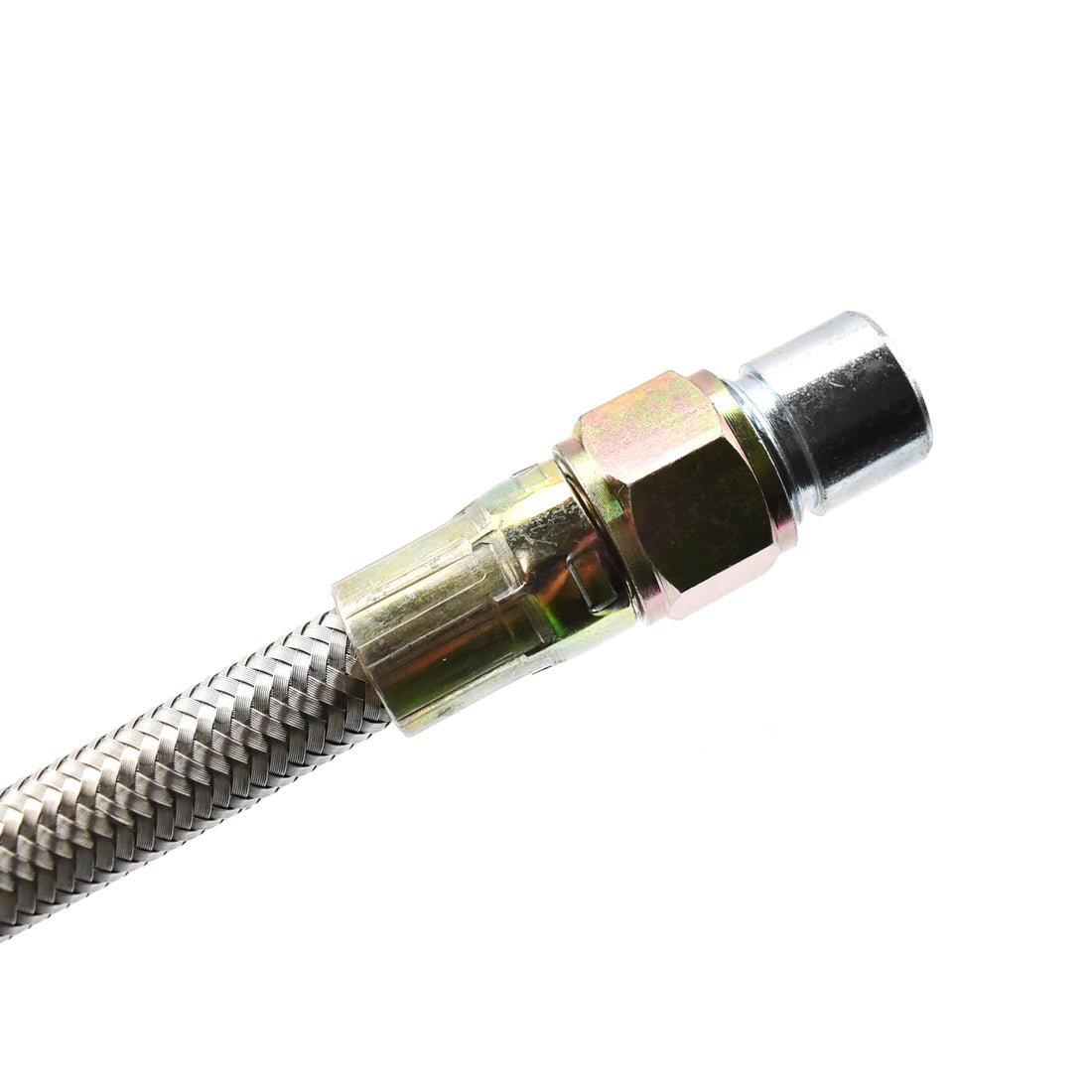

- -4 AN 1/4" Oil feed line 41" long
- -4 AN Oil feed fitting (1.0mm restricted port)
- -10 AN 5/8" Oil drain line 20" long

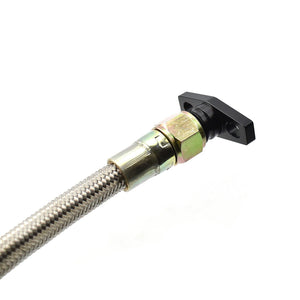

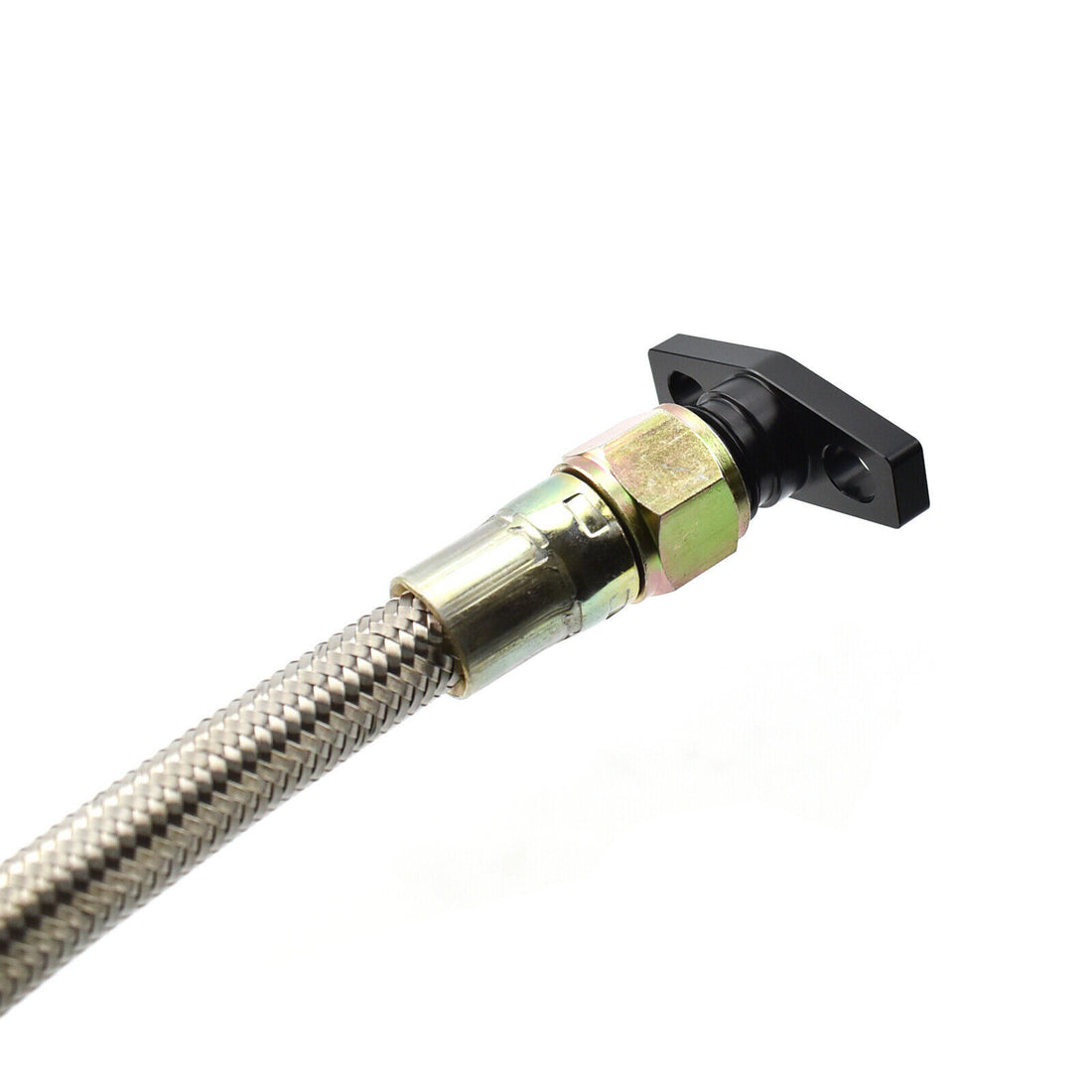

- -10 AN Oil drain flange

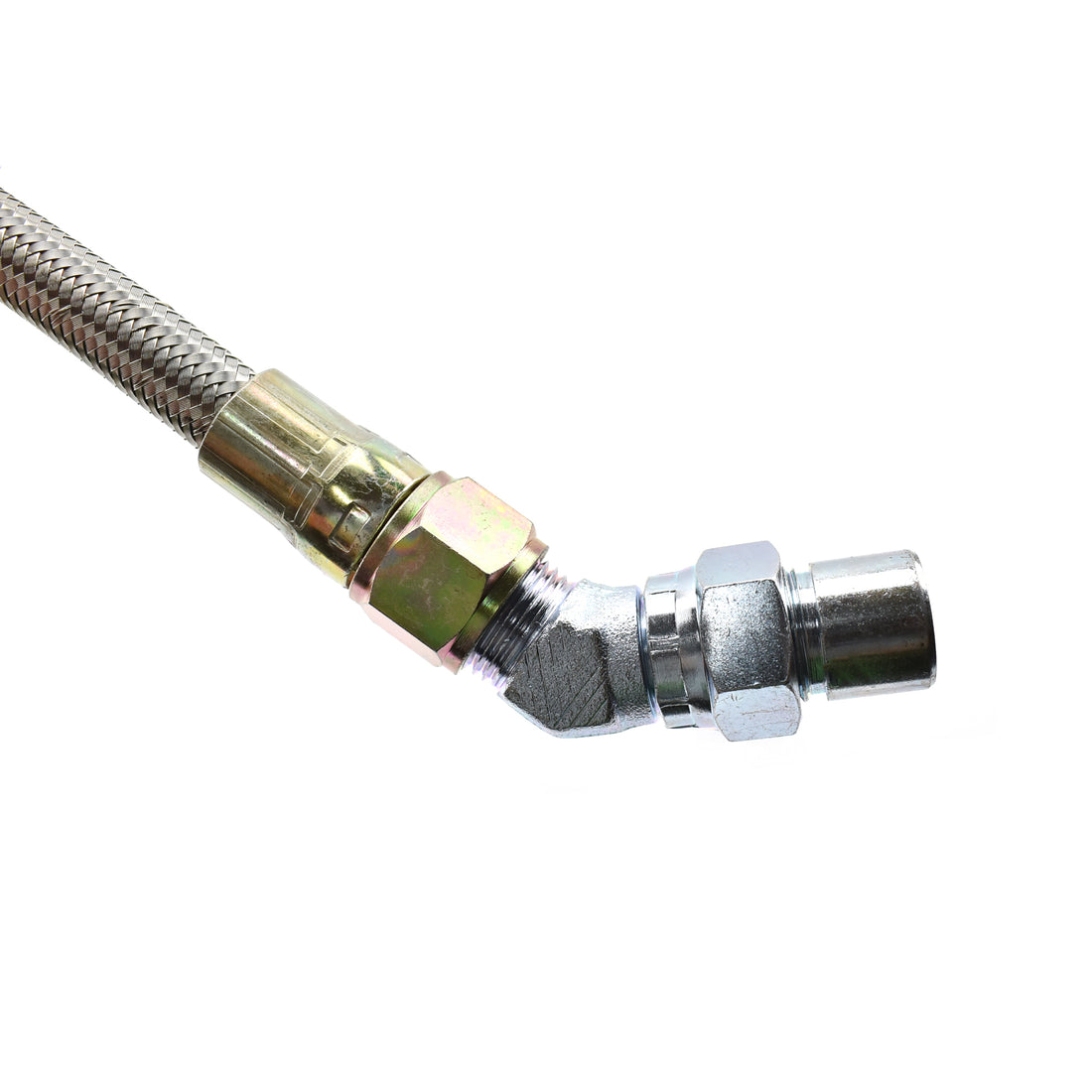

- -10 AN male to female swivel fitting 45 degree
- -10 AN Weld fitting
- Oil drain flange gasket (1mm thickness)
- Bolts
