Turbo Oil Feed Return Line Kit Toyota VVTi 1JZ-GTE with CT15B

Turbo oil feed and return lines. This kit should hopefully save you the bother of sourcing necessary parts for fitting.

PRODUCT APPLICATION

Toyota Cresta Mark II JX100 JZX100 VVTi 1JZ-GTE with Stock CT15B Single Turbo

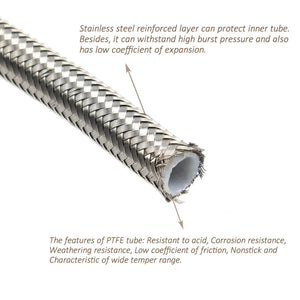

• Oil line: Pre-crimped PTFE Teflon braided stainless steel

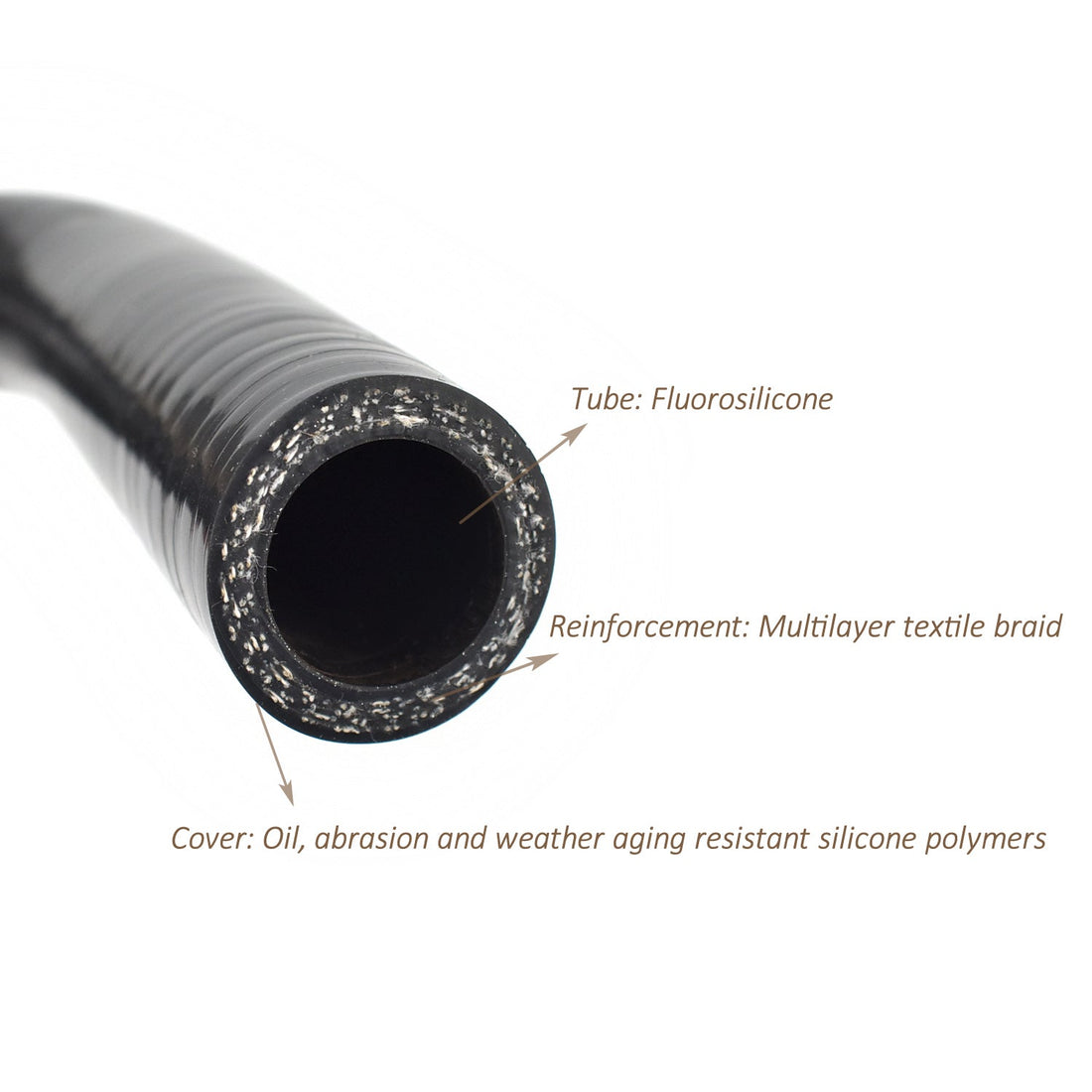

• Oil drain hose: Silicone polymers
• Turbo Flange: electric black medium carbon steel
• Oil Pan Flange: 6061-T6 aircraft aluminum
• Fitting: mild steel
• Gasket: Interface N-8092 Nonasbestos
• Bolts: High tensile class 8.8

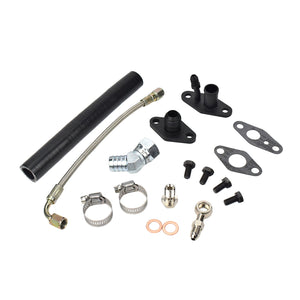

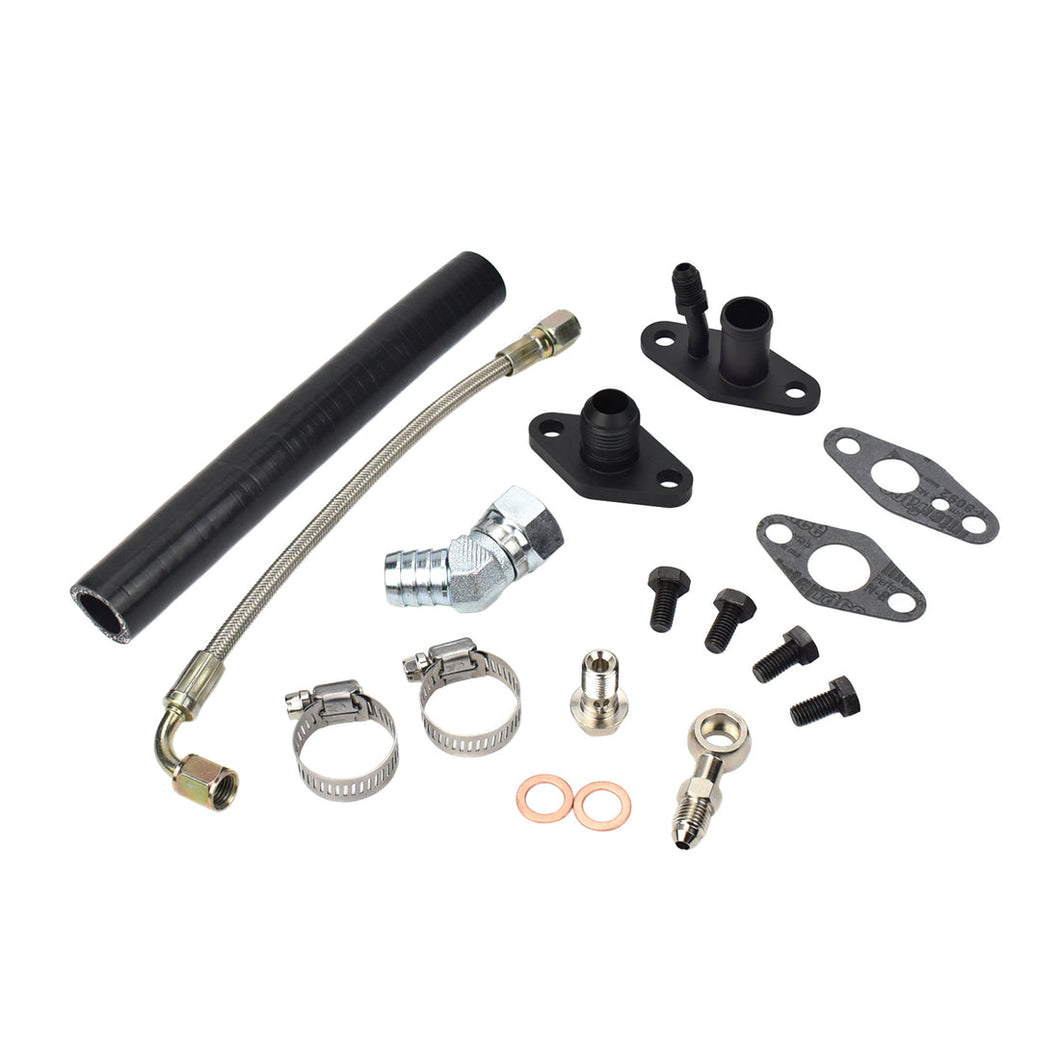

• -4 AN 1/4" Oil feed line
• Oil drain hose
• -4 AN Banjo fitting to engine oil supply
• -4 AN Oil in / 3/4" Barb out flange
• -10 AN Oil drain flange to oil pan
• 45 degree swivel fitting
• Gasket (1mm thickness)
• Bolts
• Clamps
