Recommended horsepower rating: 1200-1600HP
Recommended engine displacement: 3L to 7L
Dual Ceramic Ball Bearing

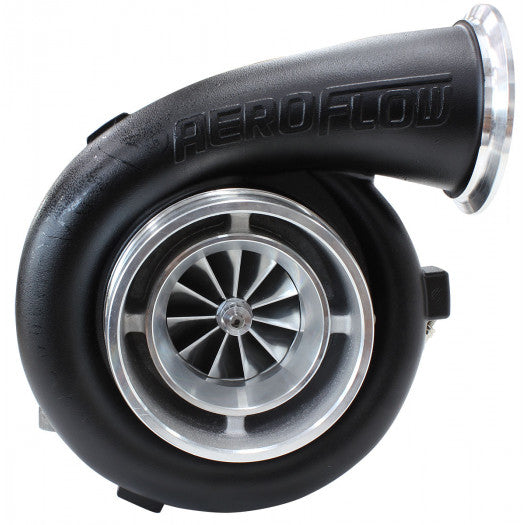

This is an oil cooled turbo charger
Billet aluminium 7 + 7 compressor wheel.
Ported shroud compressor housing cover.
Speed sensor port included in compressor cover.
(Sold separately AF8050-1010)
External wastegate sold seperately.
1/4NPT turbo oil feed fitting.
Recommended turbo drain adapter AF463-02 or AF463-06.
V-band sold seperately
Turbine inlet flange gasket sold separately AF9557-0007
Optional 1.31 V-band rear housing sold separately AF8050-1002
Compressor:
Inducer - 88mm
Exducer - 117.36mm
Extended Tip - 124.4mm
A/R -
Inlet - 5"
Outlet - V Band
Turbine:
Inducer - 95.71mm
Exducer - 88mm
A/R - 1.25
Inlet Flange – T4 Twin Entry
Outlet Flange - V Band
Wastegate - External
