Recommended horsepower rating: 460-850HP
Recommended engine displacement: 2L to 6L
This is a 360o journal bearing turbo.
This is an oil cooled turbocharger.

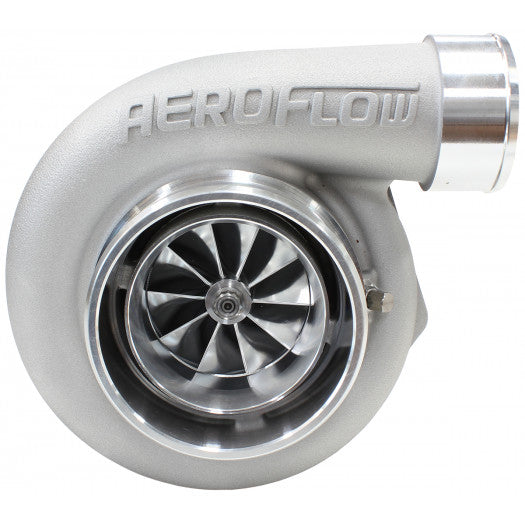

Billet aluminium point milled compressor wheel.
Ported shroud compressor housing cover.
Speed sensor port included in compressor cover.
(Sold separately AF8050-1010)
External wastegate sold seperately.
1/8NPT turbo oil feed fitting or AF463-01 oil feed plate.
Recommended turbo drain adapter AF463-02 or AF463-06.
Turbine outlet flange V-band sold seperately AF8080-1003
.81 V-band rear housing optional AF8050-1003
Turbine inlet gasket sold seperately AF9557-0006
Compressor:
Inducer - 67.4mm
Exducer - 82mm
Extended Tip - 88.3mm
A/R - .60
Inlet - 4"
Outlet - 2.5"
Turbine:
Inducer - 74mm
Exducer - 66.1mm
A/R - .96
Inlet Flange - T4
Outlet Flange - V Band
Wastegate - External
