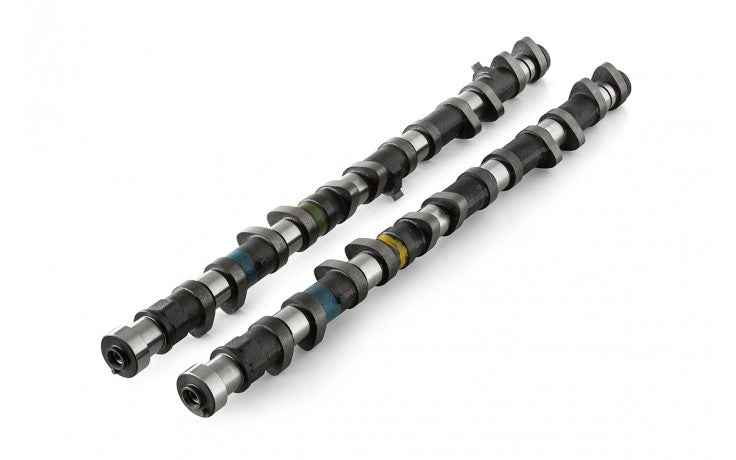

High performance street cams for a near stock engine to suit up to 30 lb boost and 7000 RPM with our recommended valve spring. Will suit stock valve spring with stock redline.
Engine Make: Engine Model: Part Number:
TOYOTA 1JZ VVTi V229-A
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
Exhaust: 0.25mm Set COLD at the CAM
Cam Lift: Intake: 8.95mm Exhaust: 8.95mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 8.70mm Exhaust: 8.70mm
Advertised Duration @ 0.10mm Intake: 248 Exhaust: 248
Duration @ 1.00mm VALVE LIFT Intake: 210 Exhaust: 210
Timing @ 1.00mm VALVE LIFT IVO: 4 ATDC EVO: 44 BBDC
IVC: 34 ABDC EVC: 14 BTDC
Suggested Centre Lines: Intake: Vari Exhaust: 116
VALVE Lift @ TDC Intake: 0.68mm Exhaust: 0.06mm
