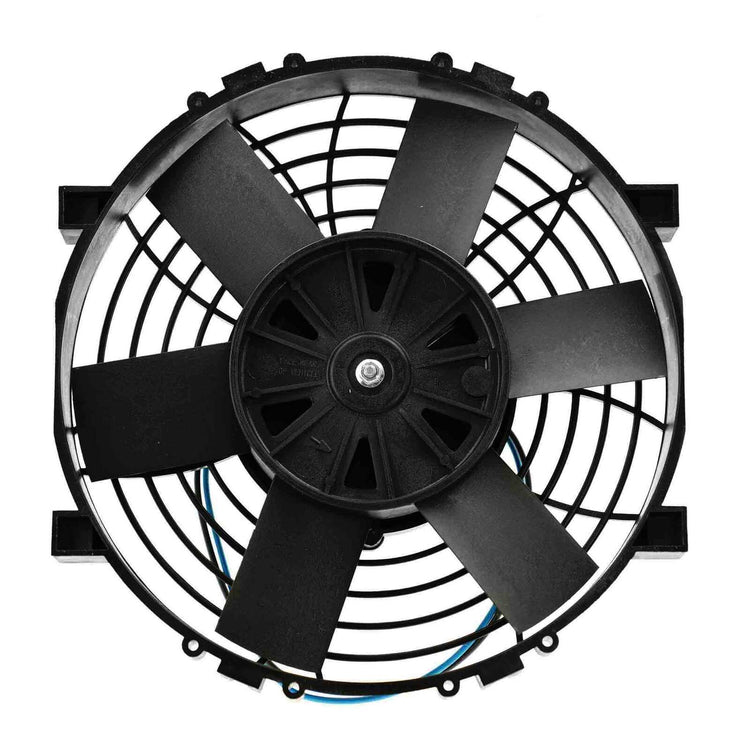

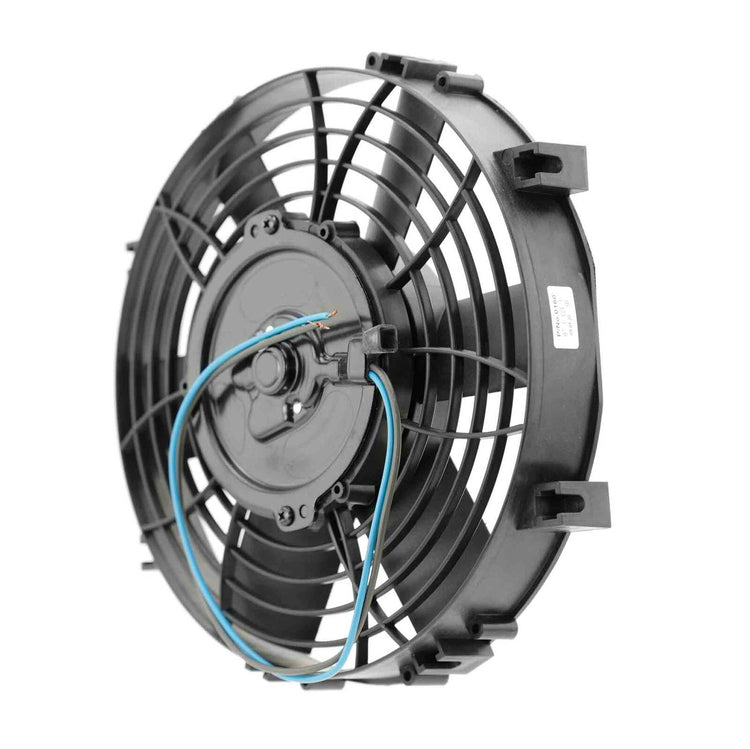

Davies Craig Universal Davies Craig Fan 09" Fan Skew Blade Pull 12V (591CFM) (55mm Deep)

09" Fan Skew Blade Pull 12V (591CFM) (55mm Deep)

PRODUCT DETAILS

• Straight blade design
• Reversible fan blades/polarity for Push or Pull operation
• 12 Volt
• 2 Year warranty

• 100% designed & manufactured in Australia
• Part# DCSL09


PWR are a supplier of Davies Craig thermo fans to the automotive industry. These first-class products complement our range for a cooling solution perfectly tailored to the correct application.

PWR can custom make to your requirements. Please let us know if you would like thermo fan mounts, fan shroud, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 07 55 471 600 or email info@pwr.com.au for a quote.

SPECIFICATIONS

• Davies Craig Fan

• 9"

• 55mm Deep

• 591CFM

• Straight Blade

• Brushed Motor

WHAT'S INCLUDED

• 1 x Davies Craig Thermo Fan


COMPATIBILITY

• Universal


PWR are a supplier of Maradyne thermo fans to the automotive industry. These first-class products complement our range for a cooling solution perfectly tailored to the correct application.

ADDITIONAL ITEMS:

• SKU: TFS133 - Thermo Switch 90C On / 85C Off (2 wires) M16 x 1.5 Thread - Price: $94.00
• SKU: TFS156 - Thermo Switch 85C On / 80C Off (2wires) M16 x 1.5 Thread - Price: $98.00

ADDITIONAL INFORMATION:

All Davies Craig Thermatic Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).

A Davies Craig Thermatic Fan is suitable for both condenser and radiator cooling. Thermatic Fans provide; Constant air flow, increased fuel economy, air conditioning performance, cooler engine running, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.

These fan assemblies are set up for upstream applications. For downstream applications the fan blade must be removed and turned over and the polarity reversed.

Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection, and prior to fastening the unit to the radiator.
