This is a total replacement for the factory line and filter that is notoriously known for causing turbo failures. The factory filter near the oil pressure sensor is prone to blocking, and the hard line is prone to clogging up with burnt oil. Replaces the factory line with a new oil filter line located in front of the engine that can be easily pulled apart and cleaned.
PRODUCT APPLICATION
Ford Terriotry Ghia SX SY 245T with Garrett GT3576R GT3582R GT3584R turbocharger
PRODUCT FEATURES

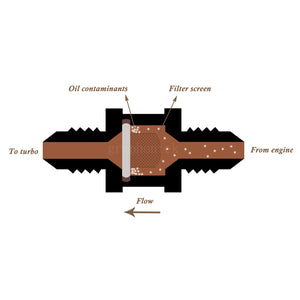

This product utilizes a 400 mesh "bucket" conical-shaped screen filter element which has more surface area to filter than competitors’ “flat” styled filters. The conical-style filter provides more area for trapping actual debris and debris particles will move down to the bottom outer edge of the filter which leaves the rest of the filter free from debris build up. So, will not compromising the screen’s flow rate nor negatively affects the oil pressure as it enters the feed line.
PRODUCT MATERIAL
- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Fitting: mild steel
- Filter housing & fitting: 6061-T6 aircraft aluminum
- Filter screen: Stainless steel
- O-Ring: Nitrile rubber N70(Black)、VT75(Brown)

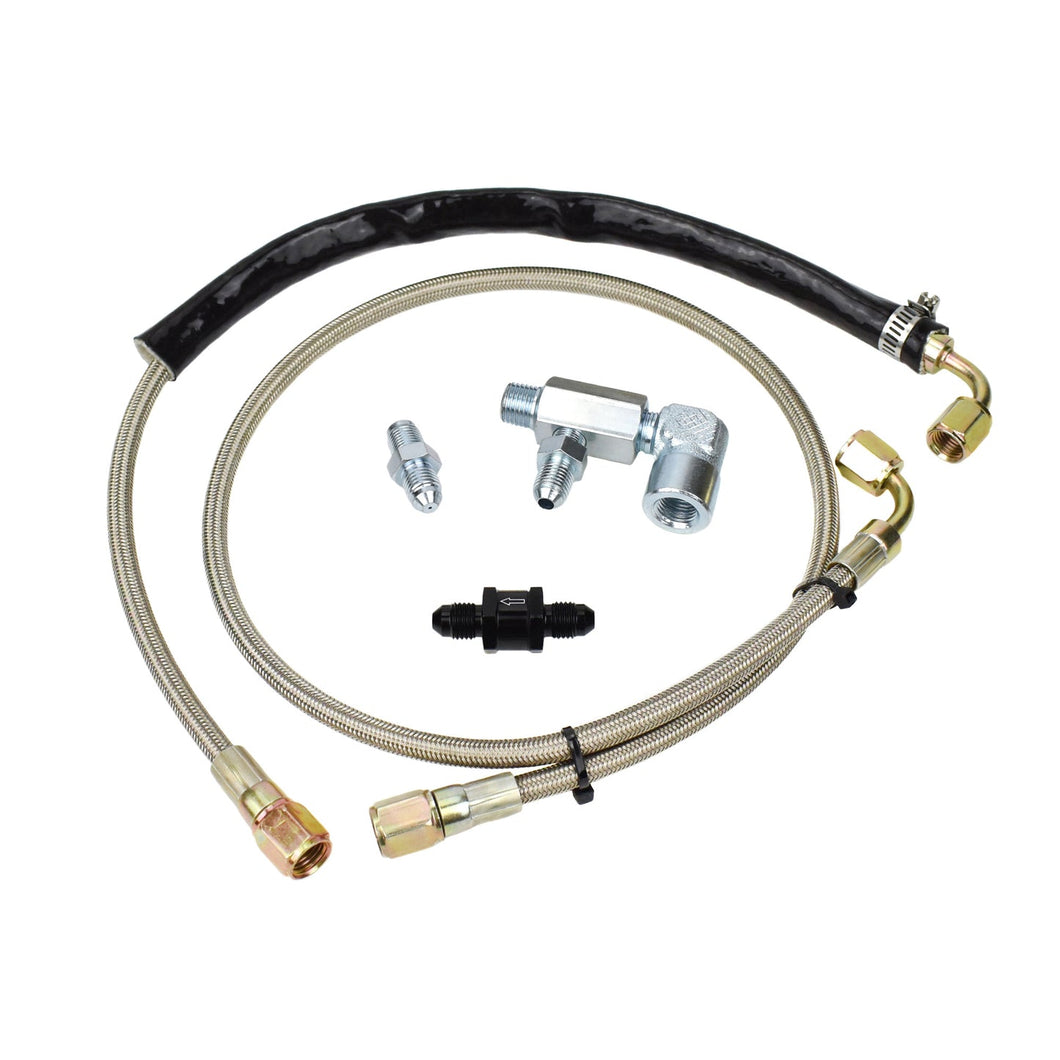

KIT INCLUDES
- -4 AN 1/4" Oil feed line

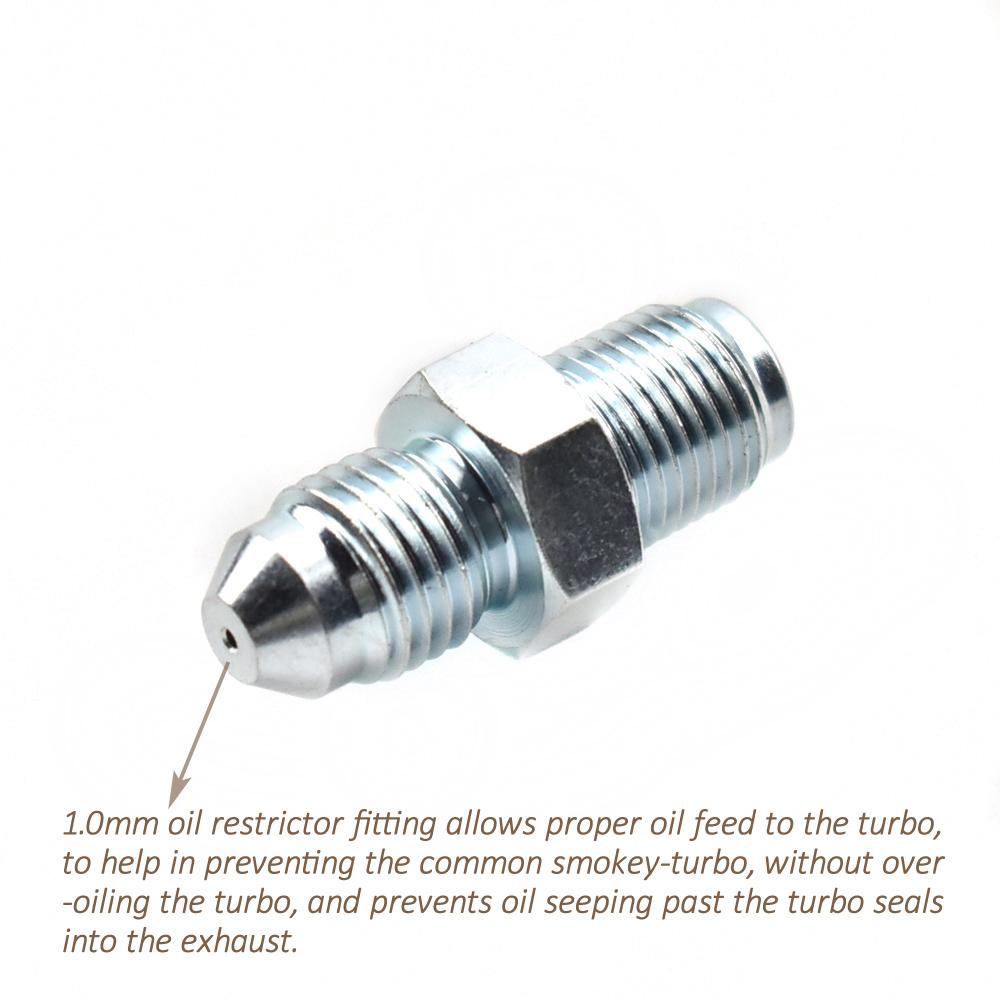

- -4 AN Oil feed fitting (1.0mm restricted port)

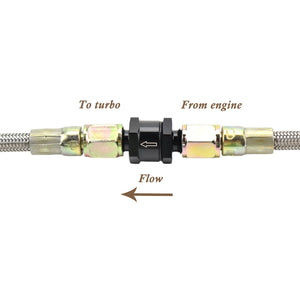

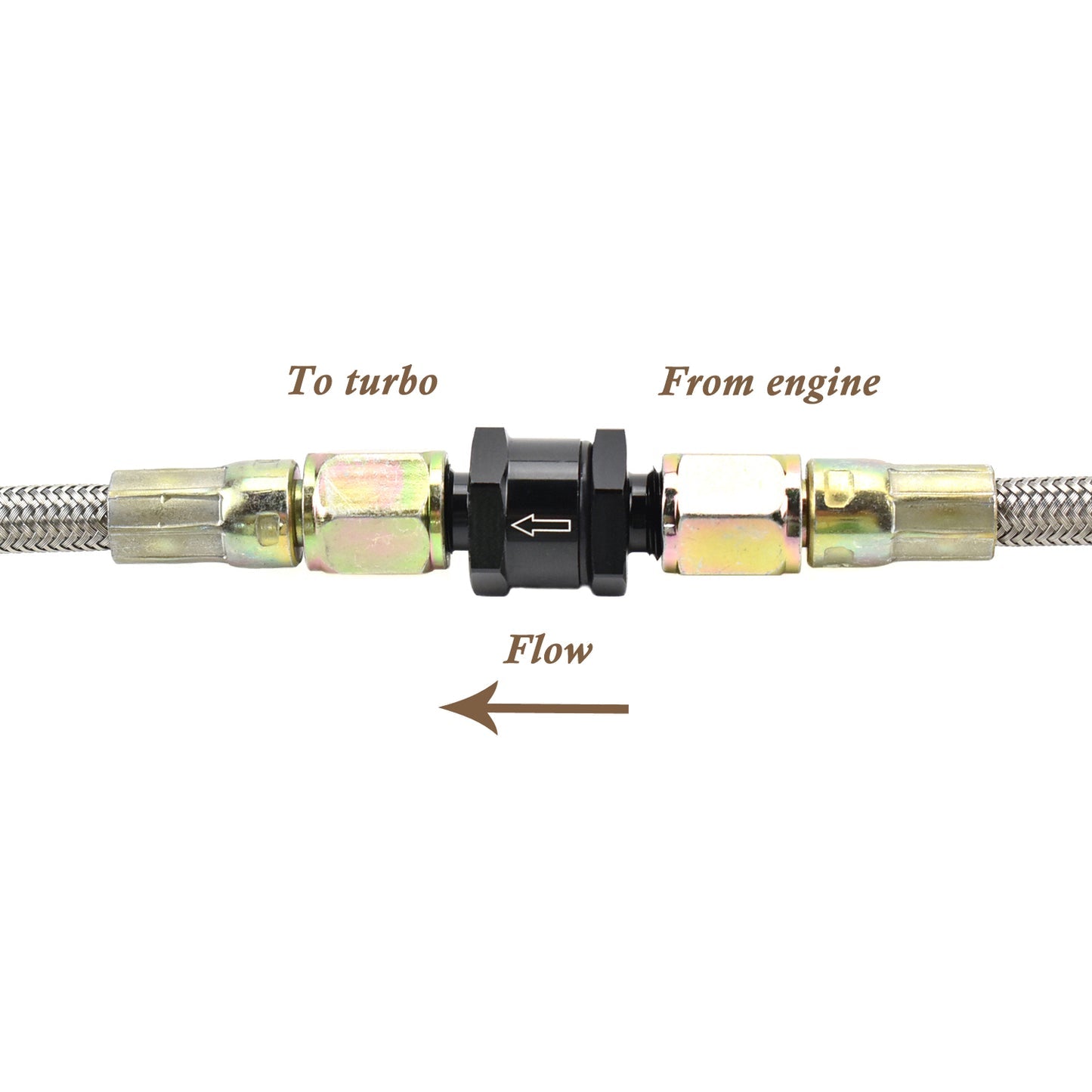

- -4 AN Oil filter

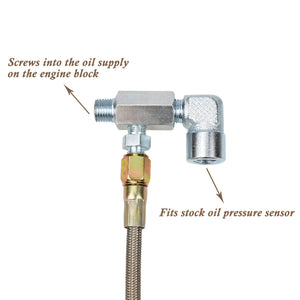

- T-Fitting to adapt the factory pressure sensor
