The stock line has an o-ring seal that allows adjustment in both directions. After hundreds of heat cycles, the o-ring cooks itself and starts to leak oil onto the turbo. This kit fixes the current stock oil line leak that happens when the line gets too hot, too many times.
PRODUCT APPLICATION

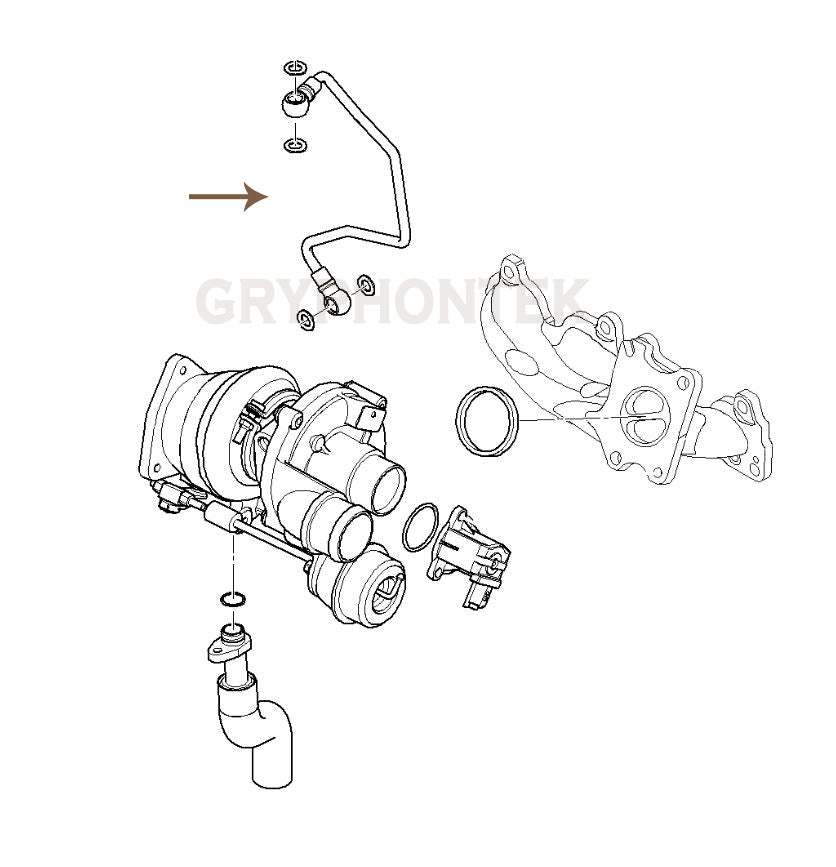

Fits all MINI Cooper S cars that currently come with a turbo in the "R" car line, with the N14 or N18 motors, "JCW" or "S."
- Replace OE number: 11657534454
- Turbo OE number: 11657565912, 11657575653, 11657583149, 11657595351, 11657595678, 11657600881, 11657600890, 11657636576, 11657647003, 11657649496
- Turbo part number: 5303-970-0146, 5303-970-0163, 5303-970-0181, 5303-970-0298
PRODUCT MATERIAL
- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Fitting: mild steel

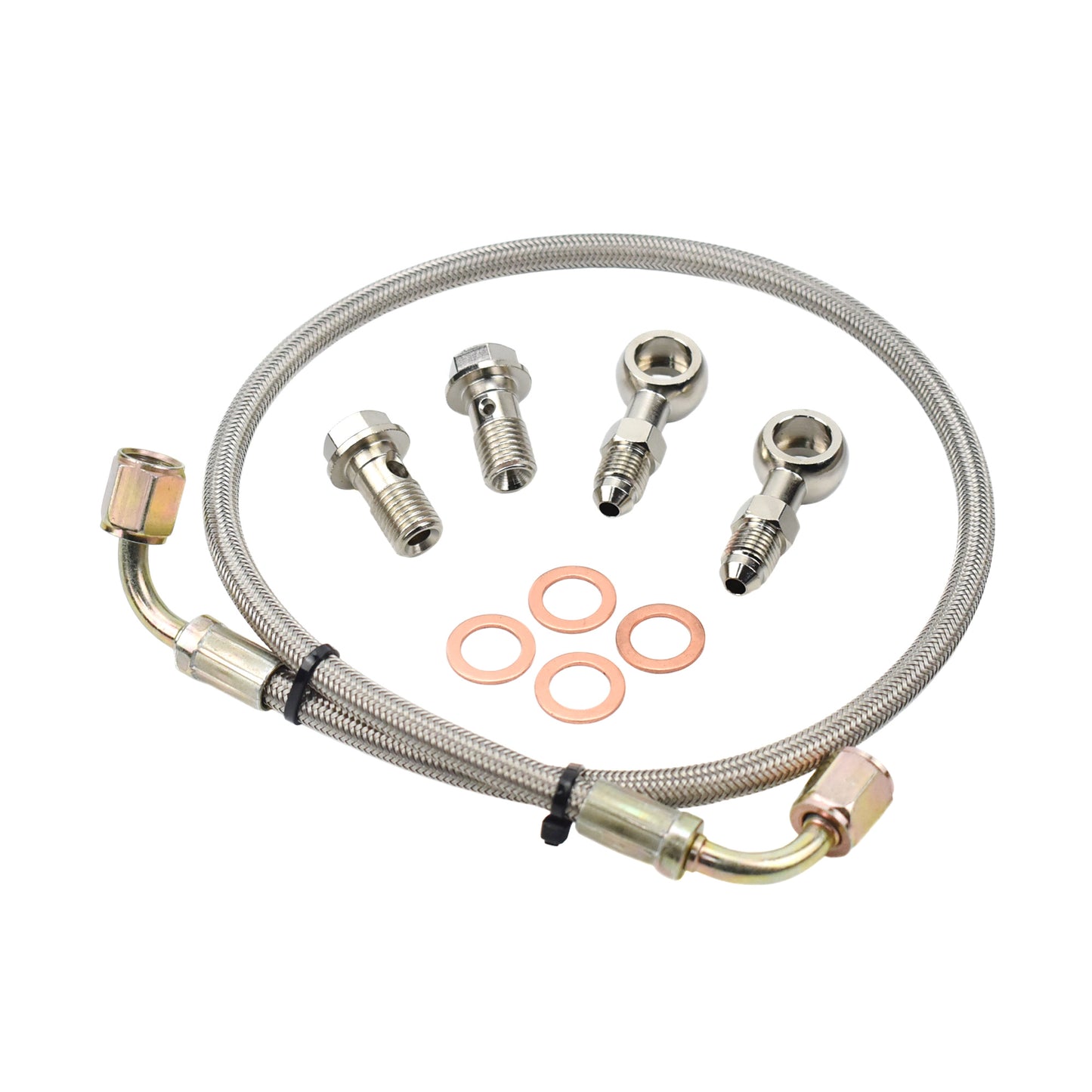

KIT INCLUDES
- 1x -4AN 1/4" Oil feed line
- 2x Banjo eye fitting
- 1x Banjo bolt (1.8mm restricted port)
- 1x Banjo bolt (no restricted port)
- 4x Copper crush washer (1mm thickness)
