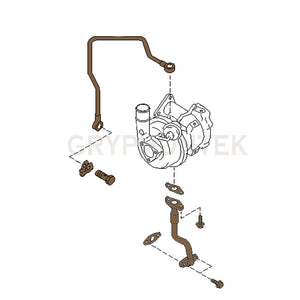

Turbo oil feed and return line to replace stock rigid line.
PRODUCT APPLICATION
Nissan Navara D22 ZD30DDT 3.0L Diesel engine
Suitable for the above engine equipped with stock turbo:
- Genuine (OEM) Part Number: Nissan 14411-9S000 / 14411-9S00A / 14411-9S002
- Alternative / Previous Part Numbers: HT12-19B / HT12-19D 047-229 / 047-663, 047-282 / 1047282
- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: Hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

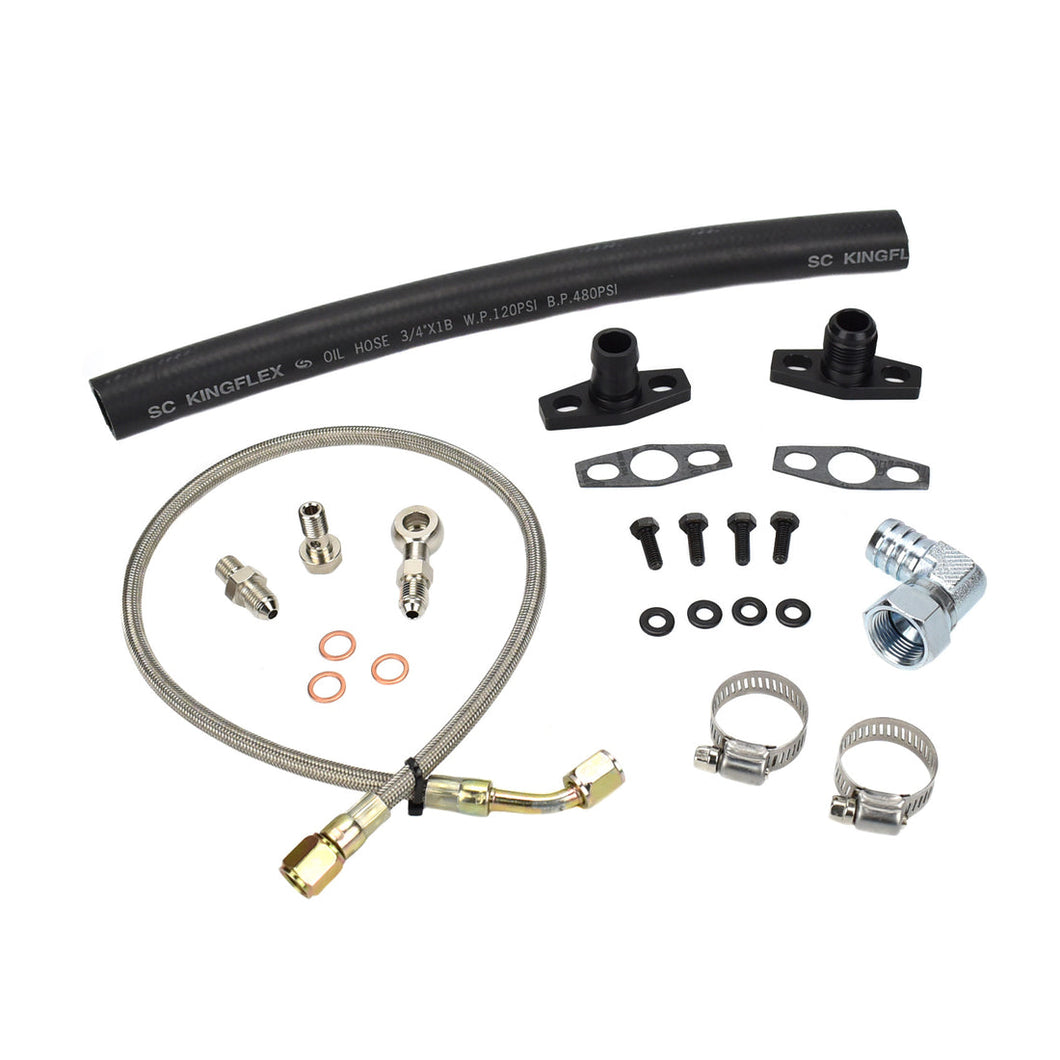

- -4 AN 1/4" Oil feed line
- -4 AN Oil feed fitting (1.8mm restricted port)
- -4 AN Oil banjo eye and bolt to engine oil supply
- Copper crush washer (1mm thickness)
- Oil drain hose
- Oil drain flange - turbo side
- Oil drain flange - engine side
- Oil drain gasket (1mm thickness)
- 90 degree swivel fitting
- Clamps
- Bolts
