Turbo oil feed and return line kit for Toyota 2RZ 3RZ N/A engine to turbo.
PRODUCT APPLICATION
Toyota 2RZ-FE 3RZ-FE N/A engine with Precision PTE 5852 5858 6262 6466 6766 turbo

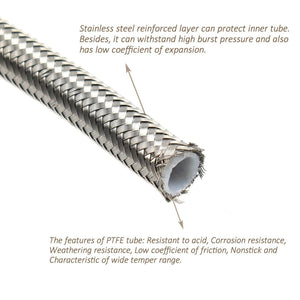

PRODUCT MATERIAL- Oil feed line: Pre-crimped PTFE Teflon braided stainless steel

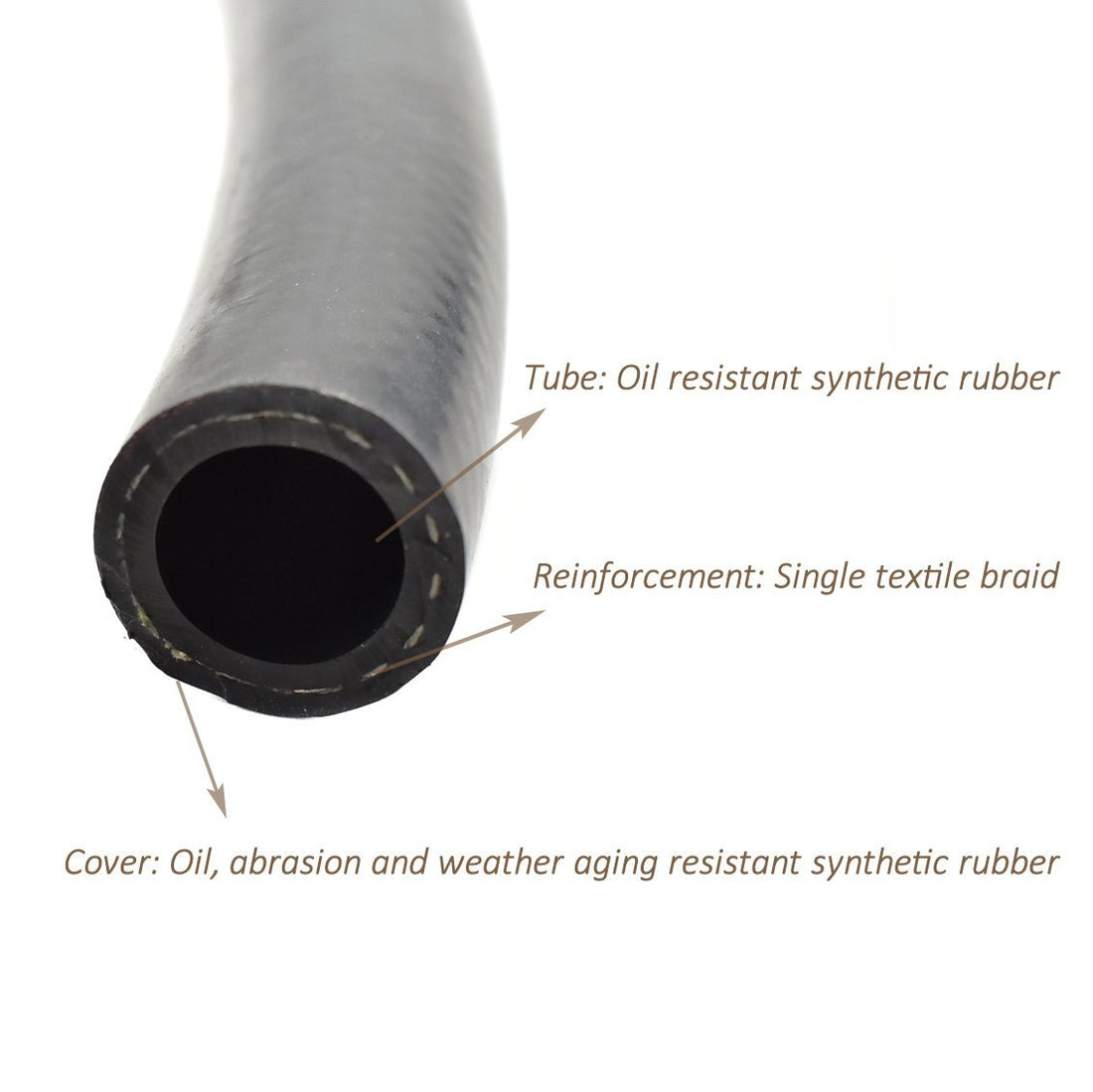

- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

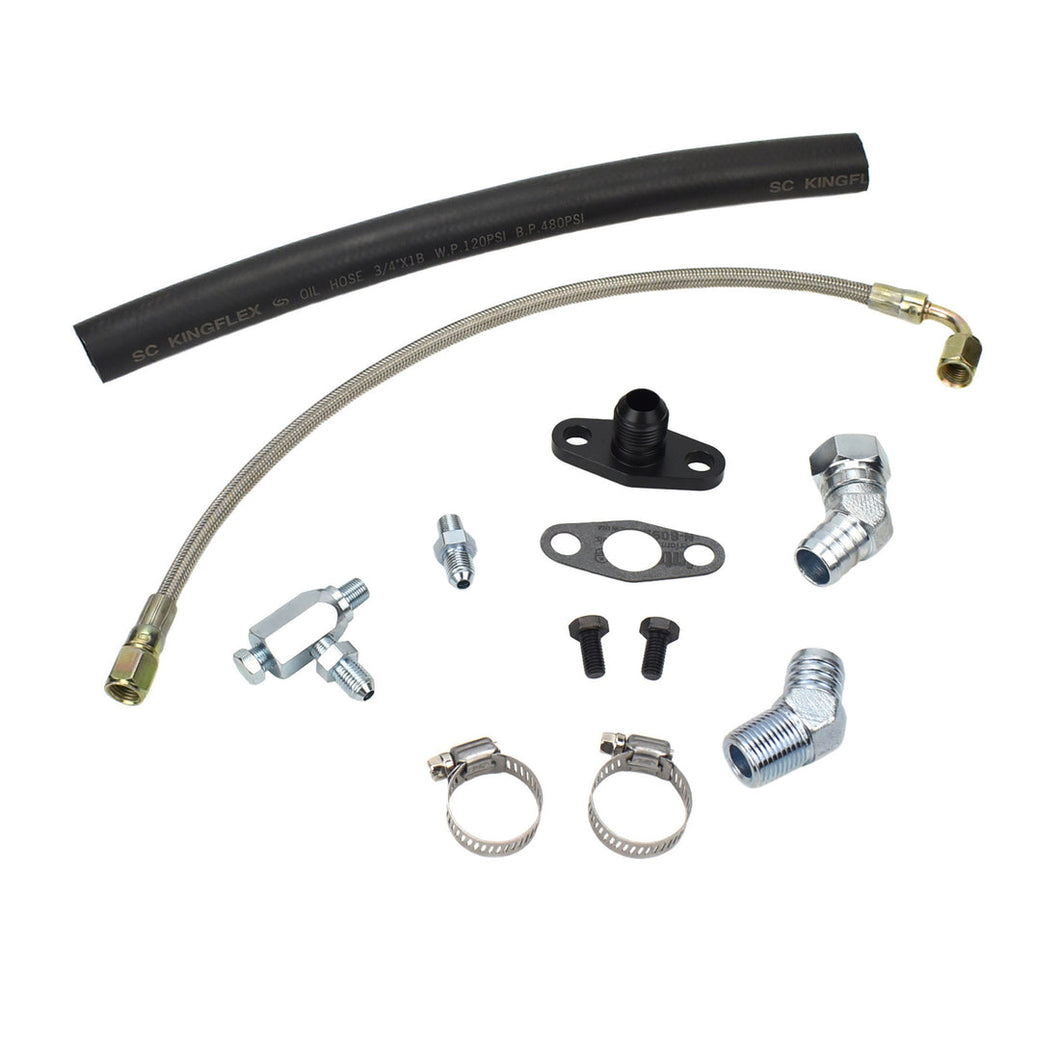

- -4 AN 1/4" Oil feed line
- -4 AN Oil feed fitting (no restricted port)
- T-Fitting
- Oil drain hose
- Oil drain flange
- Oil drain flange gasket (1mm thickness)
- 45 degree swivel fitting
- 45 degree elbow fitting
- Bolts
- Clamps
