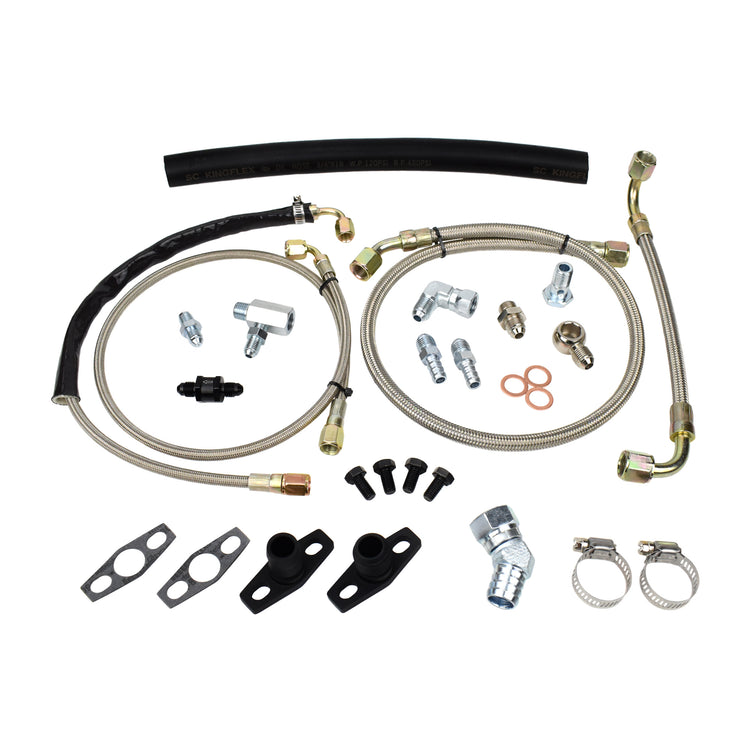

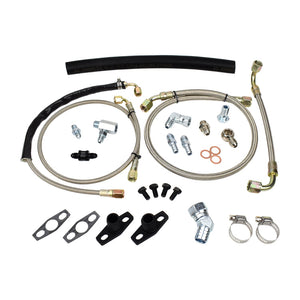

This is a total replacement for the factory oil and water lines.
PRODUCT APPLICATION
Ford Falcon XR6 BA/BF Barra 240T 245T 270T with Garrett GT3576R GT3582R GTX3584RS turbocharger
NOTE: Does not fit XR6 FG F6
PRODUCT FEATURES

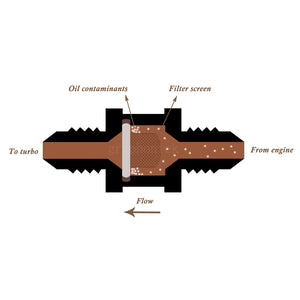

This product utilizes a 400 mesh "bucket" conical-shaped screen filter element which has more surface area to filter than competitors’ “flat” styled filters. The conical-style filter provides more area for trapping actual debris and debris particles will move down to the bottom outer edge of the filter which leaves the rest of the filter free from debris build up. So, will not compromising the screen’s flow rate nor negatively affects the oil pressure as it enters the feed line.
PRODUCT MATERIAL- Oil & water lines: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8
- Filter housing & fitting: 6061-T6 aircraft aluminum
- Filter screen: Stainless steel
- O-Ring: Nitrile rubber N70(Black)、VT75(Brown)
- -4 AN 1/4" Oil feed line

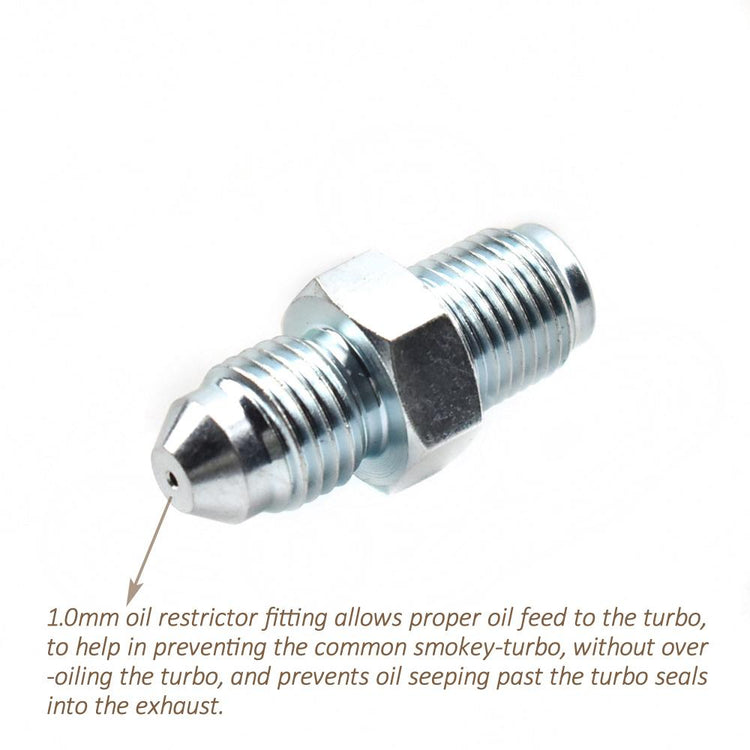

- -4 AN Oil feed fitting (1.0mm restricted port)

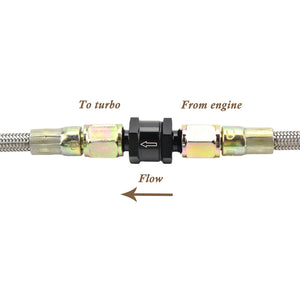

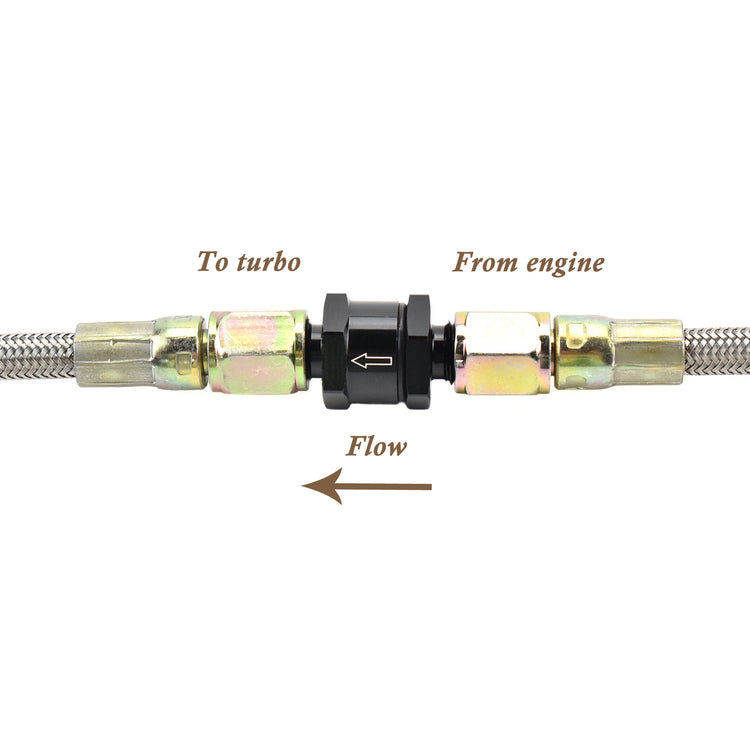

- -4 AN Oil filter

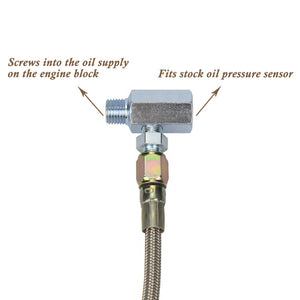

- T-Fitting to adapt the factory pressure sensor
- Oil drain hose
- Oil drain flange - turbo side
- Oil drain flange - engine side
- Oil drain gasket (1mm thickness)
- 45 degree swivel fitting
- Clamps
- Bolts
- -6 AN 3/8" Water lines
- -6 AN Water banjo eye bolt and adapter fitting to turbo
- -6 AN Water fittings to engine side
- Copper crush washer (1mm thickness)
