Turbo oil feed line and water lines replace stock line. This kit should hopefully save you the bother of sourcing necessary parts for fitting.
PRODUCT APPLICATION
Fits Mazda Bravo B2500 / Ford Courier WL-T 2.5L with IHI RHF5 VJ25 VJ26 VJ33 turbo
- IHI turbo number: VI430089, VE430090, VD430090, VC430090, VC430089, VB430090, VB430089, VB40013, VA430090, VA430089
- Turbo OE number: WL84-13-700B, WL85-13-700, WL85-13-700A, WL-84, WL-85, WL84, WL85, WL85A, WL85C, XN349G348AB
PRODUCT MATERIAL
- Oil & water line: Pre-crimped PTFE Teflon braided stainless steel

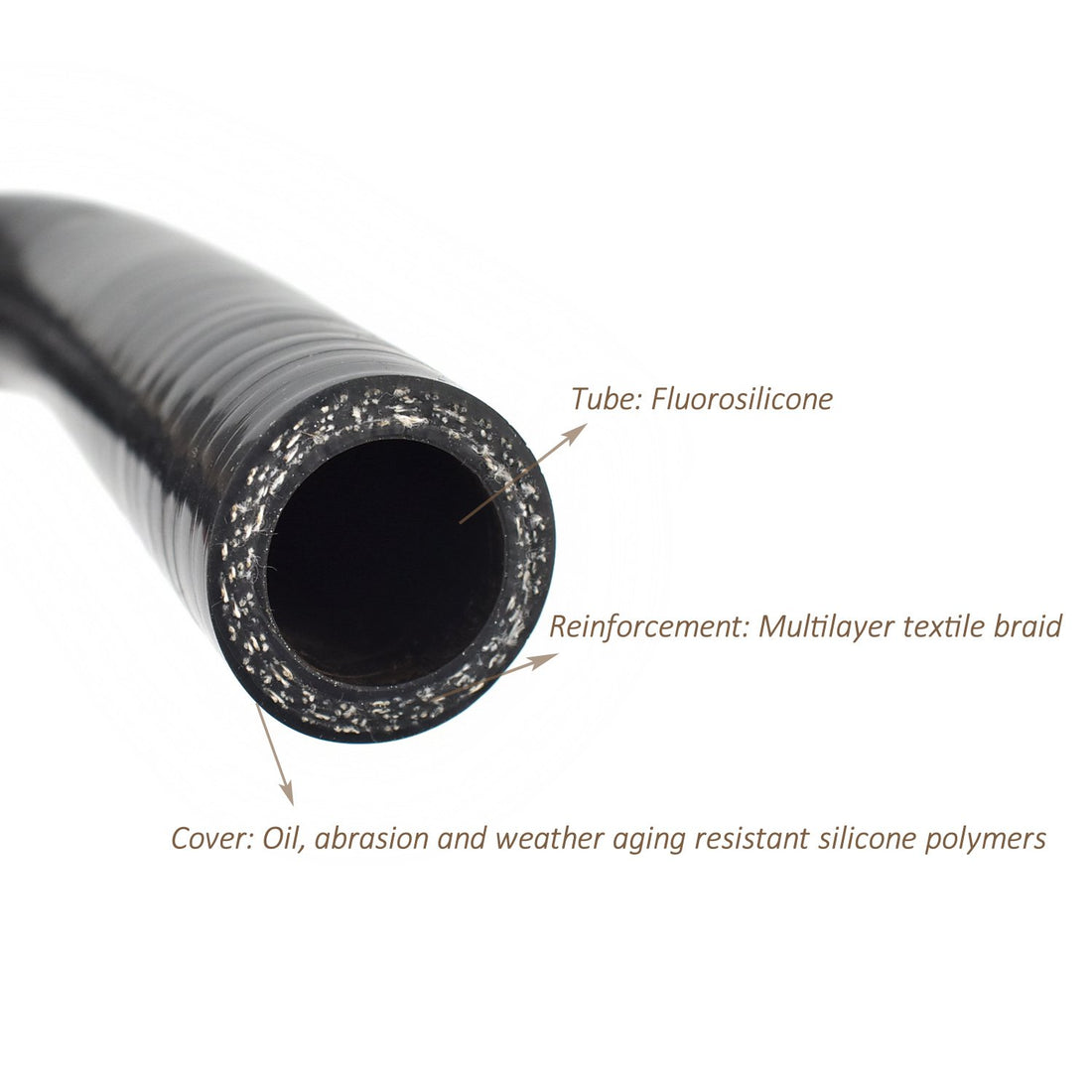

- Oil drain hose: Silicone polymers
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

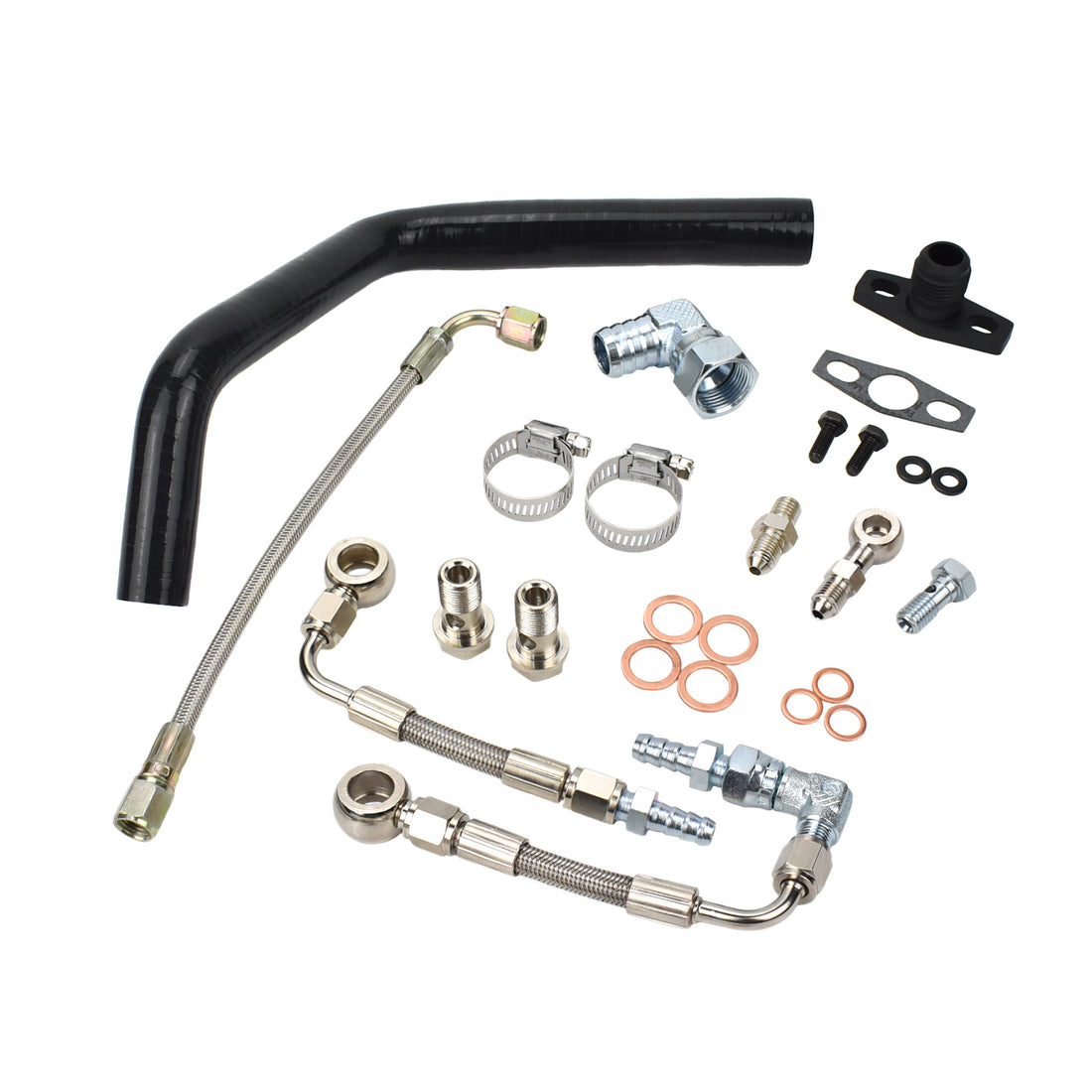

KIT INCLUDES
- -4 AN 1/4" Oil feed line
- -4 AN Oil feed fitting (1.8mm restricted port)
- -4 AN oil banjo eye and bolt to engine oil supply
- Oil drain hose
- Oil drain flange
- Oil drain Gasket (1mm thickness)
- Clamps
- Bolts
- -4 AN 5/16" Water lines
- -4 AN Water fittings to turbo and engine side
- Copper crush washer (1mm thickness)
