Turbo oil and water line fitting kit for Garrett conversion. Oil feed from oil filter location.
PRODUCT APPLICATION
Mitsubishi 4G63T EVO 4~9 with stock mount Garrett G-Series such as G25-550 G25-660 G30-660 G30-770 G30-900 G35-900 G35-1050 ball bearing turbo.
PRODUCT MATERIAL

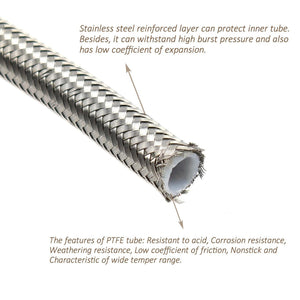

- Oil & water line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

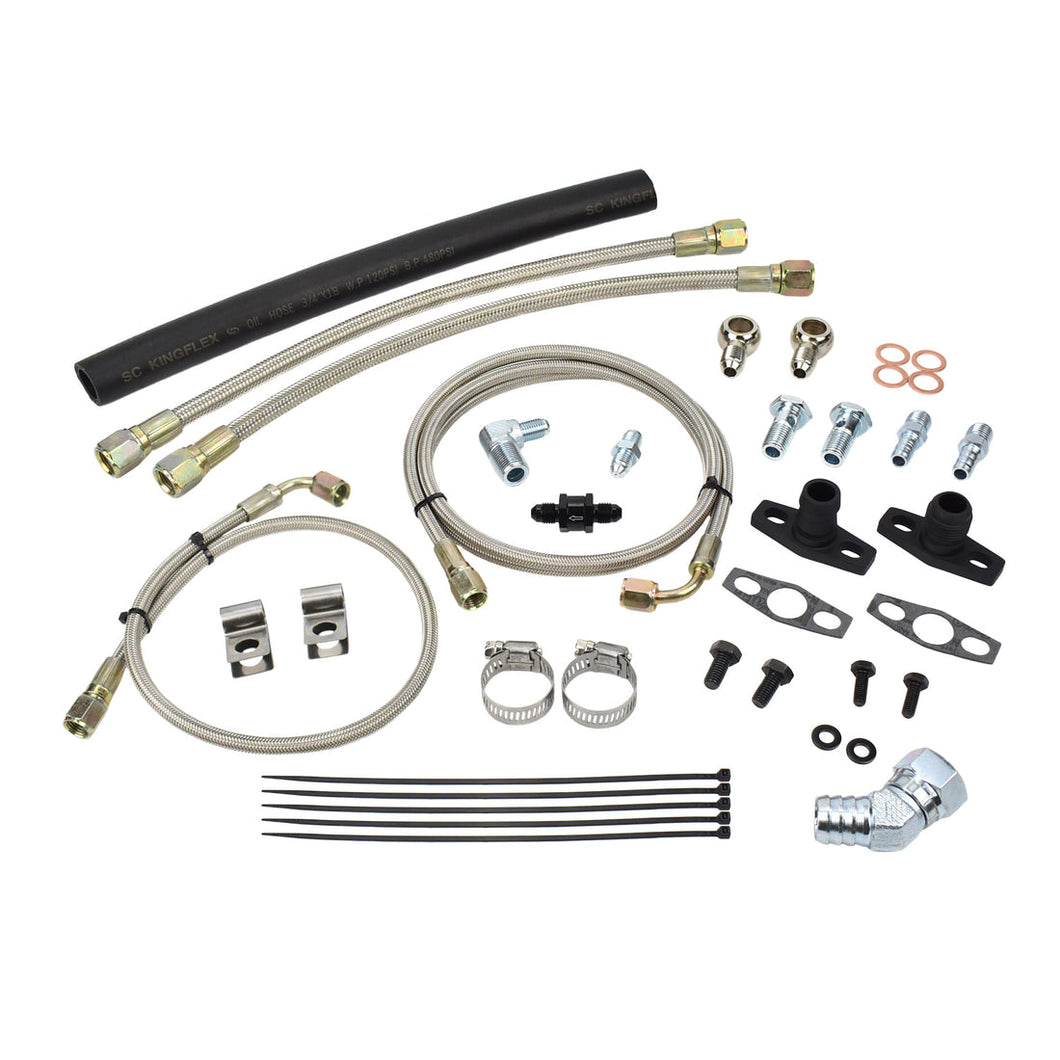

KIT INCLUDES
- -4 AN 1/4" Oil feed line

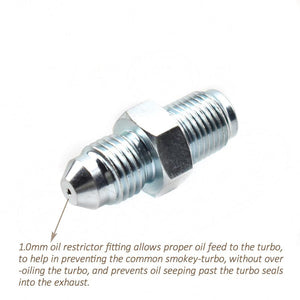

- -4 AN Oil feed fitting (1.0mm restricted port)
- -4 AN 90 degree elbow fitting to oil filter
- -4 AN Oil filter
- Oil drain hose
- Oil drain flange - turbo side
- Oil drain flange - engine side
- Oil drain flange gasket (1mm thickness)
- 45 Degree swivel fitting
- Bolts
- Clamps
- -6 AN 3/8" Water lines
- -6 AN Water banjo eye and bolt to turbo side
- -6 AN Water barb fittings
- Copper crush washer (1mm thickness)
