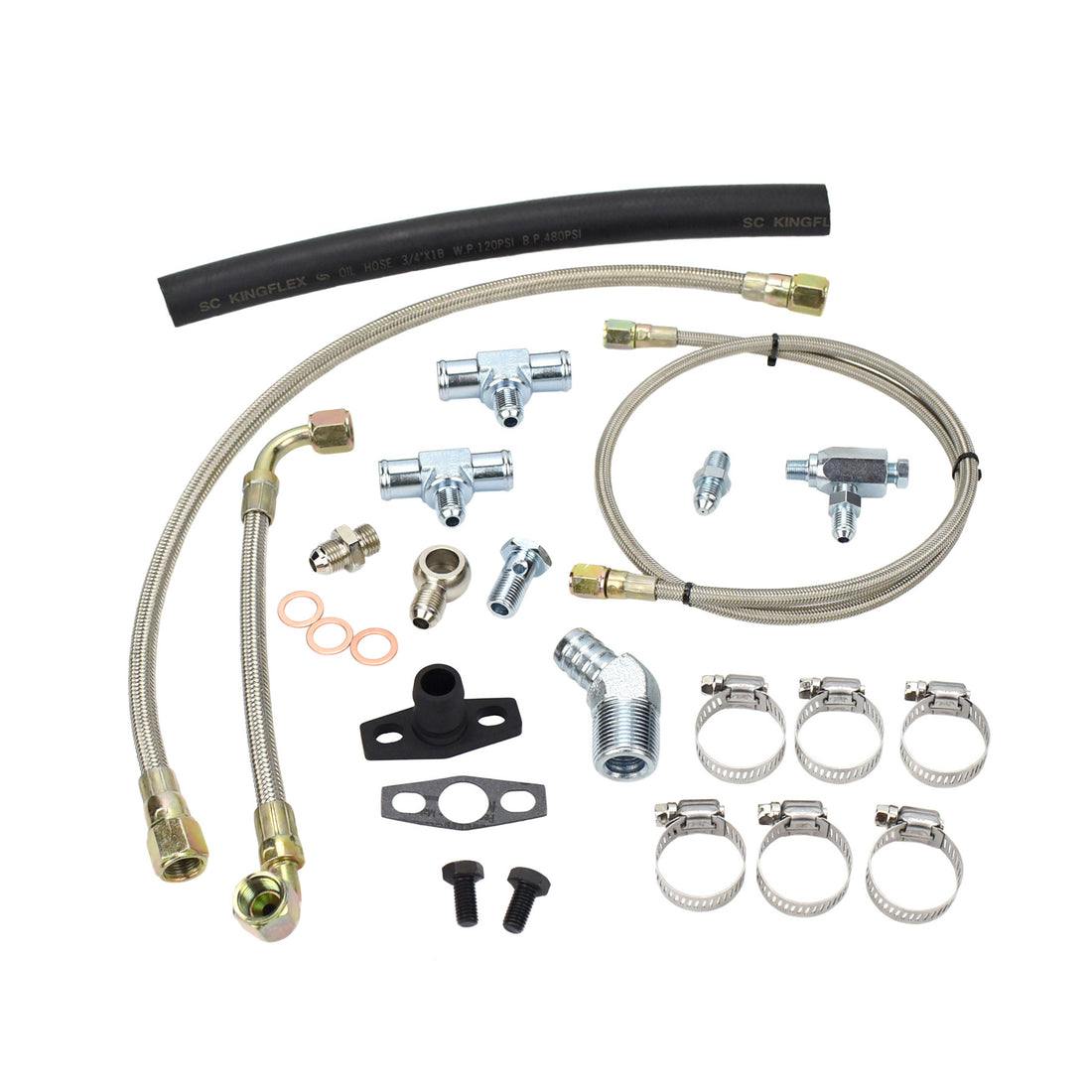

Turbo oil and water line fitting kit for Toyota 1HZ N/A engine to turbo. This kit should hopefully save you the bother of sourcing necessary parts for fitting.
PRODUCT APPLICATION
Toyota Land cruiser HZJ70 HZJ75 HZJ79 HZJ80 HZJ105 1HZ 4.2L diesel engine with Garrett GT28R ball bearing turbo.
PRODUCT MATERIAL- Oil & water line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8
- -4 AN 1/4" Oil feed line

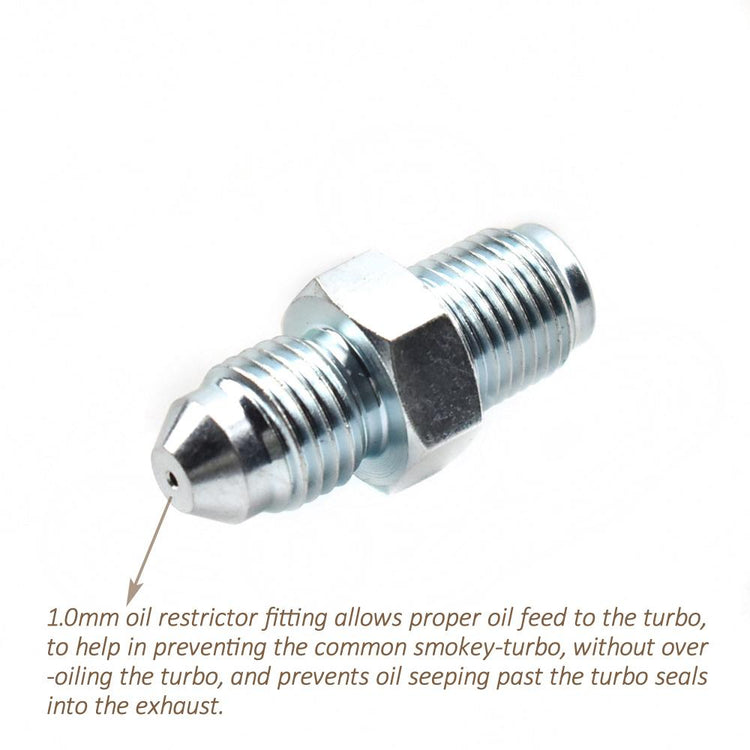

- -4 AN Oil feed fitting (1.0mm restricted port)
- T-Fitting
- Oil drain hose
- Oil drain flange
- Oil drain flange gasket (1mm thickness)
- 45 degree elbow fitting
- Bolts
- Clamps
- -6 AN 3/8" Water lines
- -6 AN Water fittings to turbo and engine side
- Copper crush washer (1mm thickness)
