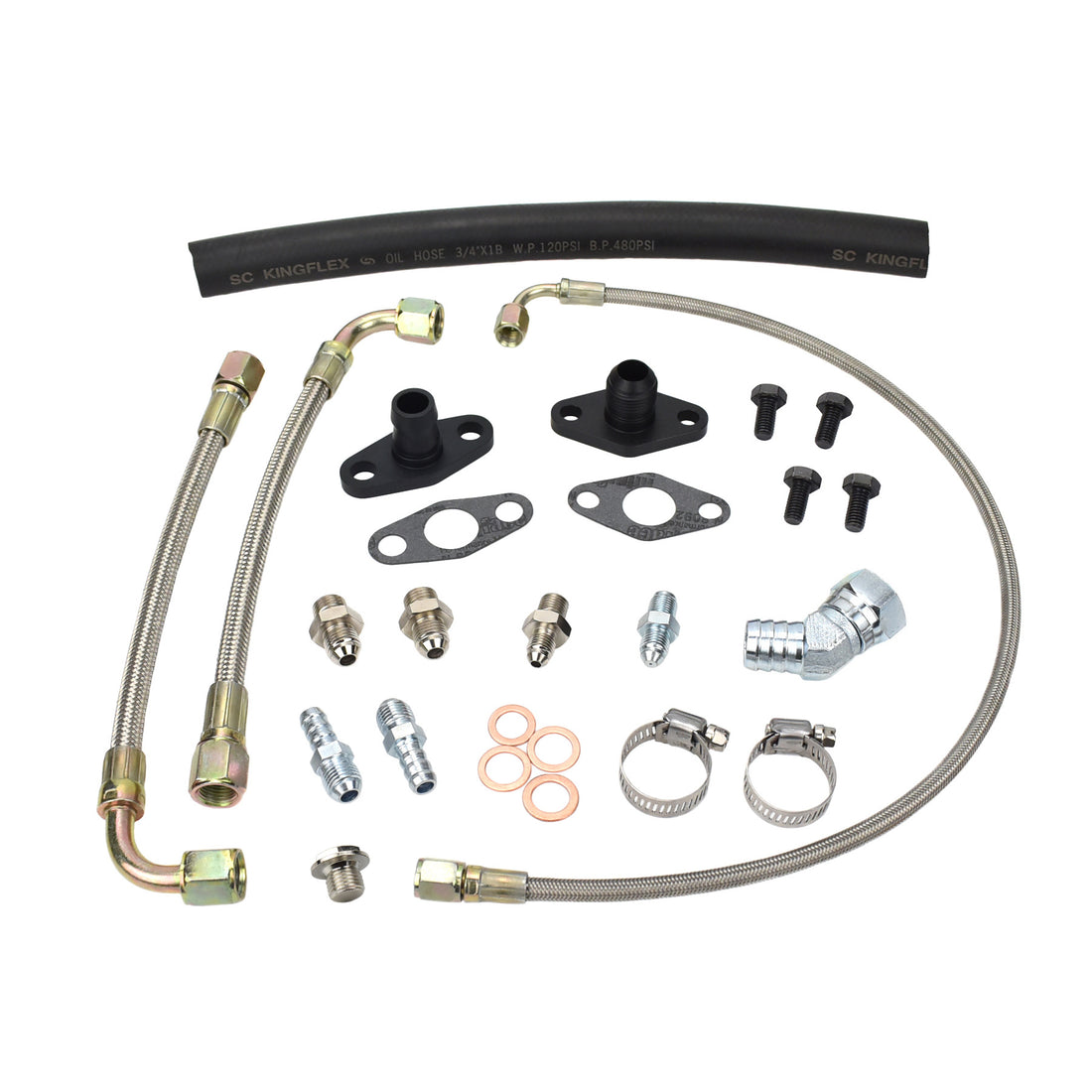

This kit is for a single turbo conversion on a 1JZ-GTE or 2JZ-GTE.
PRODUCT APPLICATION
Toyota Supra 1JZ-GTE 2JZ-GTE top mount Garrett GTW38R GTW3884R T04Z ball bearing turbo.

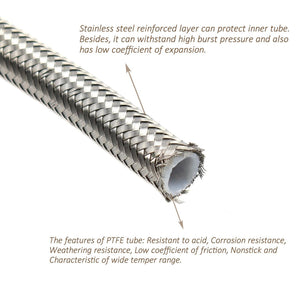

PRODUCT MATERIAL- Oil & water line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8
- -4 AN 1/4" Oil feed line

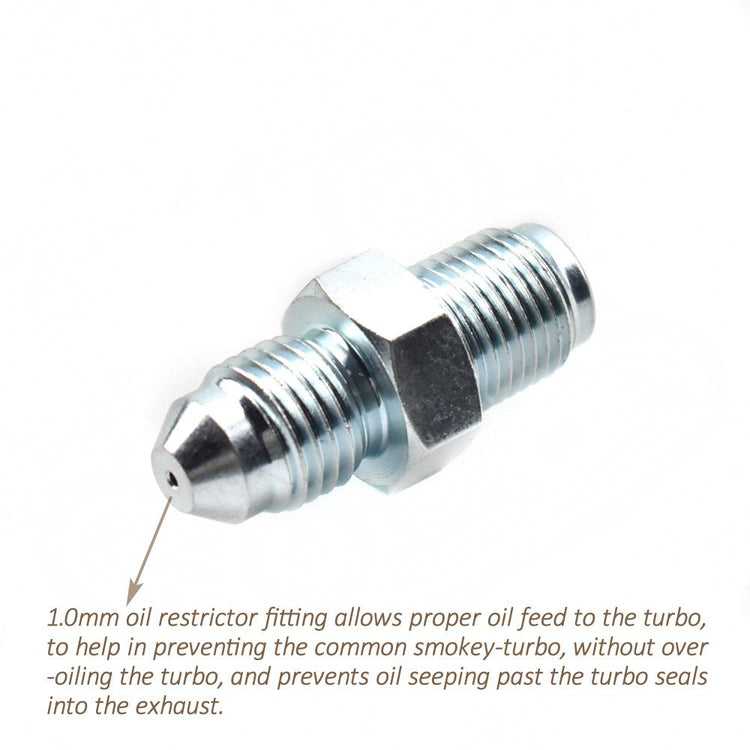

- -4 AN Oil feed fitting (1.0mm restricted port)
- -4 AN Oil adapter fitting to engine oil supply
- Oil feed block off plug
- Oil drain hose
- Oil drain flange - turbo side
- Oil drain flange - engine side
- 45 degree swivel fitting
- Oil drain gasket (1mm thickness)
- Clamps
- Bolts
- -6 AN 3/8" Water lines
- -6 AN Water fittings to turbo and engine side
- Copper crush washer (1mm thickness)
