PRODUCT DESCRIPTION
Universal turbo oil feed and return line kit.
PRODUCT APPLICATION
Garrett T25 T28 TB25 TB28 journal bearing turbo
PRODUCT MATERIAL
- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

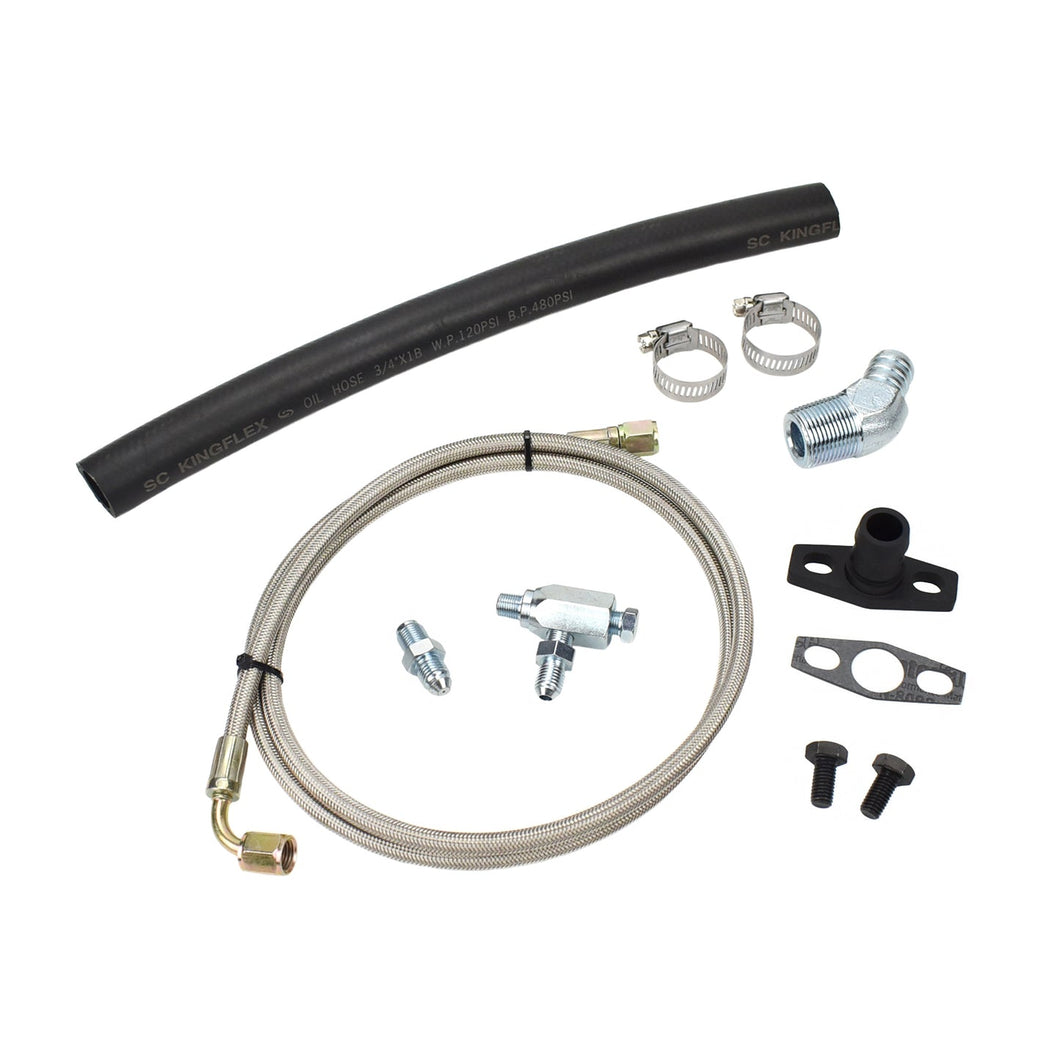

KIT INCLUDES

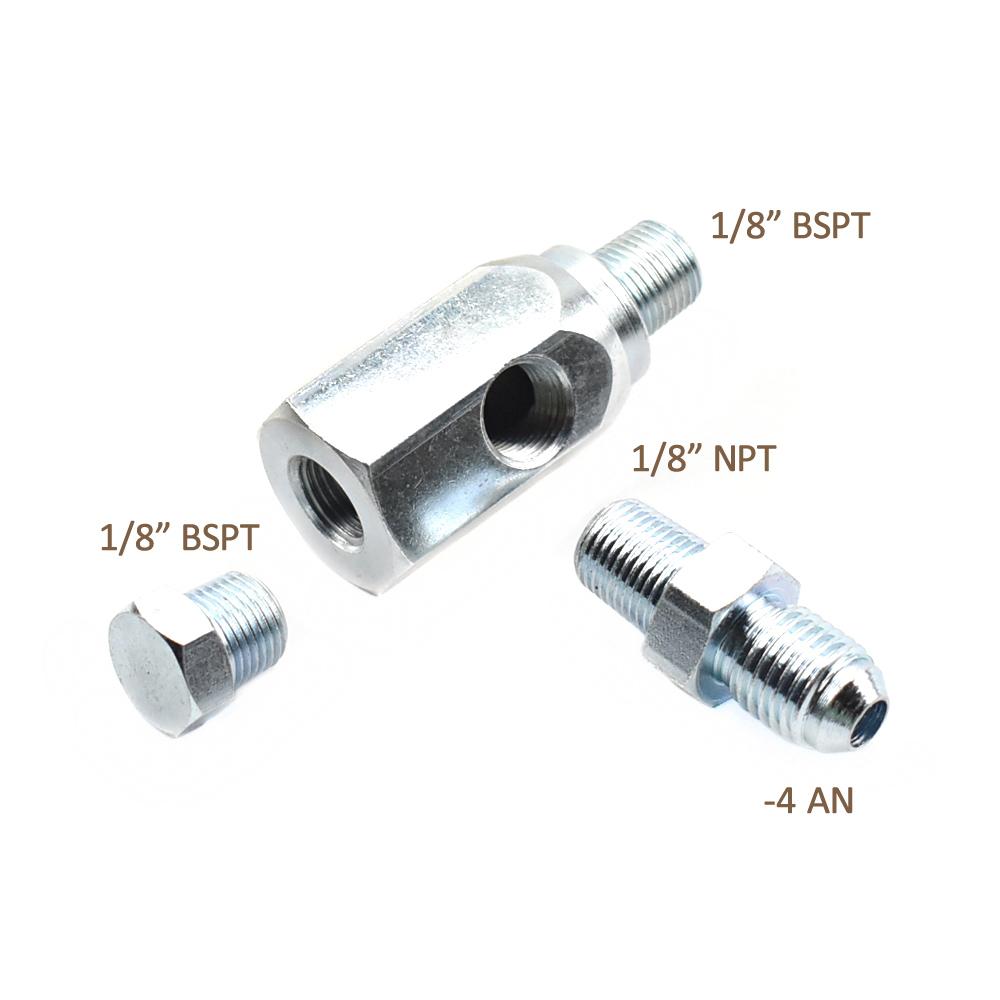

- T-fitting to suit engines with 1/8” BSPT oil pressure switch
- -4 AN 1/4" Oil feed line 104cm long

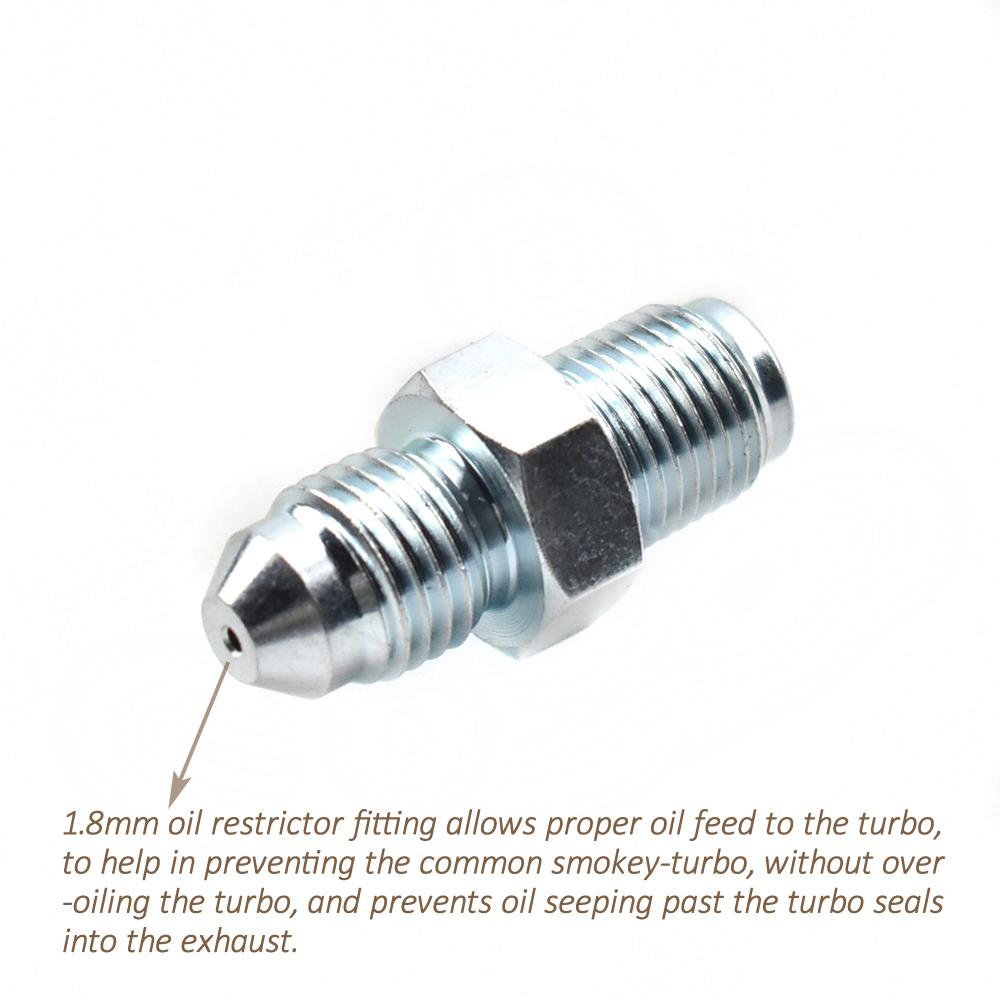

- -4 AN Oil feed fitting (1.8mm restricted port)
- 3/4" NBR Oil drain hose 50cm long
- 3/4" Barb to 3/4" BSPT 45 degree elbow fitting
- 3/4" Oil drain flange
- Oil drain flange gasket (1mm thickness)
- Bolts
- Clamps
