Application
- For Nissan CA18DET Silvia S13 180SX/ 200SX (Europe)/ 240SX (North America)
- For Nissan SR20DET Silvia S13 S14 S15/ 200SX (AUS/NZ)/ 240SX (North America)

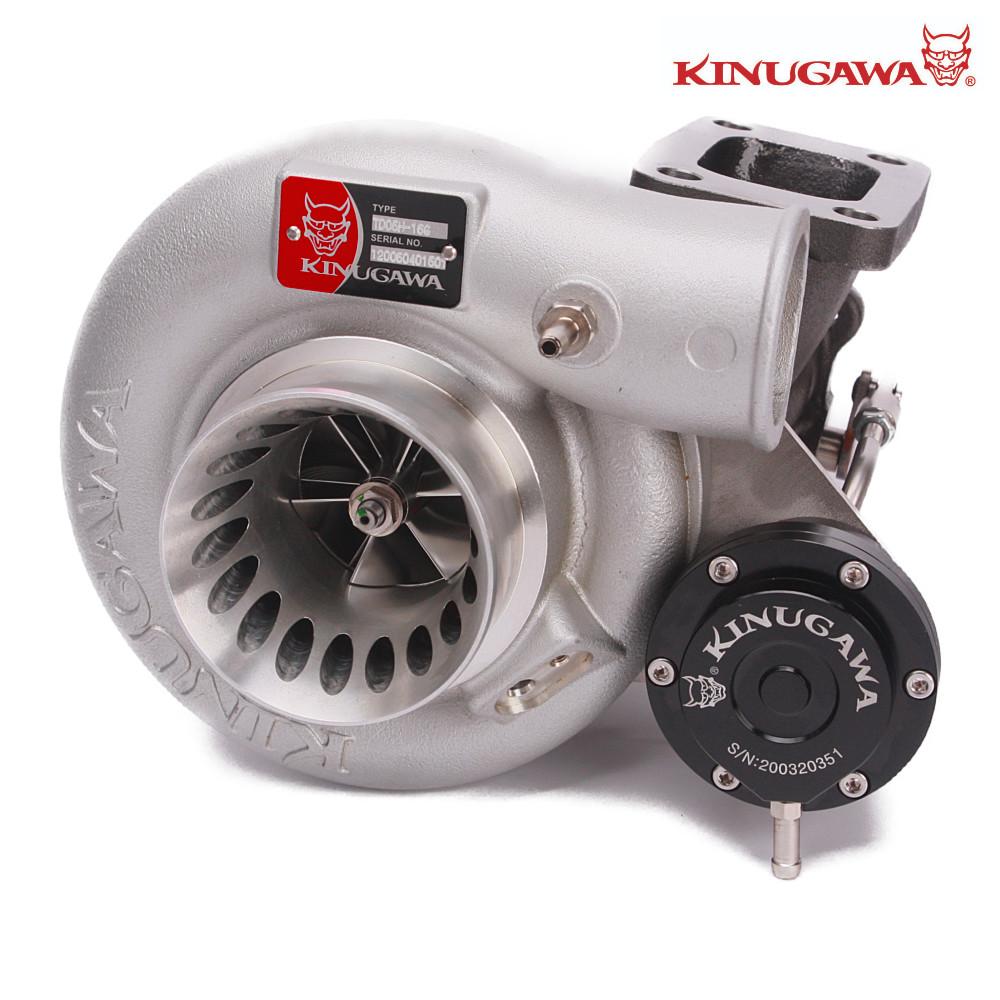

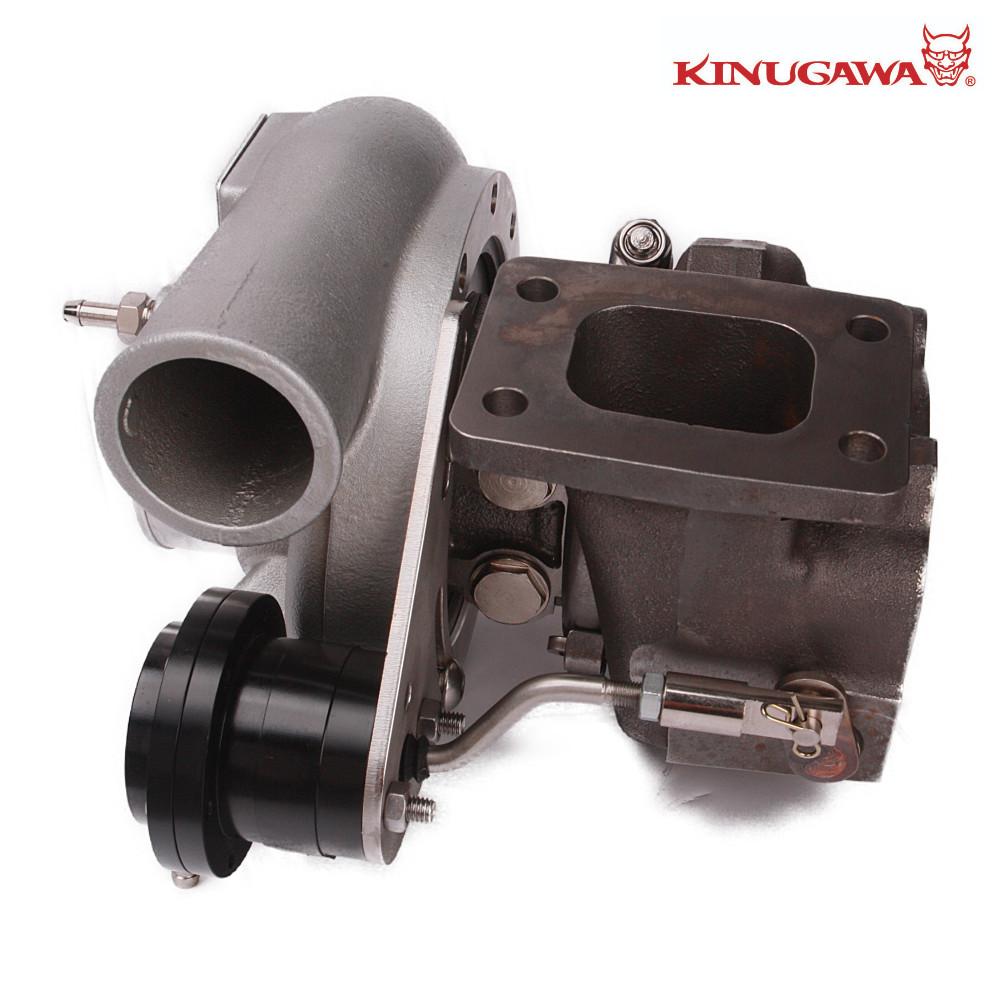

Replace the turbo
Replace and refresh the stock for the Garrett T28 TURBO directly.
CHARR Size
TD06H-20G
Wheels Spec

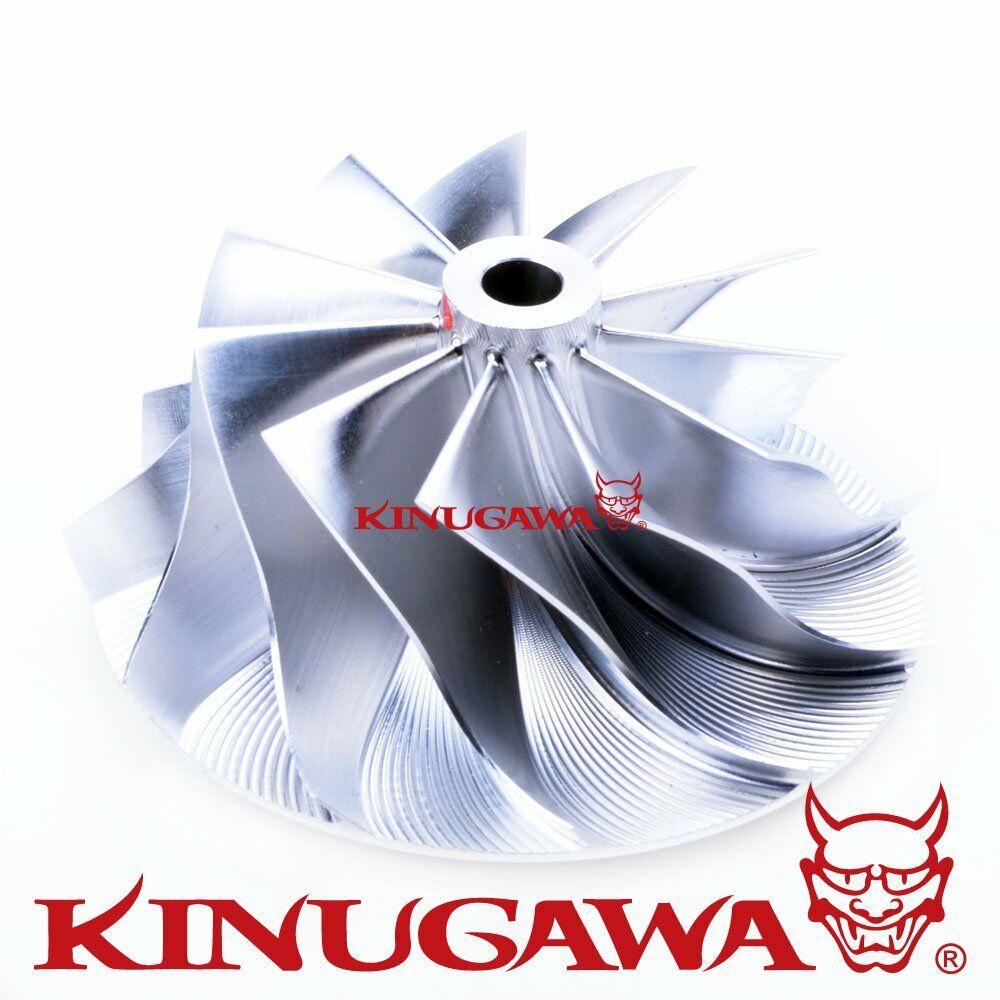

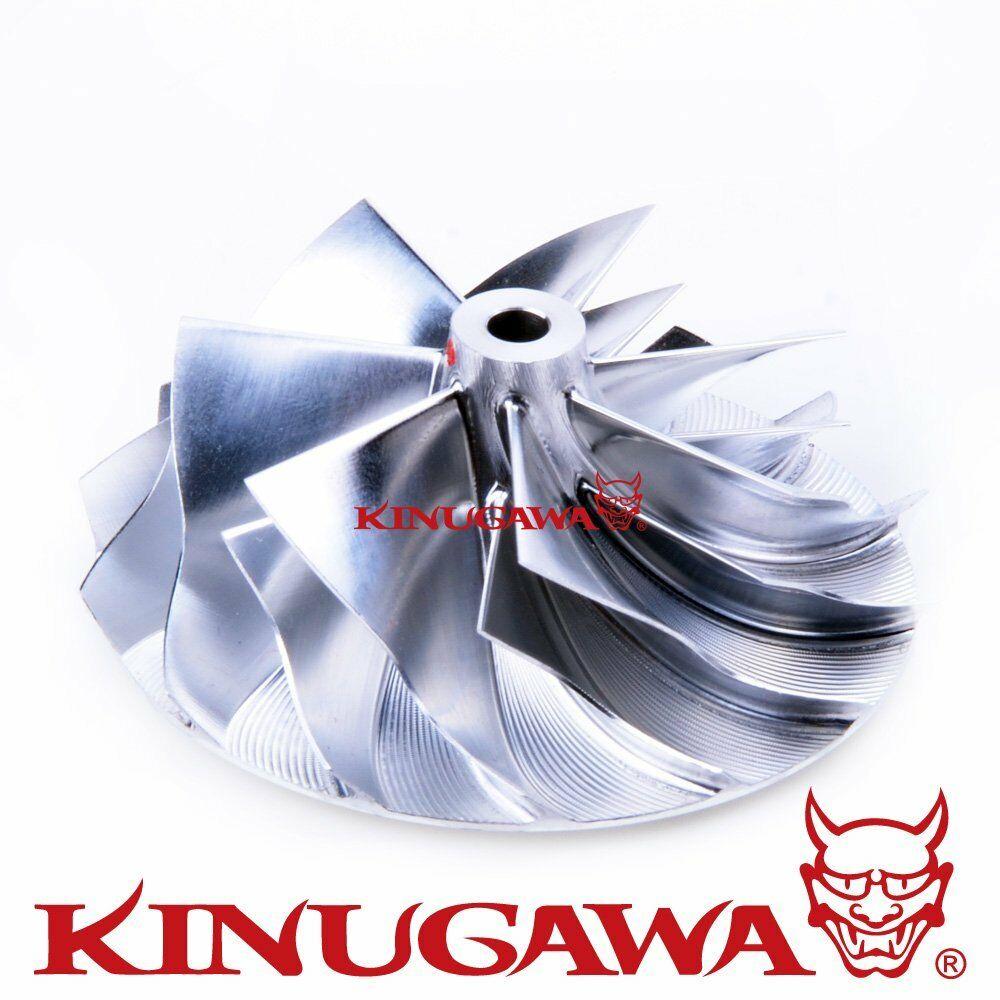

- Compressor wheels: 52.3/68 mm

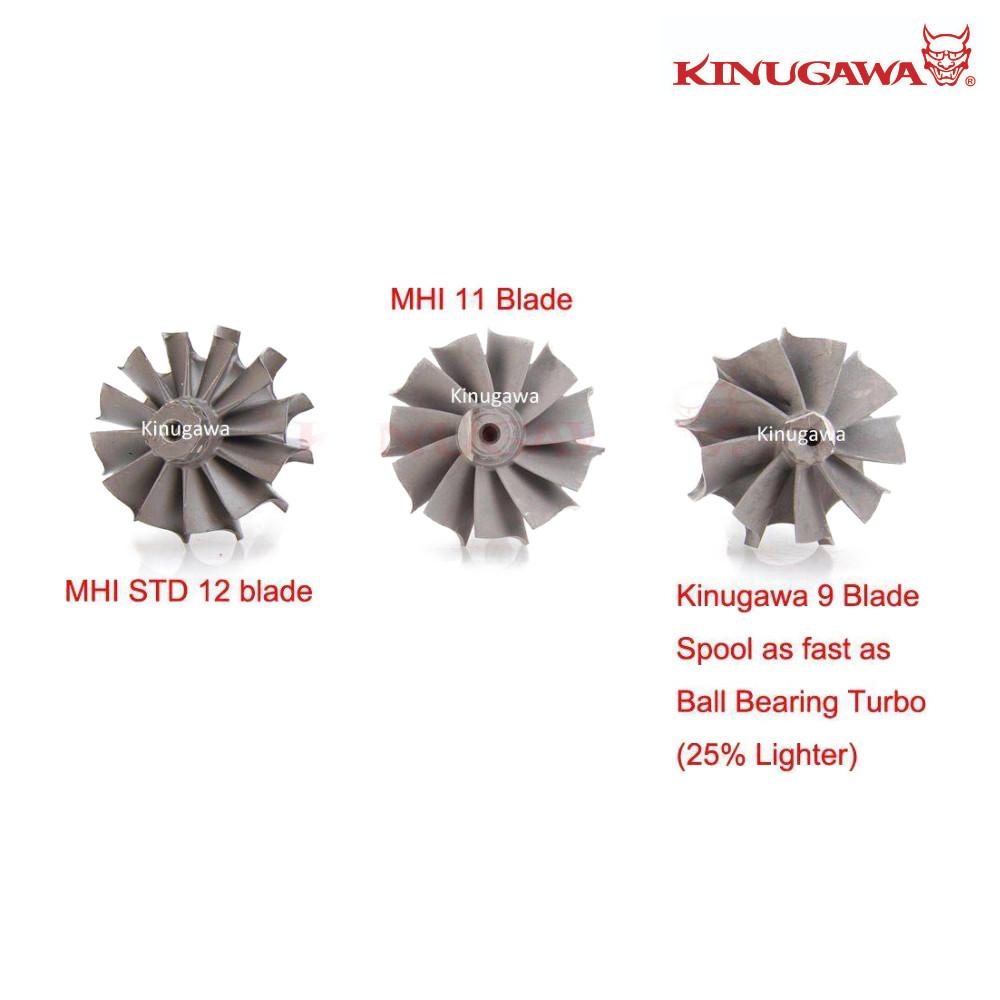

- Turbine wheel: 67.2/58.8 mm

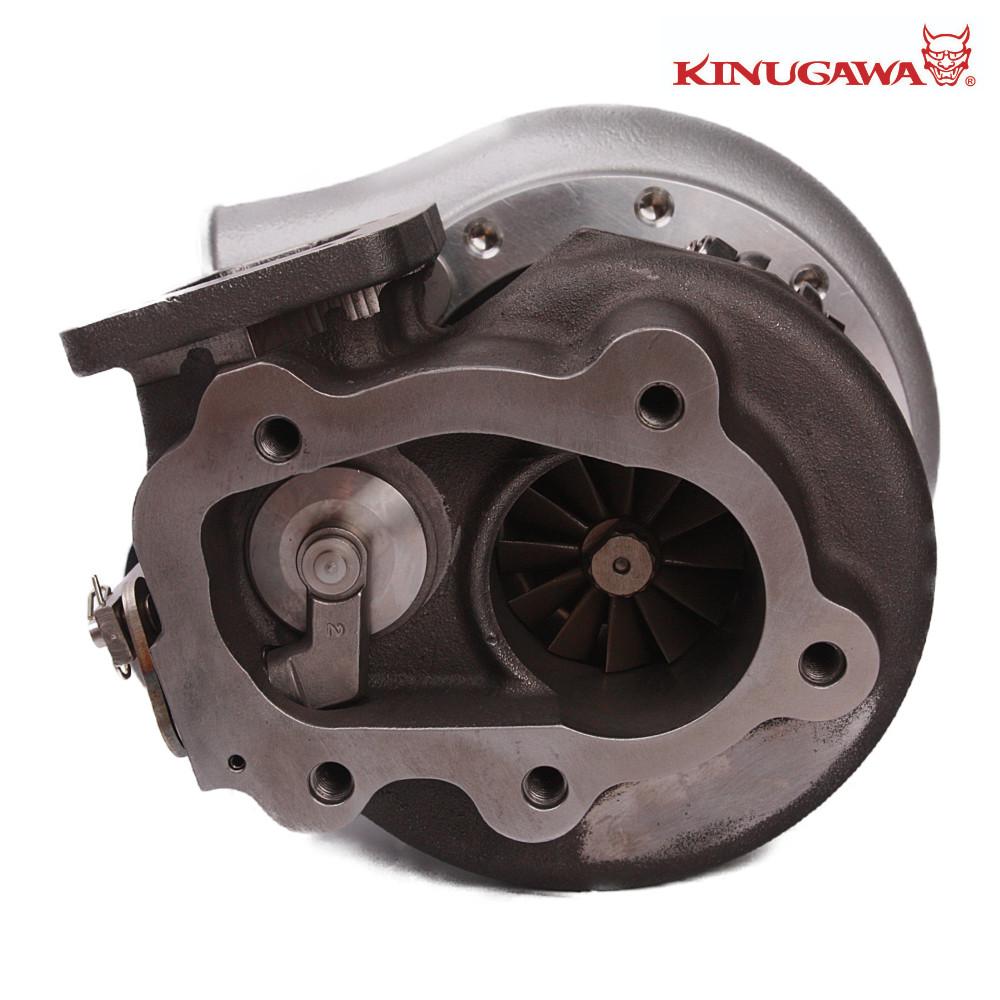

Turbines Housing AR
8cm ^ 2 T25 Inlet
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- oil and water cooling
Drive Pressure
-1.0 bar / 14.7 psi-drive will go with Turbo.
-0.5 bar, 0.8 bar, 1 bar, 1.2 bar, 1.5 bar, available 1.7 bar and 2.0 bar, Please add a comment about your order if you need to change it.
Max hp
350~480HP
Max boost
2.8 bar
The set includes
- 1 x turbine inlet/outlet gasket
- 1 x compressor input / Output gasket
- 1 x Return gasket
- 1 x Oil supply set
- 1 x Return Oil Pipeline
- 1 x water supply kit for water (6AN hose)
- 8 x cloves and nut set
- 1 x Balance Report with anti-counterfeit tag
Situation code
Brand New
Provider
Kinugawa Turbo Systems
Guarantee
One year
