Product Features
- Brand: KINUGAWA
- Features:Strengthen / Replace Turbo Chargers & Parts
- For car makes / model: Subaru WRX STI
- Manufacturer: Kinugawa

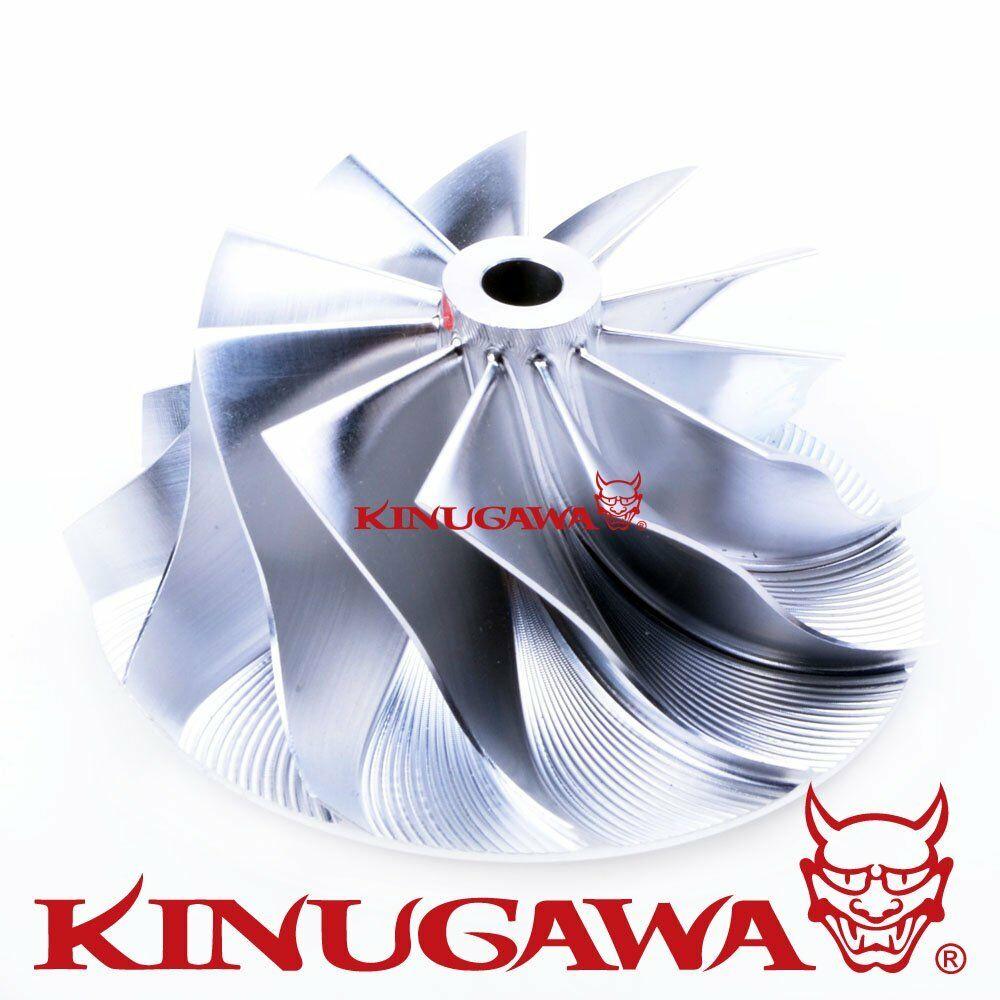

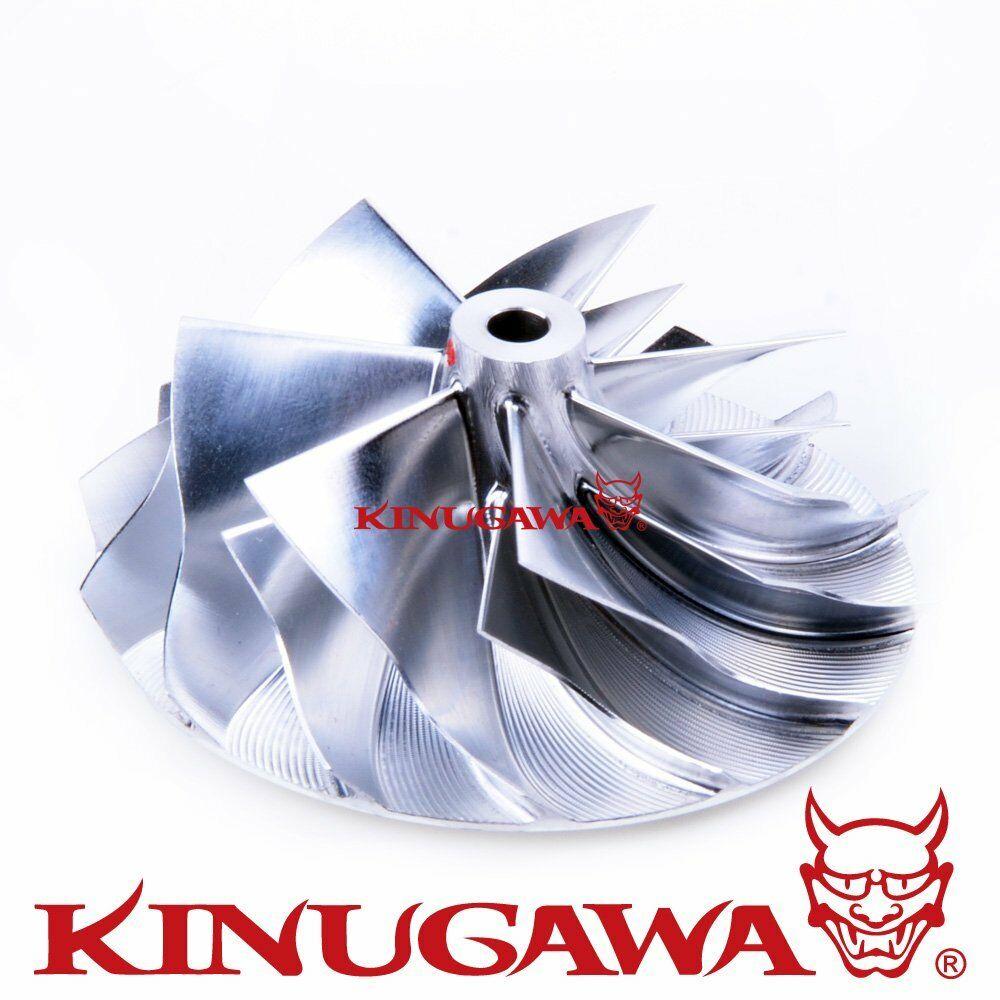

- Compressor Wheel: Billet or Cast

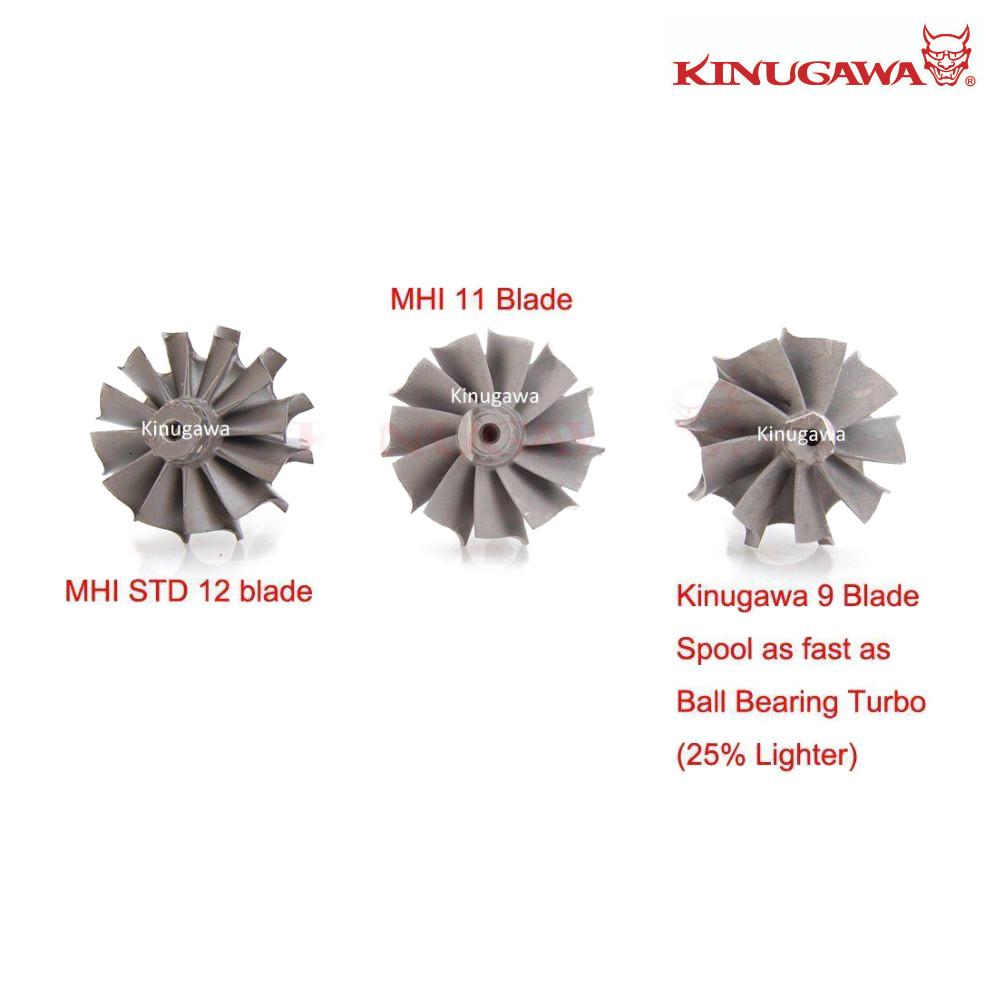

- Turbine Wheel: 12 Blades STD or 9 Blades STS
Product description

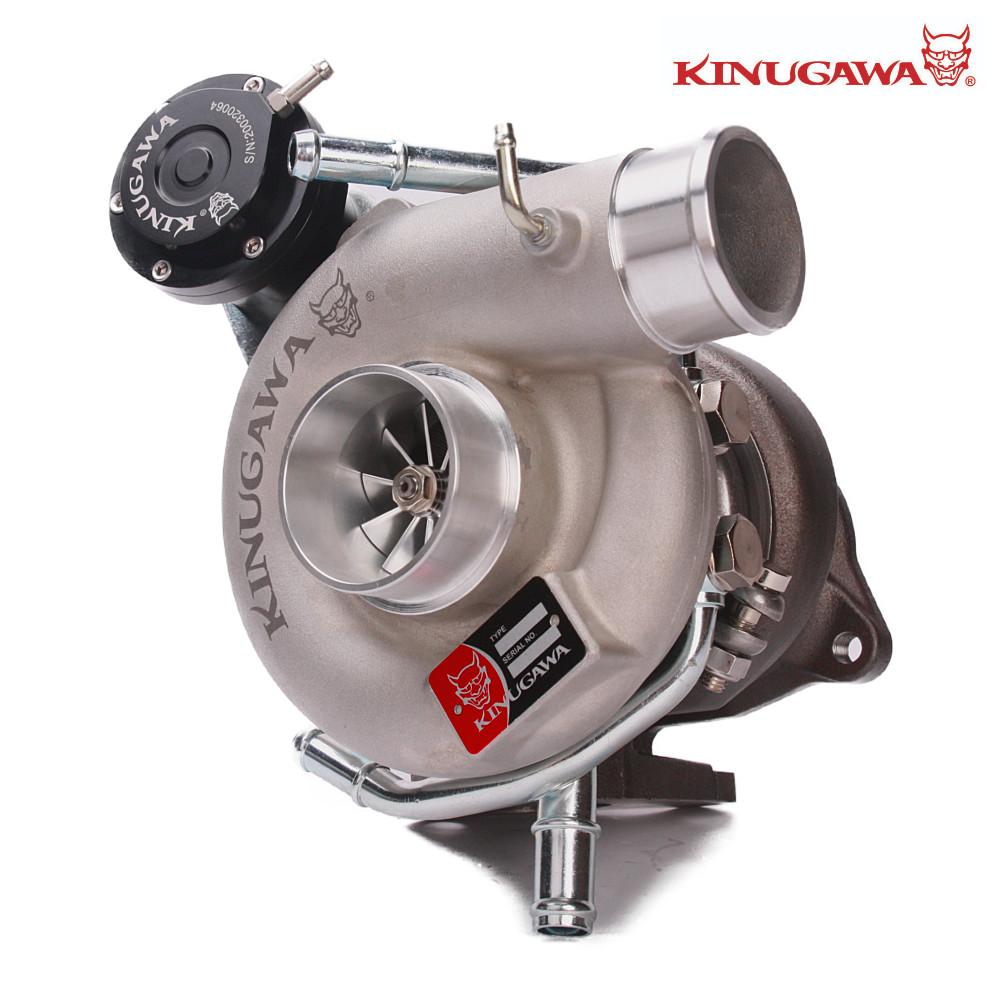

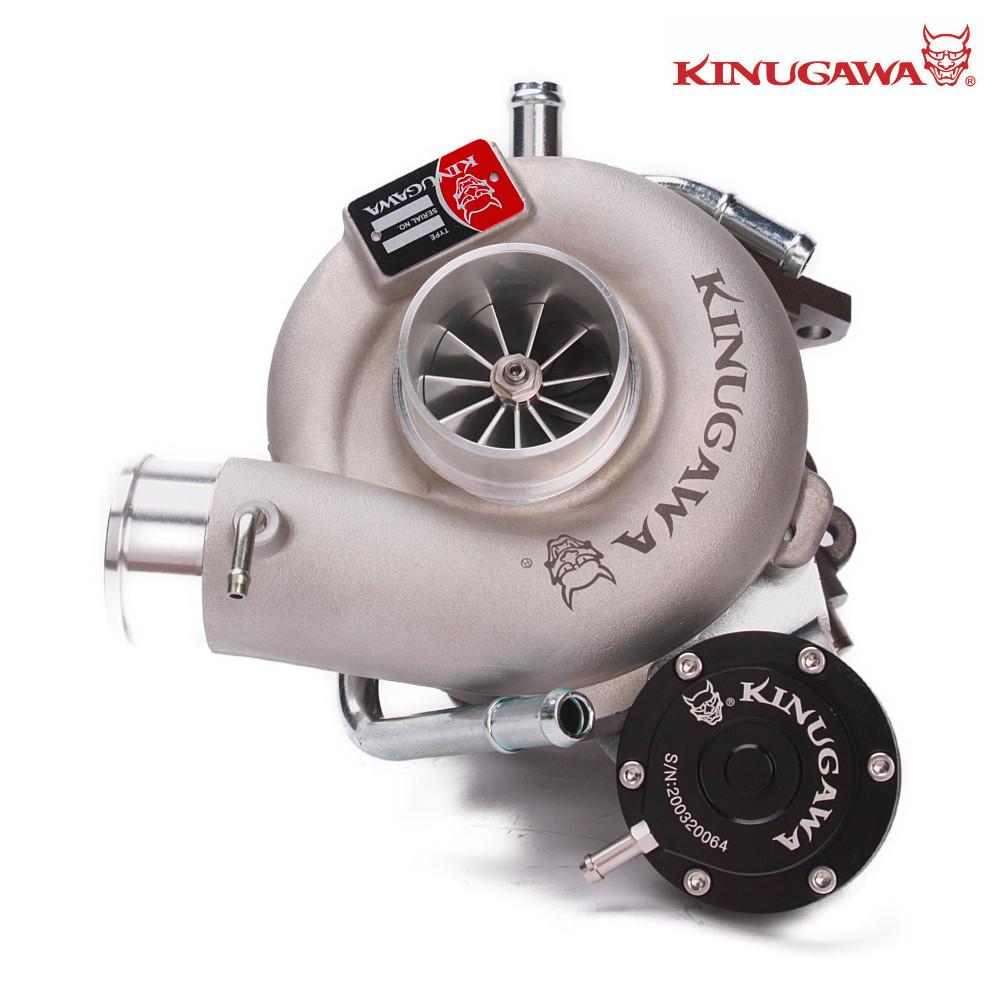

Is the factory turbocharger feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the Kinugawa TD05H-18G Turbocharger. This is a great upgrade for those of you looking to make more power while maintaining a great low-range to the mid-range response. This particular turbocharger is capable of producing up to 400WHP on a healthy engine with excellent throttle response. This is a great option for street and
track duties
Application
-For 1998~99 Subaru EJ20 EJ25 IMPREZA WRX / WRX STi GC8
-For 2002~07 Subaru EJ20 EJ25 IMPREZA WRX / WRX STi GDA / GDB
-It can replace TD04L WRX directly without modification (bolt-on turbo)
CHARR Size
-TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm
- Turbine wheel: 56.0 / 49.2 mm
Compressor Housing
- Compressor inlet: 2.25 "
- Compressor outlet: 2.0"
Turbines Housing
- Size of nozzle: 7 or 8 cm.
- Turbine input: for Subaru One select the type
- Turbine outlet: for Subaru One select the type
Bearing Type
- Journal Bearing with 360-degree thrust bearing kit
Cooling Type
- oil and water cooling
Drive Pressure
- 1.0bar is the default.
-We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar drives, Please add a comment to your order if you need to change it.
Boost / hp
- Horsepower 350~400whp
-The Max boost is limited: 2.8bar
-Preposed beat: 1.5bar

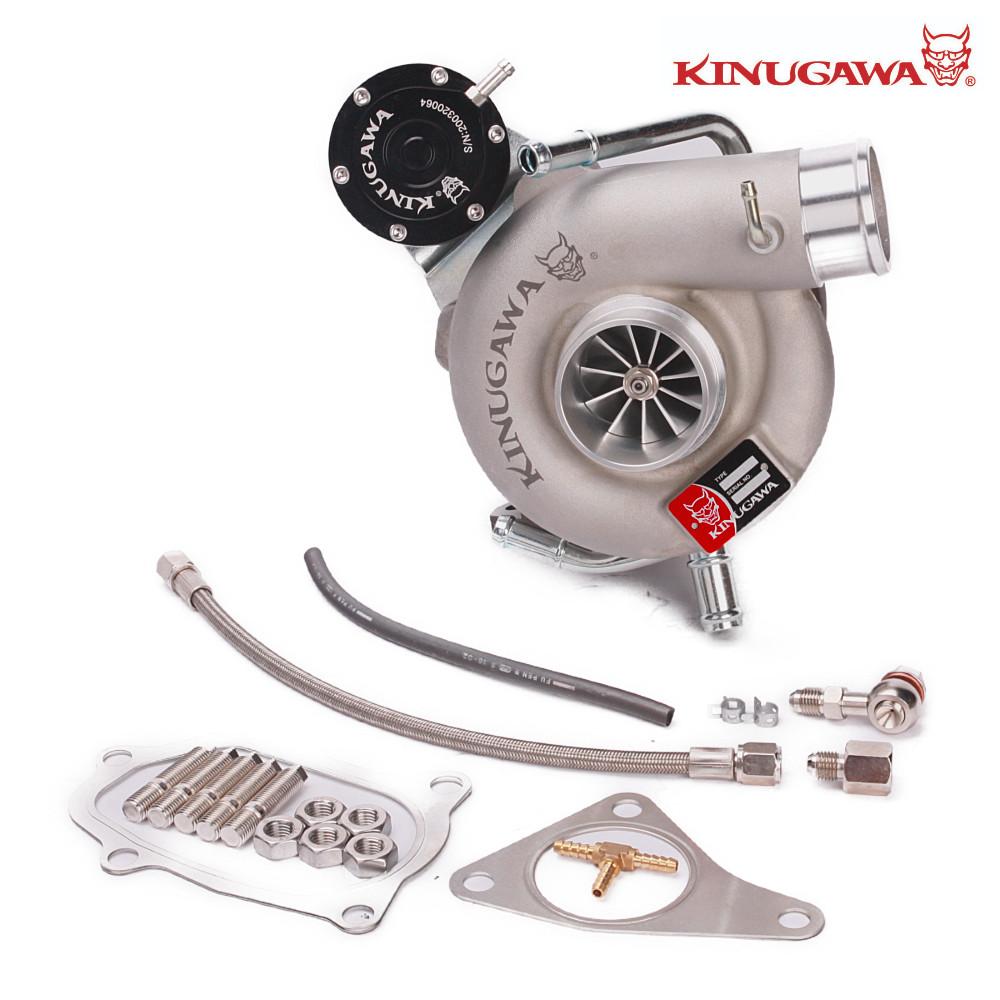

The set includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 5 x Stud And Nut Set
-
Situation code
-Brand New
-Full balance from Schenk MBRS 110 Germany
Provider
-Kinugawa Turbo Systems
Guarantee
-One year
