ITEM NAME
- Kinugawa Super Core Mazda Mazdaspeed 3 MPS / 6 / CX7 / CX9
APPLICATION
- 2007~2013 Mazdaspeed 3 MPS / 6 / CX7 / CX9 2.3L MZR DISI Turbo
Replace and upgrade K0422-581, K0422-582, K0422-583, K0422-881, K0422-882, K0422-883 Turbo

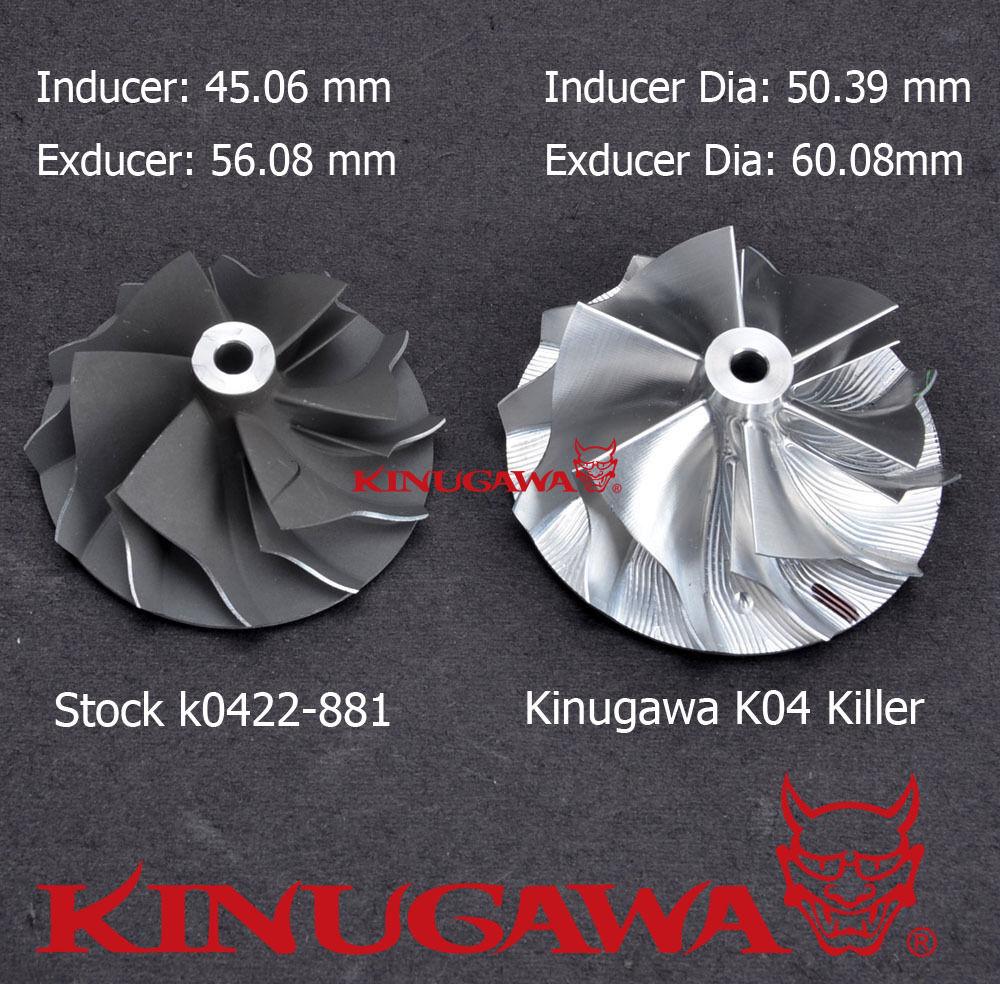

WHEEL SPEC
- Compressor wheel: 50.39 / 60.08 mm
(Billet 5+5 Blades w/ Extend Tip : 64.12 mm)
- Turbine Wheel: 44.5 / 50 mm
(Stock K0422-881 Turbine Wheel)
COOLING/BEARING SYSTEM
- Oil and water cooling
- Journal bearing system
Drive Pressure
- 1.0 bar is the default setting.
- 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar spring settings included.

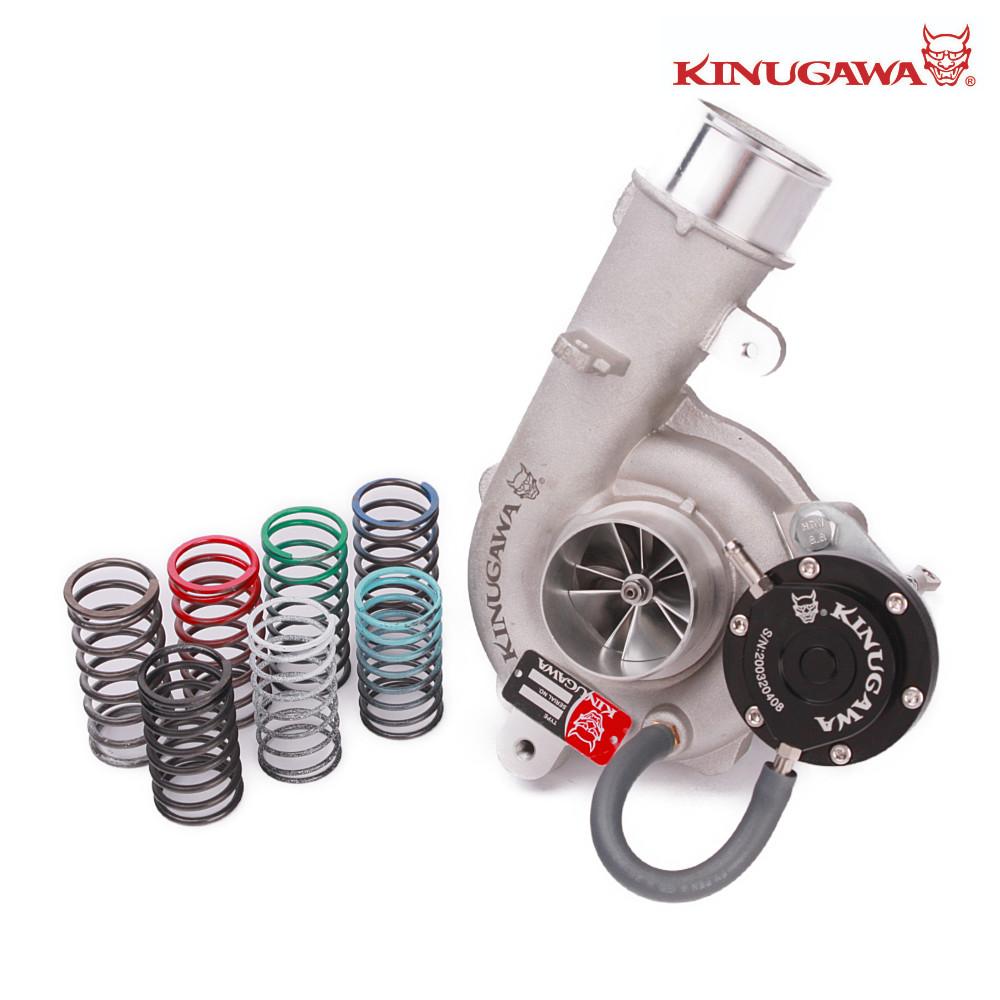

KIT INCLUDES
- 1 x turbo super core
- 1 x spring set (8 springs included 1.0 bar is the default)
ITEM SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
MANUFACTURE
- Kinugawa Turbo Systems
WARRANTY
- One Year
