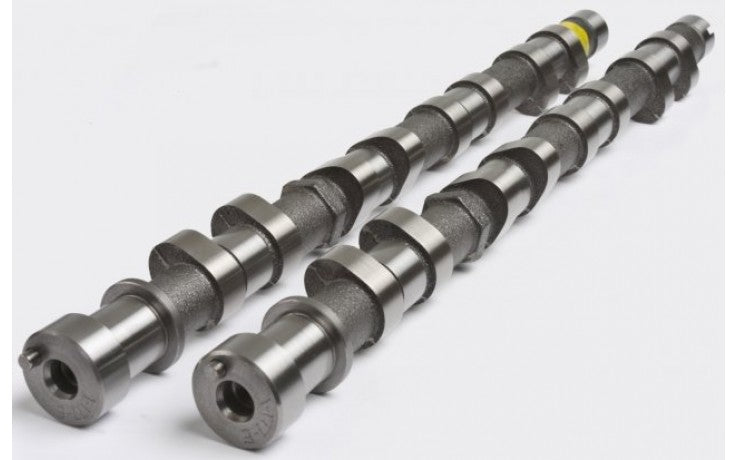

The ultimate cam for street, strip and track engines from 300-500hp. These camshafts are stable to 35lb boost and 8000 RPM with our recommended valve springs.
Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 VR4 EVO1-3 1-TX264
Valve Clearance: Intake: Set at the
Exhaust: Set at the
Cam Lift: Intake: 6.36mm Exhaust: 5.98mm
Rocker Ratio: Intake: 1.73 Exhaust: 1.73
Nett Valve Lift: Intake: 11.00mm Exhaust: 10.35mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 216 Exhaust: 216
Timing @ 1.00mm VALVE LIFT IVO: 1 BTDC EVO: 41 BBDC
IVC: 35 ABDC EVC: 5 BTDC
Suggested Centre Lines: Intake: 107 Exhaust: 113
VALVE Lift @ TDC Intake: 1.10mm Exhaust: 0.70
