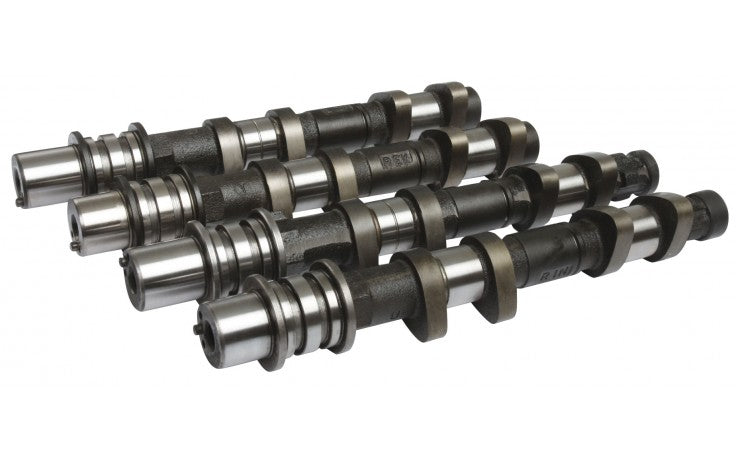

264 degree camshafts to suit street strip and track applications, requires ecu and turbo upgrade.
Engine Make: Engine Model: Part Number:
SUBARU EJ20 WRX Version 5-6 non AVCS 199-C
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
Exhaust: 0.25mm Set COLD at the CAM
Cam Lift: Intake: 10.50mm Exhaust: 10.25mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 10.30mm Exhaust: 10.00mm
Advertised Duration @ 0.25mm Intake: 268 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 3 BTDC EVO: 43 BBDC
IVC: 43 ABDC EVC: 1 BTDC
Suggested Centre Lines: Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 1.36mm Exhaust: 0.92
