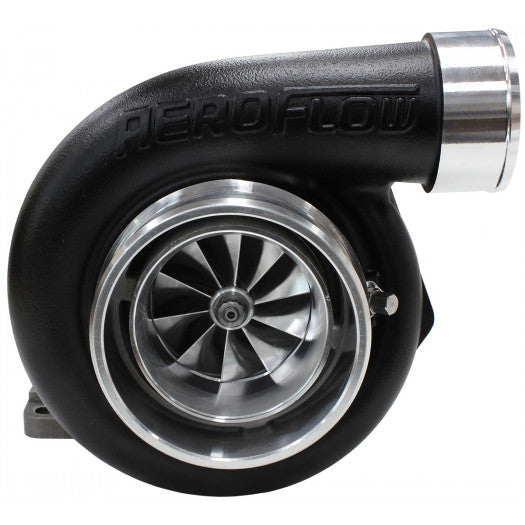

![BOOSTED 6662.63 T3 FLANGE V-BAND OUTLET GTX3582 BLACK](http://www.performanceheaven.com.au/cdn/shop/products/AF8005-3015BLK_{width}x.jpg?v=1589093776)
Recommended horsepower rating: 450-850HP
Recommended engine displacement: 2L to 4.5L
Dual ceramic ball bearing
Billet aluminium compressor wheel
Ported shroud compressor housing cover
Speed sensor port included in compressor cover (sold separately, AF8050-1010)
External wastegate sold separately
Inlet flange single layer gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit
Turbine inlet gasket sold separately AF9557-0005
Recommended turbo drain adapter AF463-01 or AF463-05
M14x1.5mm coolant fittings sold separately
V-Band sold separately AF8080-1000
Compressor
Inducer: 66mm
Exducer: 82mm
Extended Tip: 87.5mm
A/R: 0.72
Turbine
Inducer: 68mm
Exducer: 62.3mm
A/R: 0.63
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Inlet Flange: T3
Turbine Outlet Flange: V-Band
Wastegate: External wastegate
