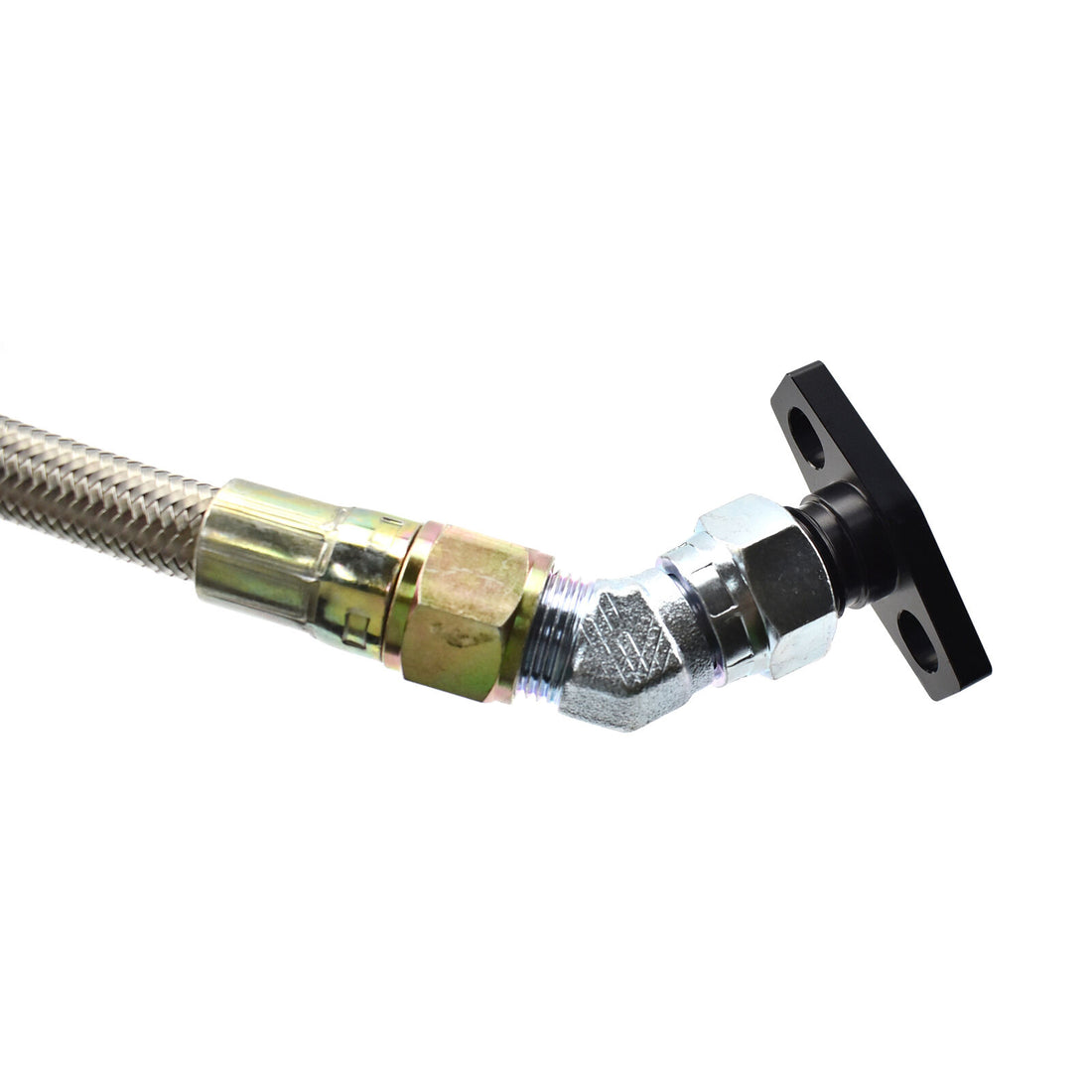

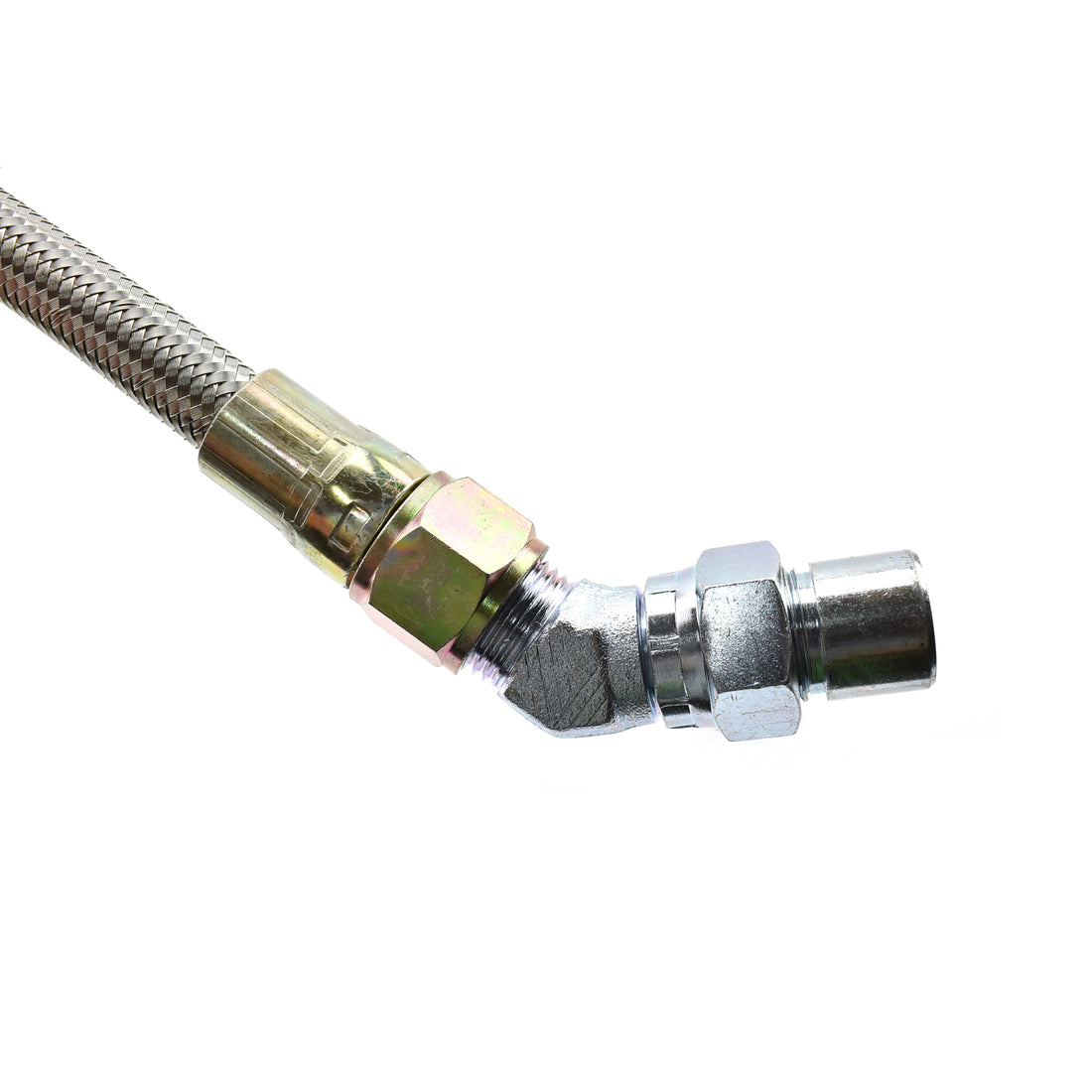

Universal braided turbo oil feed and drain line kit. Oil drain line With -10AN 45 degree swivel fitting so you can aim the 10AN in whatever direction you need. Very convenient.
PRODUCT APPLICATION
BorgWarner EFR Series Turbochargers includes 6258 6758 7163 7064 7670 8374 8474 9174 9274 9180 9280
The EFR ball bearing system does not require much oil to function properly. Additional oil restrictions SHOULD NOT BE USED. The required restriction to throttle the oil flow to the ball bearings is already integrated into the bearing housing.
PRODUCT MATERIAL- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Flange: 6061-T6 aircraft aluminum
- Fitting: Mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

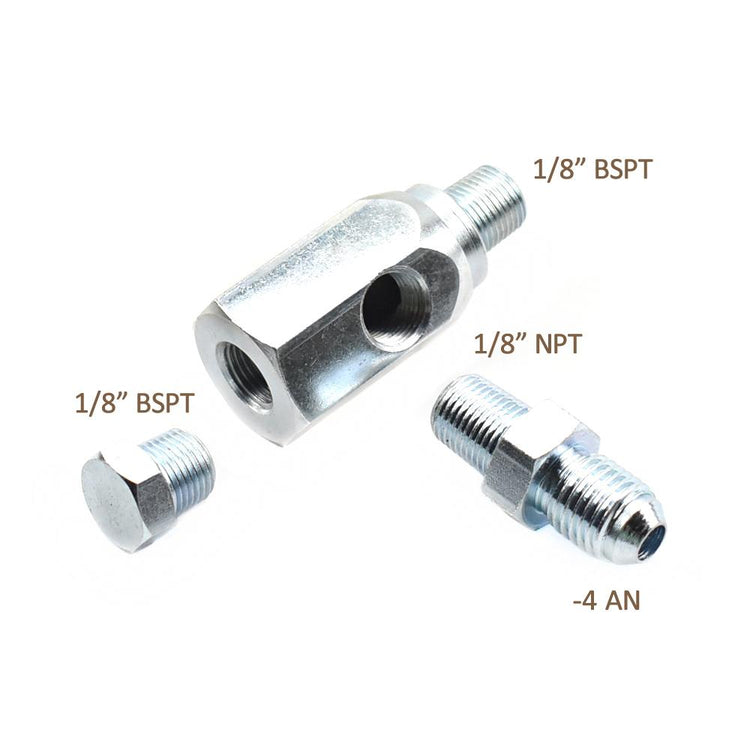

- T-fitting to suit engines with 1/8” BSPT oil pressure switch

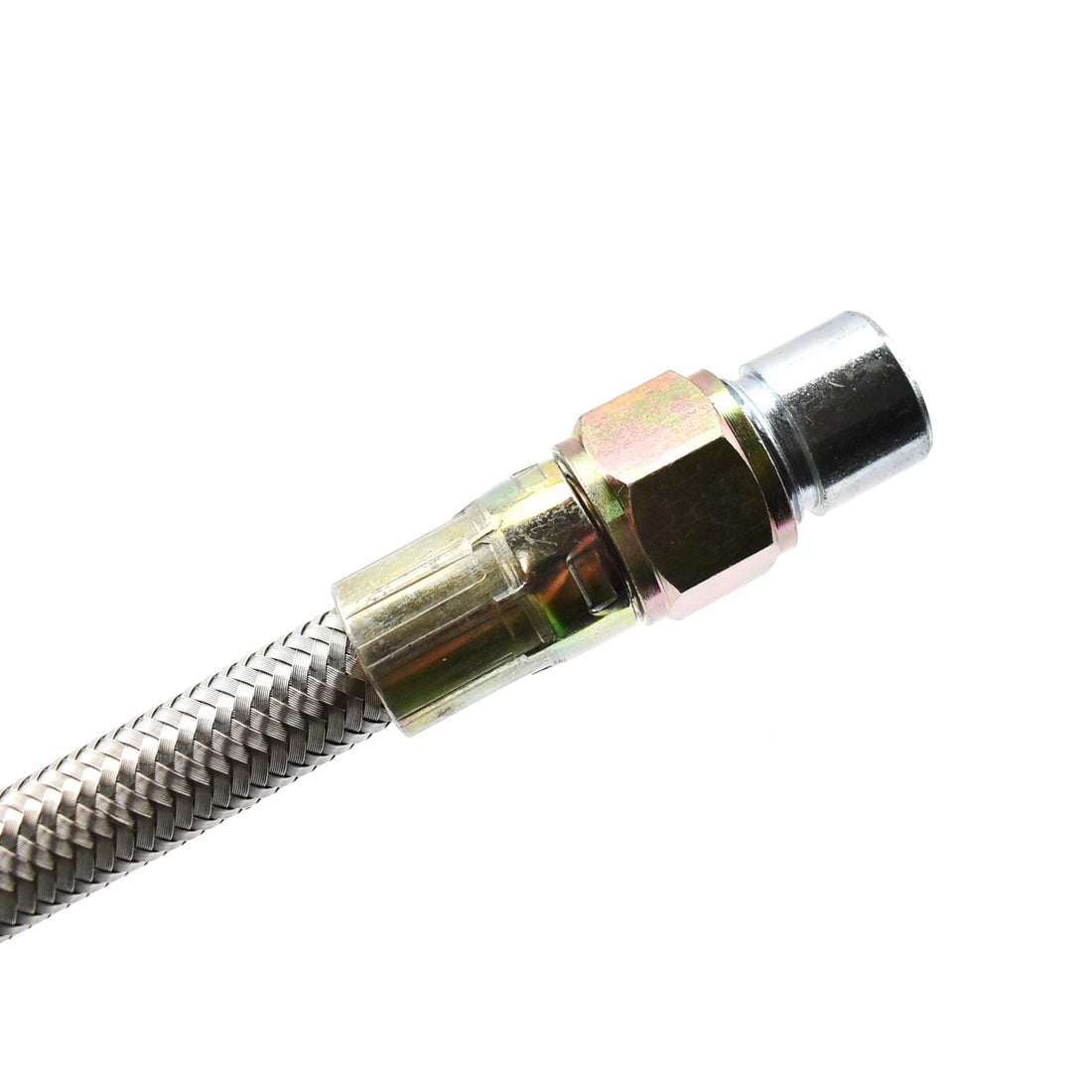

- -4 AN 1/4" Oil feed line 41" long
- -4 AN Oil feed fitting (no restricted port)
- -10 AN 5/8" Oil drain line 20" long

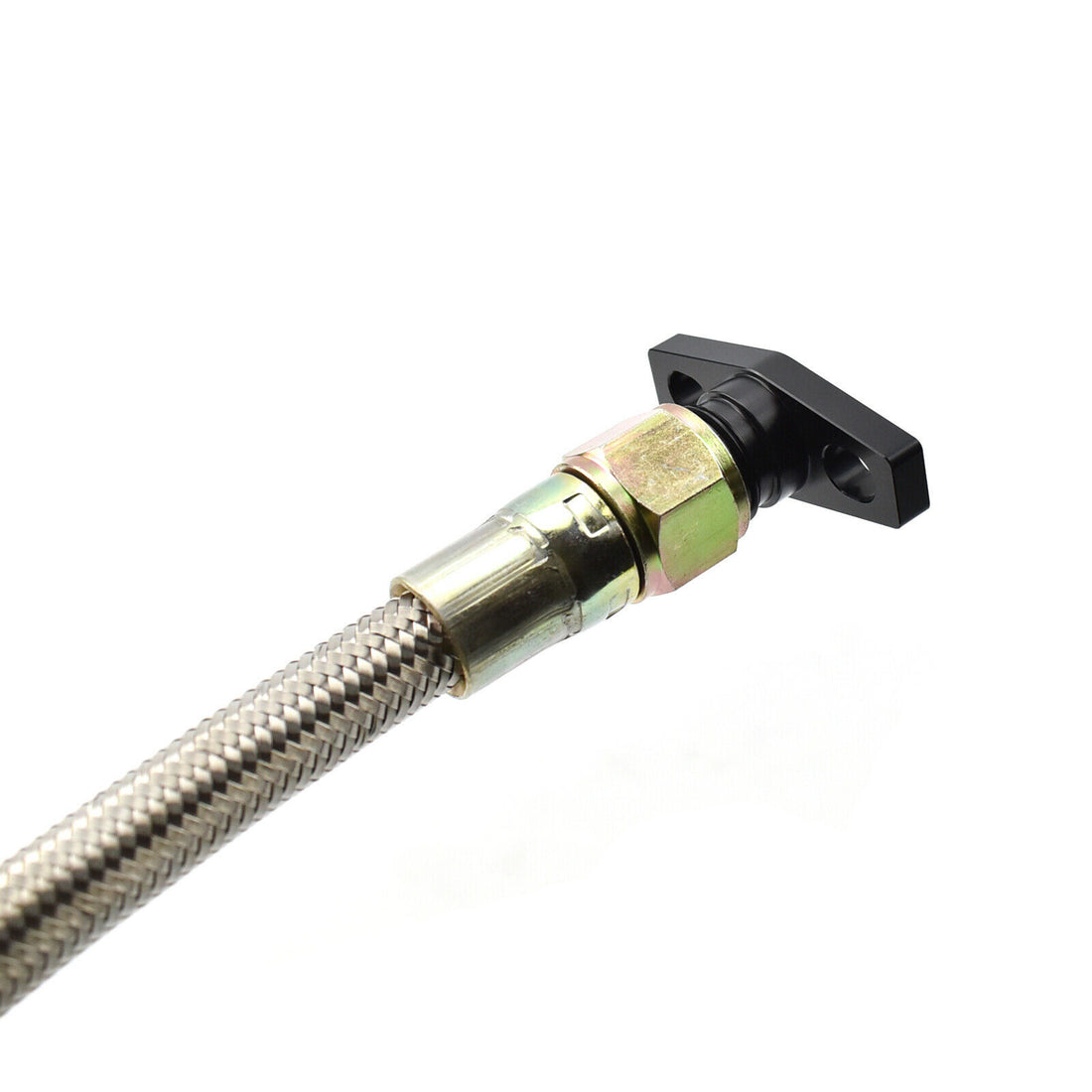

- -10 AN Oil drain flange
- -10 AN male to female swivel fitting 45 degree
- -10 AN Weld fitting
- Oil drain flange gasket (1mm thickness)
- Bolts
