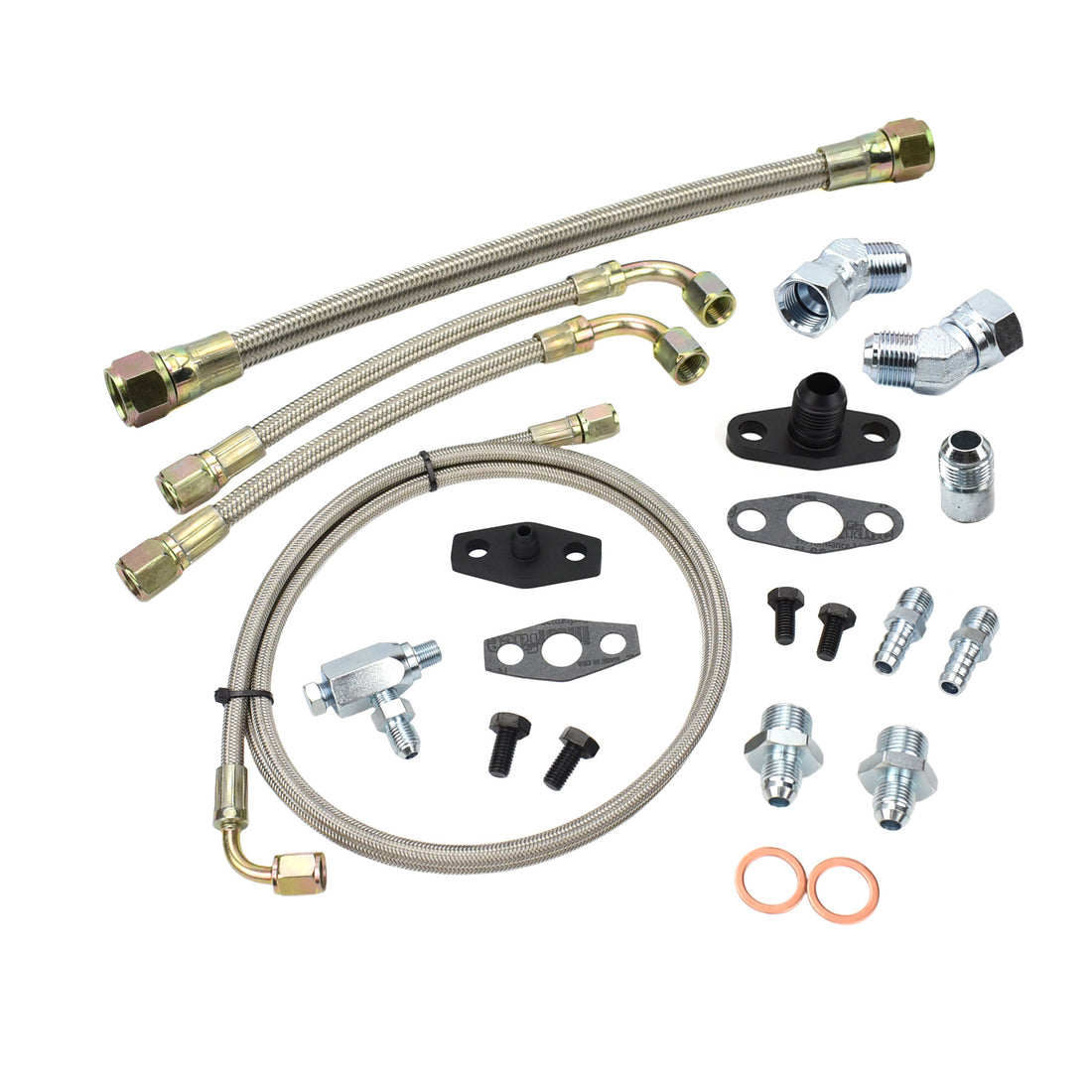

Universal braided turbo oil and water line kit. Oil drain line With -10AN 45 degree swivel fitting so you can aim the 10AN in whatever direction you need. Very convenient.
PRODUCT APPLICATION
Garrett T3 T4 T34 T35 TB03 (M16 water port)
NOTE: Before ordering please check what water thread you have on your turbo.
PRODUCT MATERIAL- Oil & water line: Pre-crimped PTFE Teflon braided stainless steel
- Flange: 6061-T6 aircraft aluminum
- Fitting: Mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

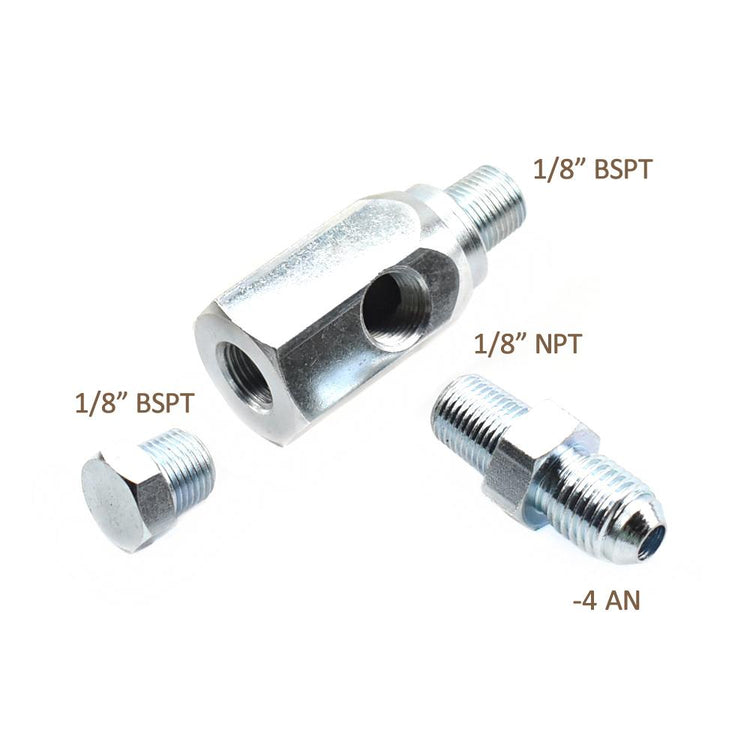

- T-fitting to suit engines with 1/8” BSPT oil pressure switch
- -4 AN 1/4" Oil feed line 41” long

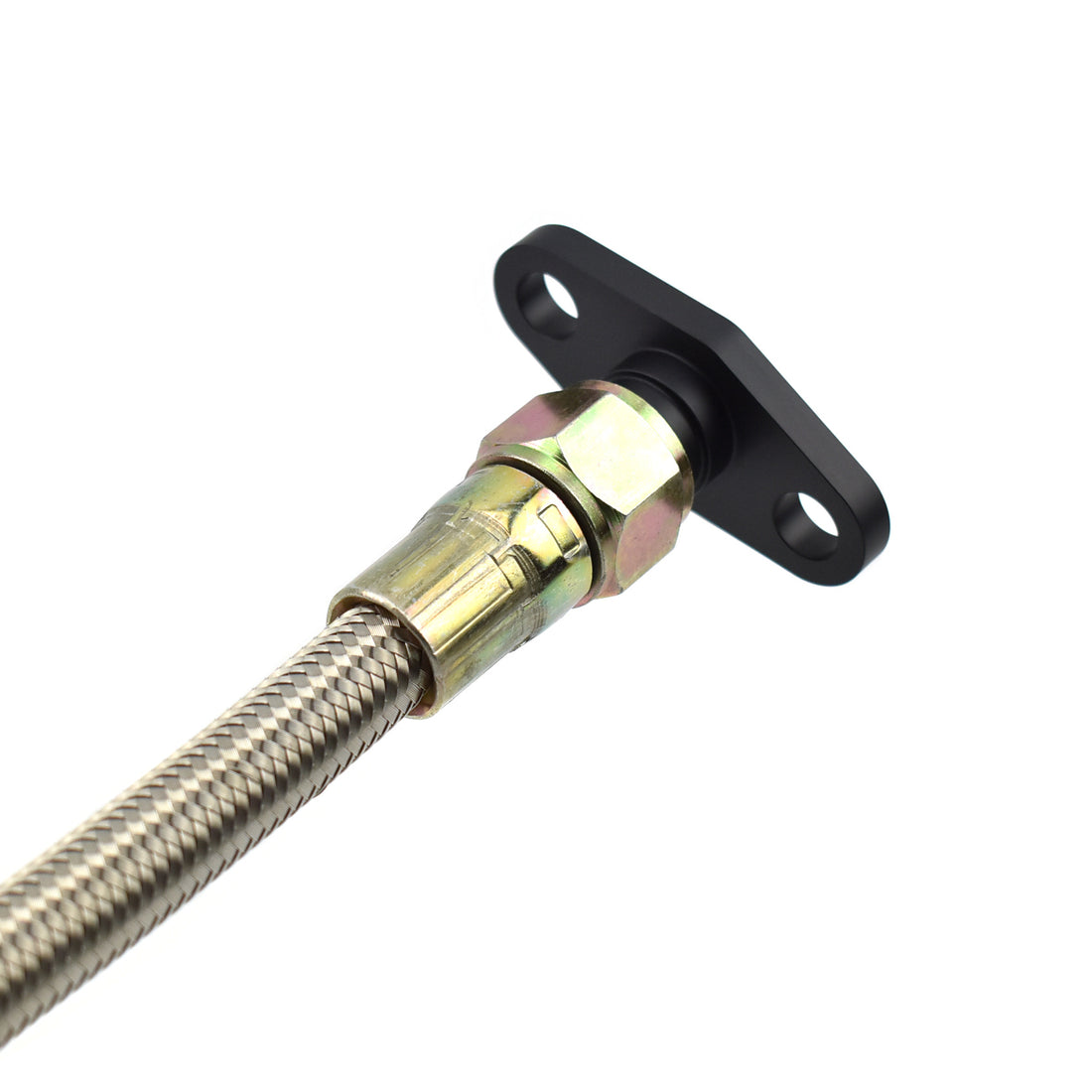

- -4 AN Oil feed flange (2.0mm restricted port)
- -10 AN 5/8" Oil drain line 20” long
- -10 AN Oil drain flange

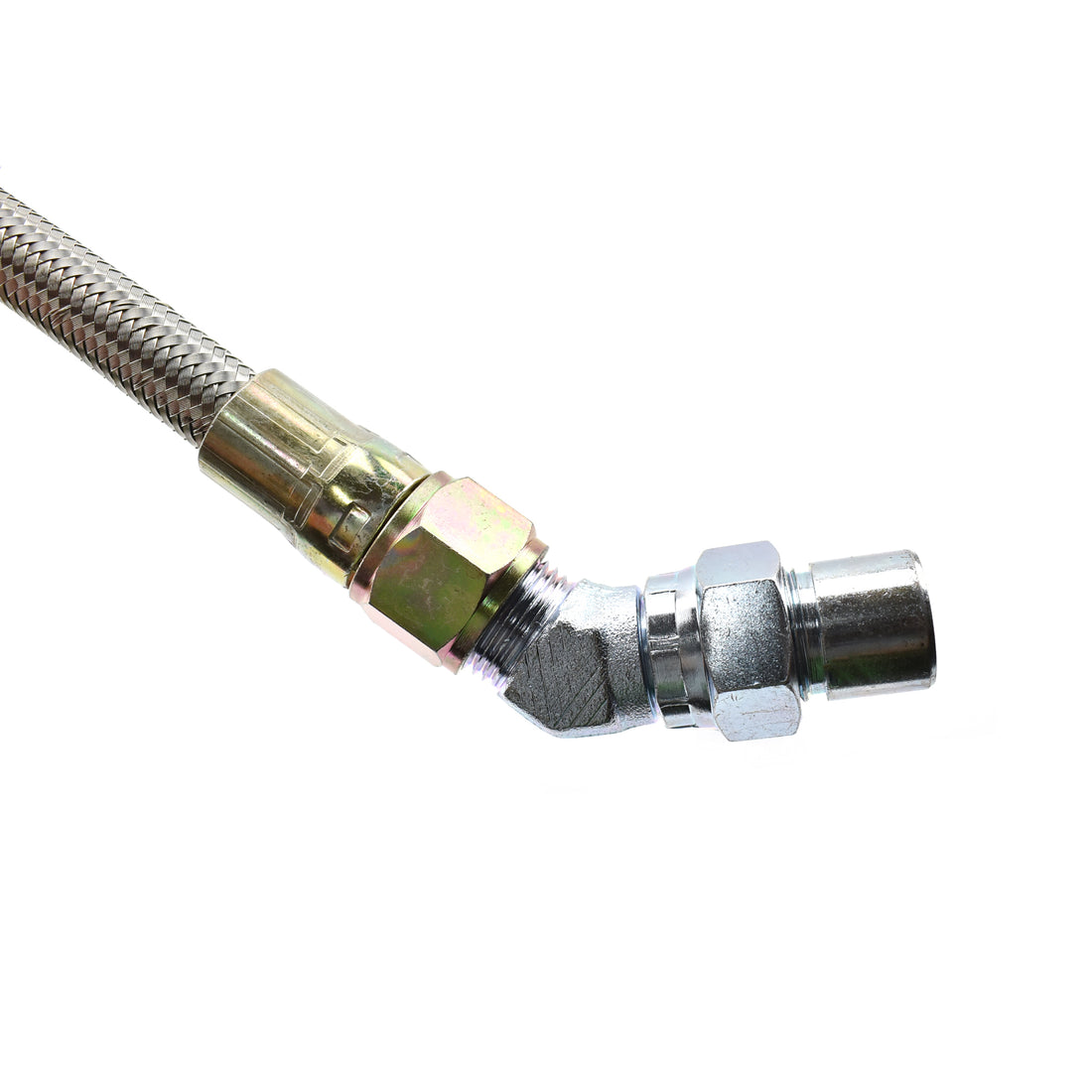

- -10 AN male to female swivel fitting 45 degree
- -10 AN Weld fitting

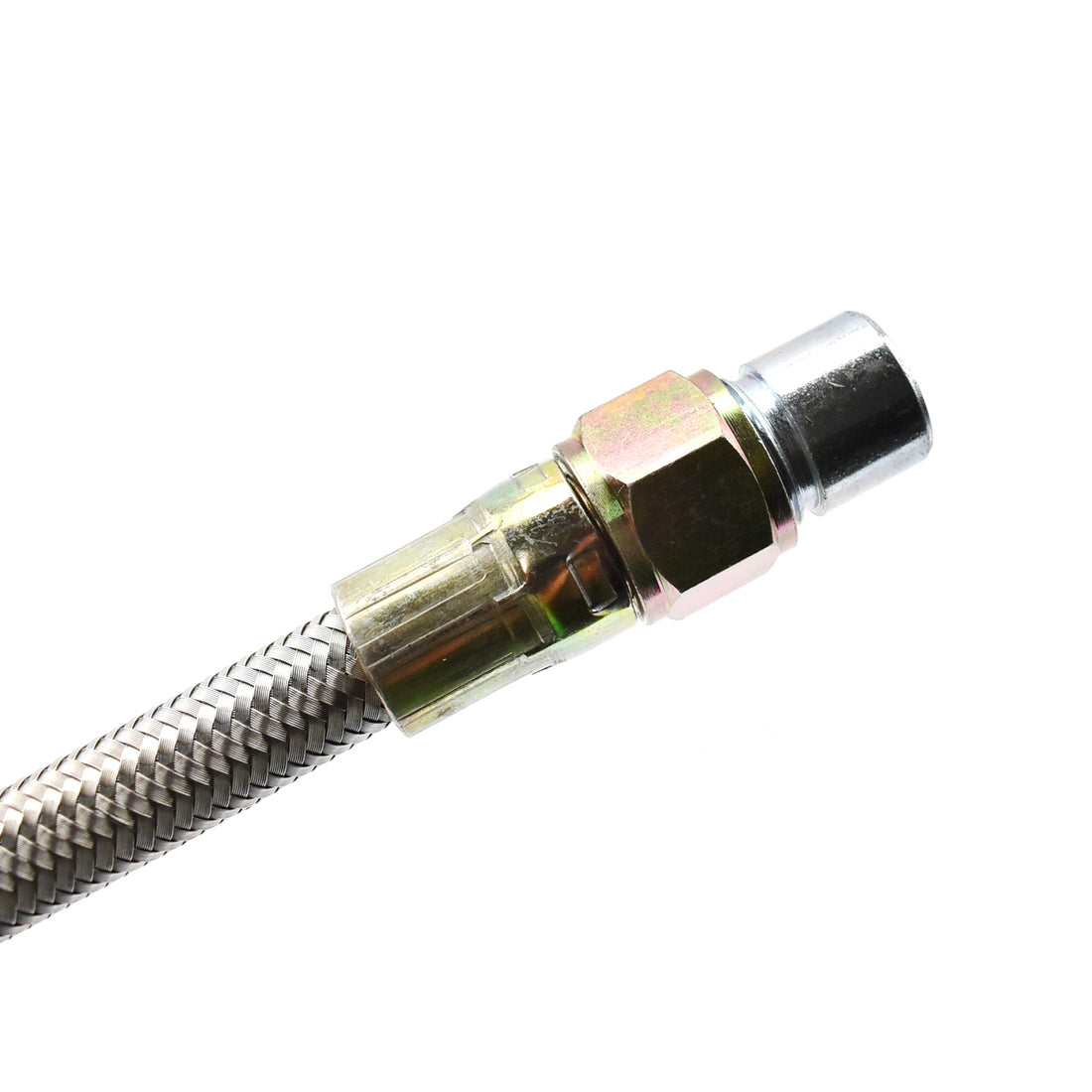

- -6 AN 3/8" Water lines 10" long
- -6 AN Water adapter fittings
- -6 AN to 3/8” barb fittings
- Oil feed flange gasket (1mm thickness)
- Oil drain flange gasket (1mm thickness)
- Copper crush washer (1mm thickness)
- Bolts
