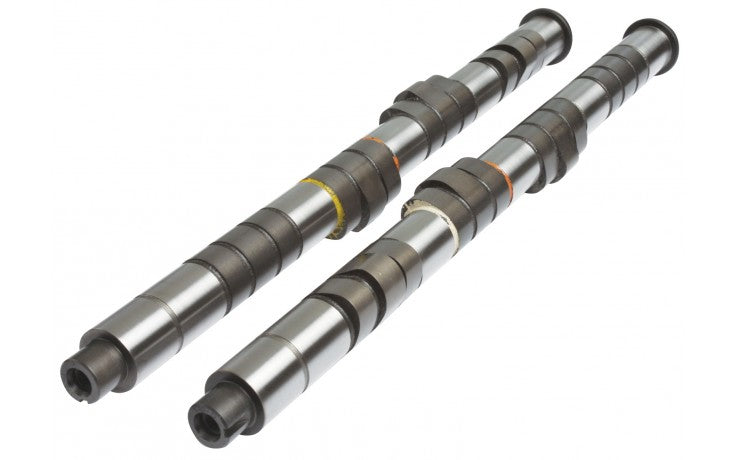

Special design camshafts for turbocharged H series engines in the 600-1000HP range. Primary/Intermediate lobe specifications are 250 & 254/250& 250 Degrees advertised duration. 7.00mm & 8.60mm/7.00mm &7.00 mm lift.
Engine Make: Engine Model: Part Number:
HONDA H22A VTEC H176-T
Valve Clearance: Intake: 0.30mm Set HOT at the VALVE
Exhaust: 0.30mm Set HOT at the VALVE
Cam Lift: Intake: 7.45mm Exhaust: 7.29mm
Rocker Ratio: Intake: 1.55 Exhaust: 1.55
Nett Valve Lift: Intake: 11.25mm Exhaust: 11.00mm
Advertised Duration @ 0.10mm Intake: 284 Exhaust: 274
Duration @ 1.00mm VALVE LIFT Intake: 254 Exhaust: 246
Timing @ 1.00mm VALVE LIFT IVO: 19 BTDC EVO: 58 BBDC
IVC: 55 ABDC EVC: 8 ATDC
Suggested Centre Lines: Intake: 108 Exhaust: 115
VALVE Lift @ TDC Intake: 3.07mm Exhaust: 1.84
