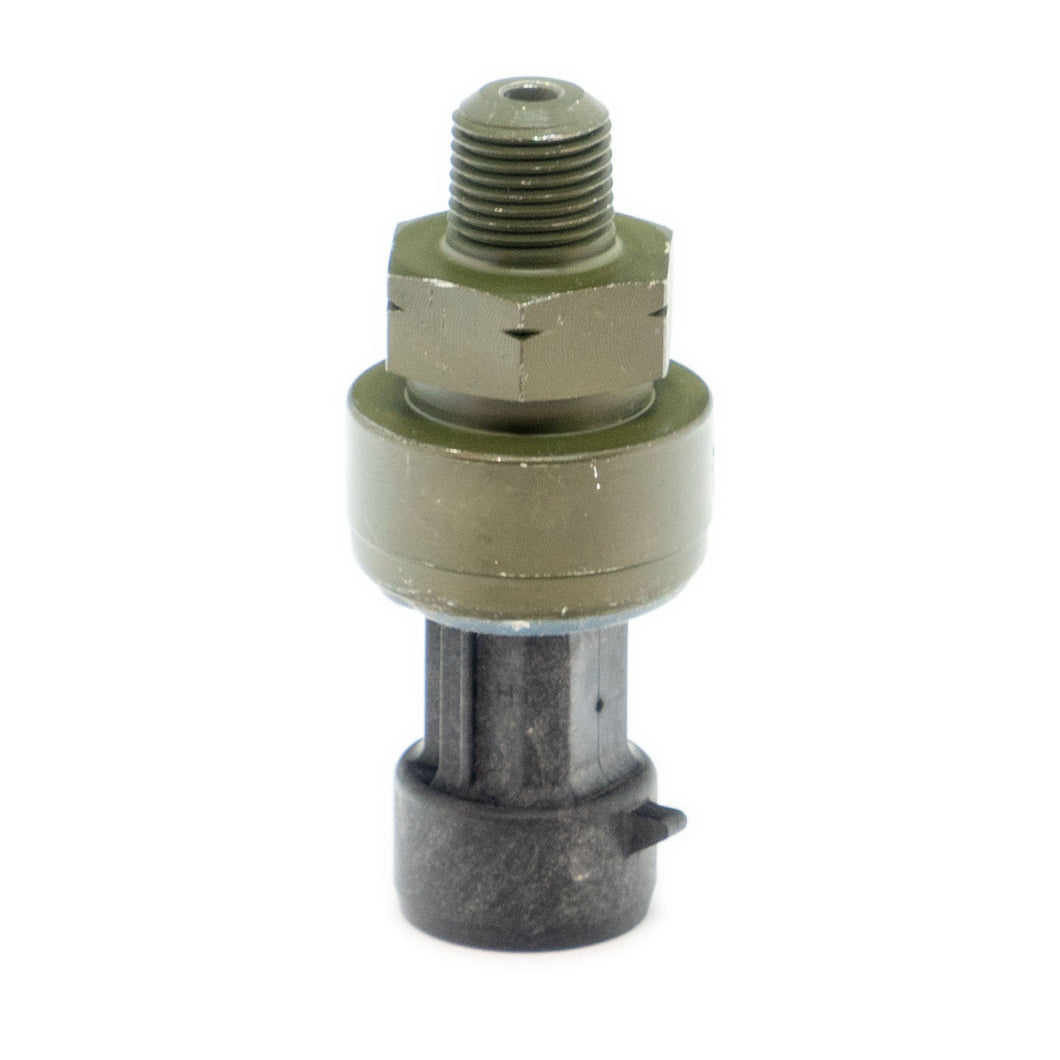

The Link 5 Bar MAP sensor reads up to 5 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 4.0 Bar (or 58psi) of boost pressure.
Includes Plug and Pins
Mount via weld on bund, tapped hole or remote with a barb
Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Link 5 Bar’
Further specifications and wiring diagram below
Calibration- 0kpa = 0.500v, 500kpa = 4.361v
