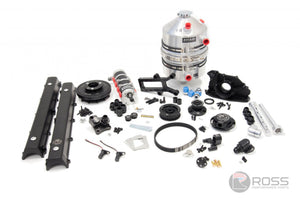

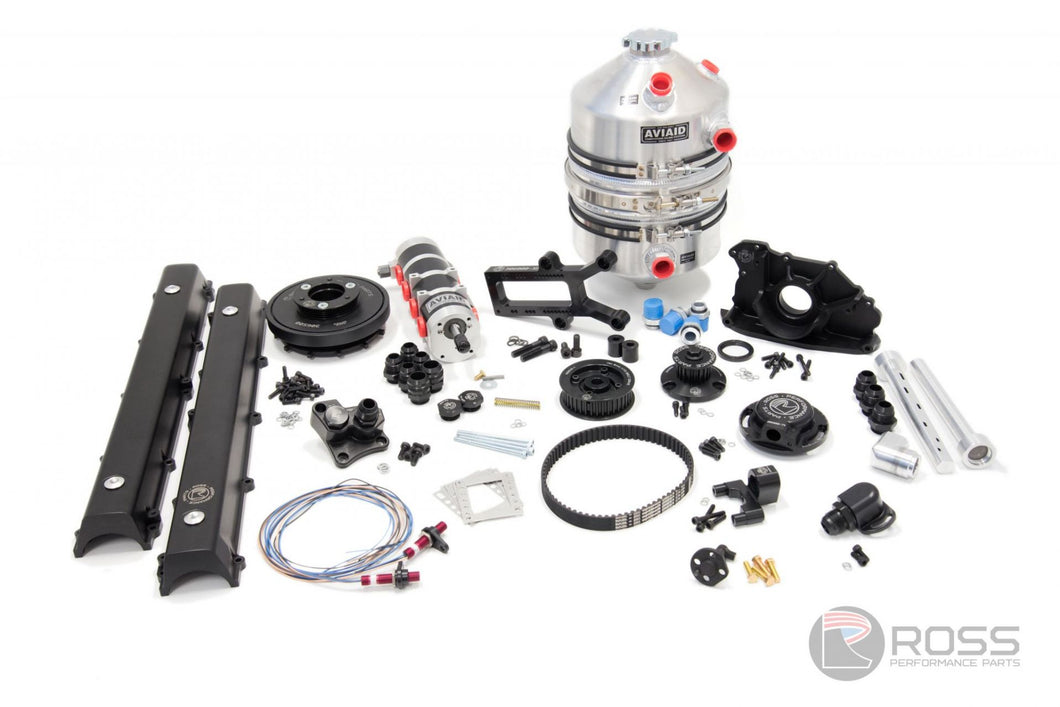

NISSAN RB 4WD 4 STAGE DRY SUMP OIL PUMP SYSTEM WITH CRANK & CAM TRIGGER SETUP
Kit includes the following:
- Nissan RB Race Series Harmonic Damper (306500, 306501, 306502 OR 306503)
- Nissan RB 12T Crank Trigger Disc to suit Race Series Harmonic Damper (306500-72-12T)
- Nissan RB Twin Cam Trigger (306000-73)
- Nissan RB Cam Angle Sensor Mount (306000-74)
- Nissan RB Crank Angle Sensor Mount (306000-75)
- GT101 Hall Effect Sensors (992GT101) OR Cherry Hall Effect Sensors (992CHERRY)
- Aviaid 4 Stage External Oil Pump – LH Mounting with 1 x 1.5″ Pressure and 3 x 1.75″ Suction (9950411-3845)
- Aviaid Dry Sump Tank – 3 Gallon Capacity (Aviaid Oil Tank 3GAL)
- Nissan RB (Twin Cam) Billet Cam Covers (Pair) (306000-14)
- Nissan RB26 Dry Sump Weld in Ports (306002-15)
- Nissan RB (Twin Cam) Head Drain Adaptor (306000-16)
- Nissan RB Oil Pump Left Hand Mounting Bracket (306000-18)
- Nissan RB Oil Return Adaptor (Dry Sump Conversion) (306000-25)
- Nissan RB Billet Oil Pump Blanking Plate (306000-26)
- Universal Dry Sump Drive Adaptor with 19T HTD Pulley (991000-19HTD)
- 38T HTD Oil Pump Pulley with Pulley Shields (991038)
- 8mm HTD Oil Pump Drive Belt – 576mm x 20mm (993576-8M-20)
This kit does not include a sump. Modification to your 4WD sump is required.
Note, to utilise this kit the air conditioning must be removed.
