Turbo oil feed and return lines for 1FZ N/A engine to turbo.
PRODUCT APPLICATION
Toyota 1FZ-FE N/A engine with Garrett T3 T4 turbo.

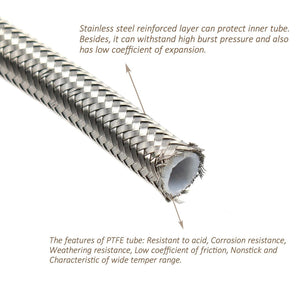

PRODUCT MATERIAL- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

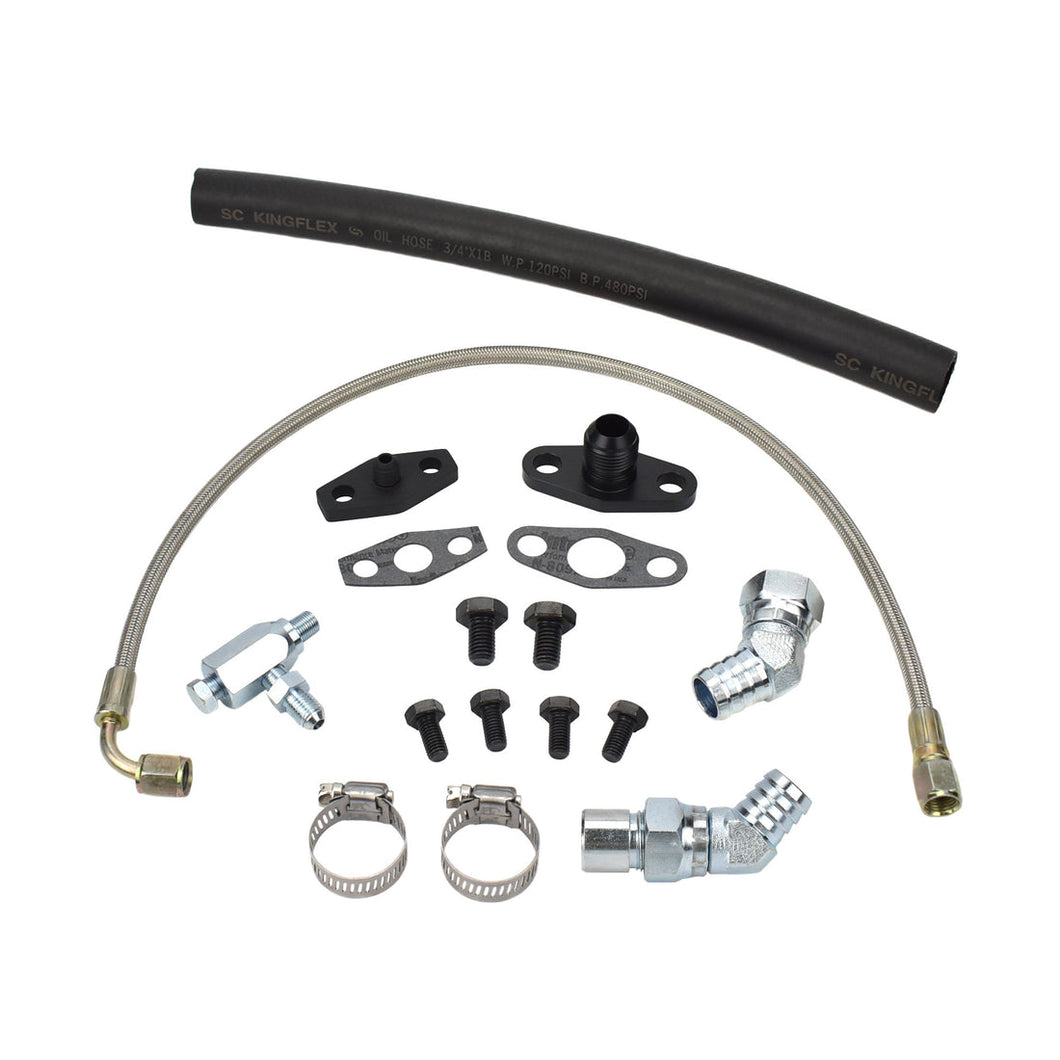

- -4 AN 1/4" Oil feed line
- -4 AN Oil feed flange(2.0mm restricted port)
- Oil feed flange gasket (1mm thickness)
- T-Fitting
- Oil drain hose
- Oil drain flange
- Oil drain flange gasket (1mm thickness)
- 45 degree elbow fitting
- Weld fitting
- Bolts
- Clamps
