Turbo oil feed and return lines for HONDA B/D engine to turbo.
PRODUCT APPLICATION
HONDA Civic B16 B18 D15 D16 engine with Precision PTE Turbochargers 5558, 5858, 5862, 6262, 6266, 6062, 6466, 6766, 7275, 6870, 6875, 7275, 7675, 7685, 8284, 8847, 8385
PRODUCT FEATURES

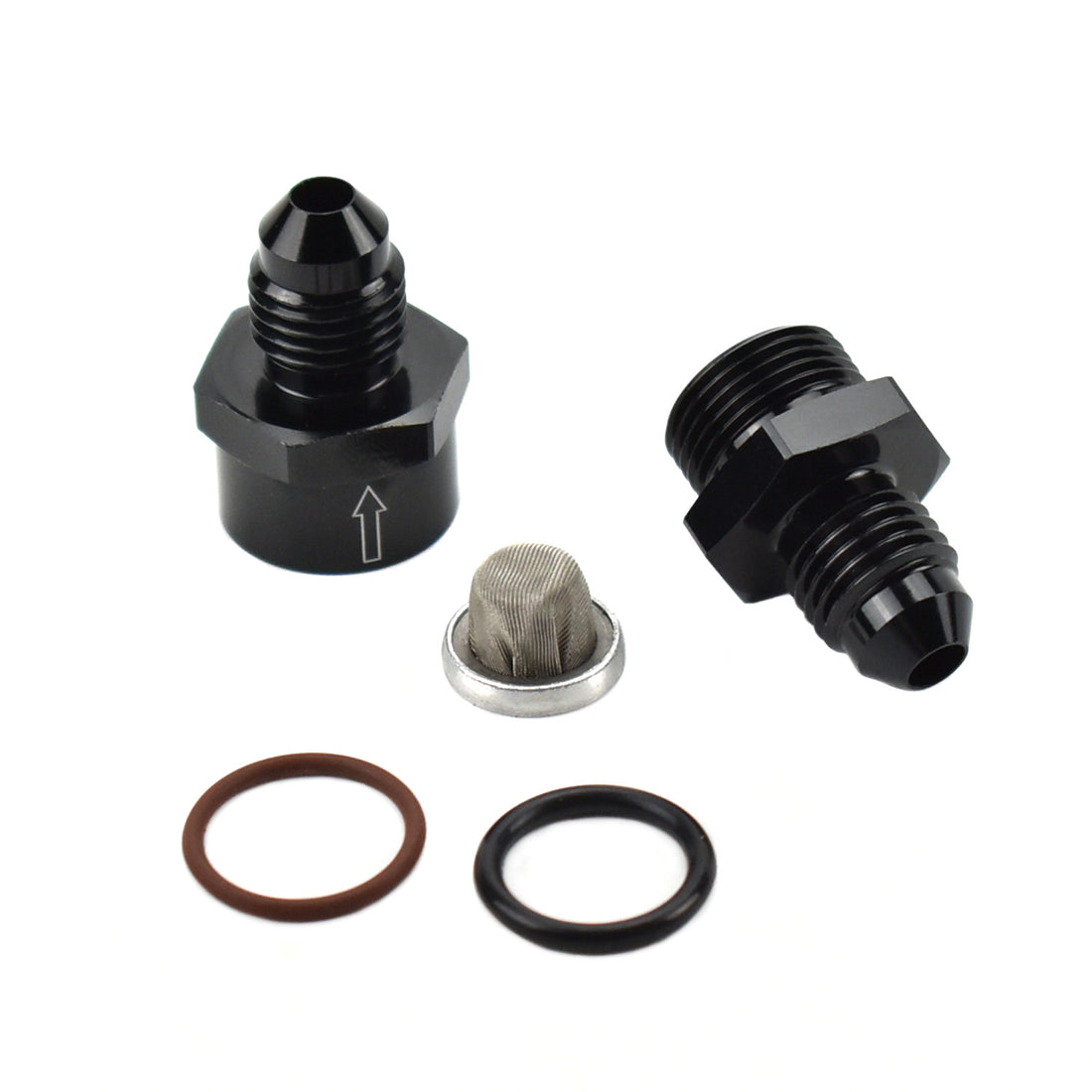

This product utilizes a 400 mesh "bucket" conical-shaped screen filter element which has more surface area to filter than competitors’ “flat” styled filters. The conical-style filter provides more area for trapping actual debris and debris particles will move down to the bottom outer edge of the filter which leaves the rest of the filter free from debris build up. So, will not compromising the screen’s flow rate nor negatively affects the oil pressure as it enters the feed line.
PRODUCT MATERIAL- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8
- -4 AN 1/4" Oil feed line
- -4 AN Oil feed fitting (no restricted port)
- T-Fitting

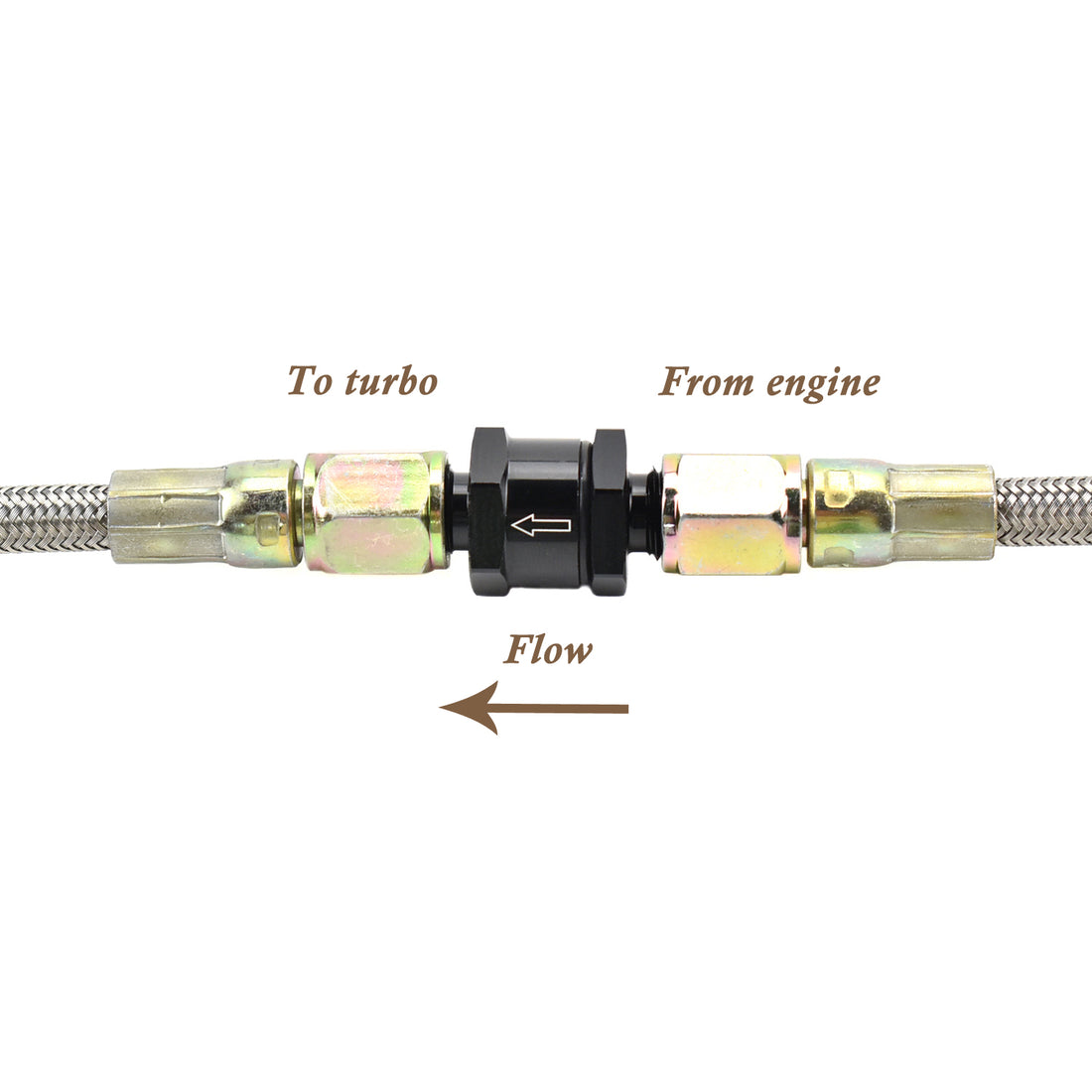

- -4 AN Oil filter
- Oil drain hose
- Oil drain flange
- Oil drain flange gasket (1mm thickness)
- 45 degree swivel fitting
- Barb fitting to oil pan
- Bolts
- Clamps
