Universal turbo oil & water lines and fittings.
PRODUCT APPLICATION
BorgWarner EFR Series Turbochargers includes 6258 6758 7163 7064 7670 8374 8474 9174 9274 9180 9280
NOTE: The EFR ball bearing system does not require much oil to function properly. Additional oil restrictions SHOULD NOT BE USED. The required restriction to throttle the oil flow to the ball bearings is already integrated into the bearing housing.
PRODUCT MATERIAL

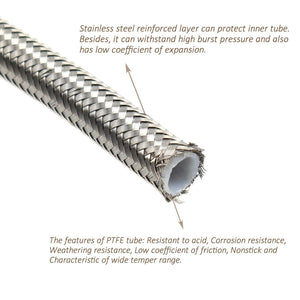

- Oil & water line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

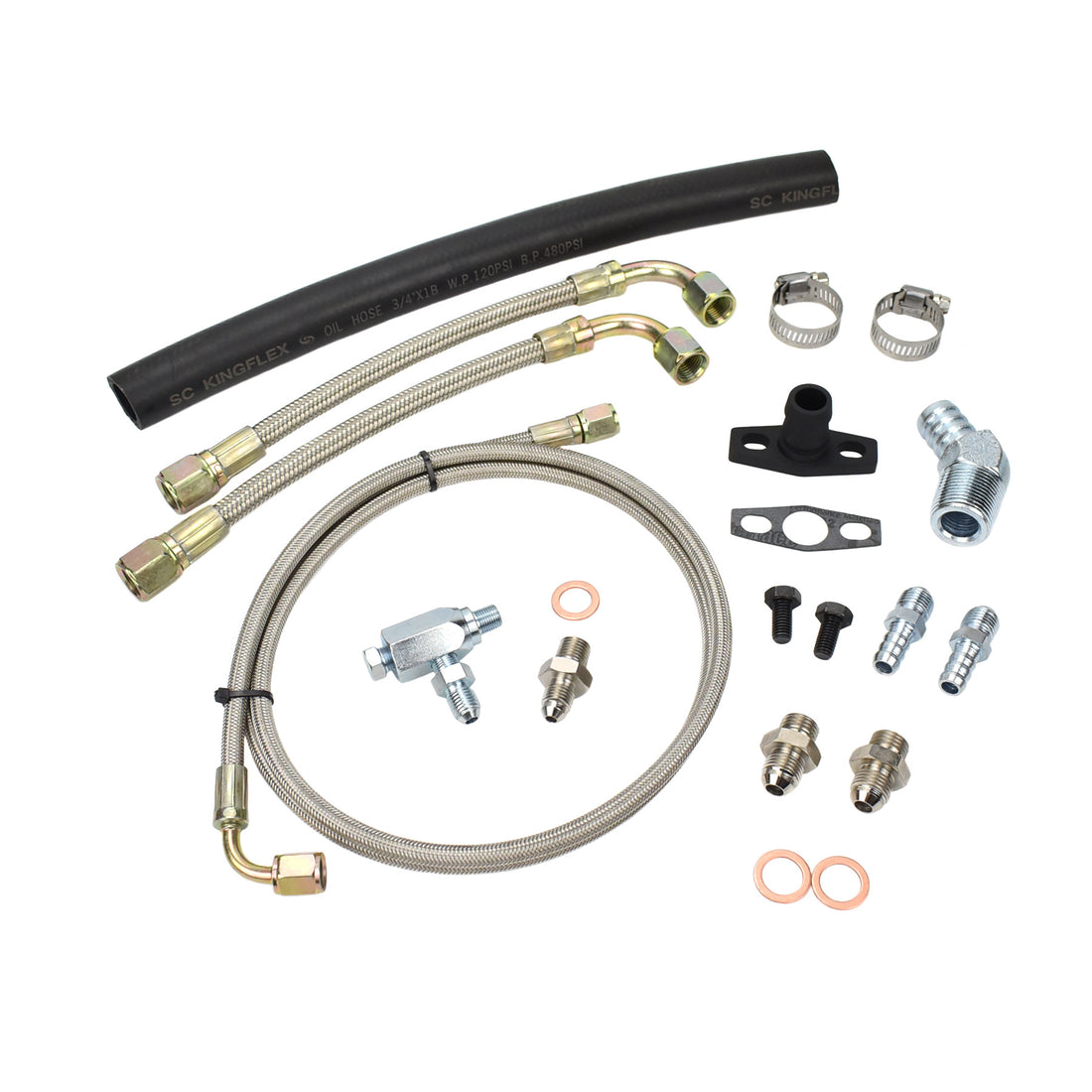

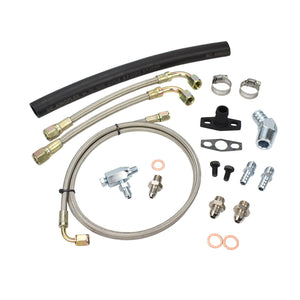

KIT INCLUDES

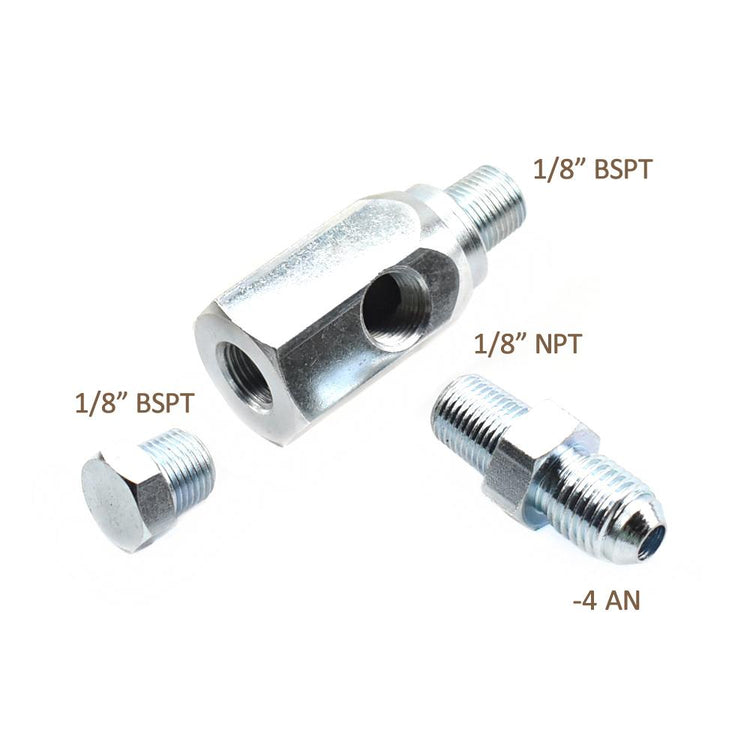

- T-fitting to suit engines with 1/8” BSPT oil pressure switch
- -4 AN 1/4" Oil feed line 104cm long
- -4 AN Oil feed fitting (no restricted port)
- 3/4" Oil drain hose 50cm long
- 3/4" Oil drain flange
- Oil drain flange gasket (1mm thickness)
- Bolts
- Clamps
- 3/4" Barb to 3/4" BSPT 45 degree elbow fitting
- -6 AN 3/8" Water lines 25cm long
- -6 AN Water adapter fitting
- -6 AN to 3/8" Barb fitting
- Copper crush washer (1mm thickness)
